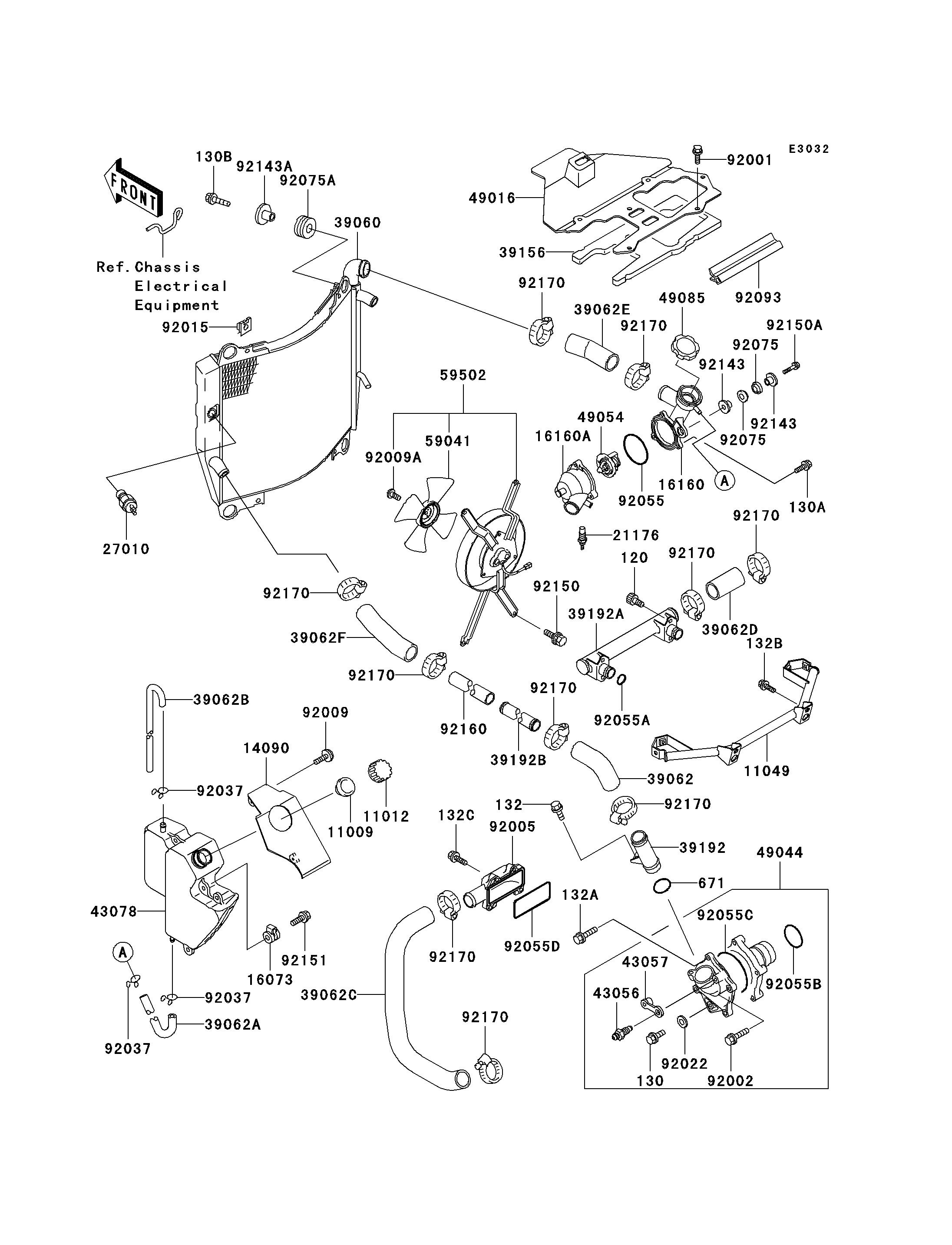

Parts Diagrams |
11009
11009
11012
11012
11049
11049
14090
14090
16073
16073
16160
16160
16160A
16160A
21176
21176
27010
27010
39060
39060
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39062F
39062F
39156
39156
39192
39192
39192A
39192A
39192B
39192B
43056
43056
43057
43057
43078
43078
49016
49016
49044
49044
49054
49054
49085
49085
59041
59041
59502
59502
92001
92001
92002
92002
92005
92005
92009
92009
92009A
92009A
92015
92015
92022
92022
92037
92037
92037
92037
92037
92037
92055
92055
92055A
92055A
120
120
130
130
130A
130A
130B
130B
132
132
132A
132A
132B
132B
132C
132C
671
671
92055B
92055B
92055C
92055C
92055D
92055D
92075
92075
92075
92075
92075A
92075A
92093
92093
92143
92143
92143
92143
92143A
92143A
92150
92150
92150A
92150A
92151
92151
92160
92160
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
CAP | 11012 | 11012-1084 | 1 | ||
BRACKET,RADIATOR | 11049 | 11049-1349 | 1 | ||
COVER,RESERVOIR | 14090 | 14090-1634 | 1 | ||
INSULATOR | 16073 | 16073-1107 | 2 | ||
BODY,THERMOSTAT CAP | 16160 | 16160-1252 | 1 | ||
BODY,THERMOSTAT CASE | 16160A | 16160-1253 | 1 | ||
SENSOR,WATER | 21176 | 21176-1054 | 1 | ||
SWITCH,FAN | 27010 | 27010-1202 | 1 | ||
RADIATOR | 39060 | 39060-1133 | 1 | ||
HOSE-COOLING,WATER PUMP | 39062 | 39062-1472 | 1 | ||
HOSE-COOLING,OVERFLOW | 39062A | 39062-1570 | 1 | ||
HOSE-COOLING,DRAIN | 39062B | 39062-1610 | 1 | ||
HOSE-COOLING,PUMP-CYLINDER | 39062C | 39062-1660 | 1 | ||
HOSE-COOLING,HEAD-THERMO | 39062D | 39062-1663 | 1 | ||
HOSE-COOLING,CAP-RADIATOR | 39062E | 39062-1664 | 1 | ||
HOSE-COOLING,RADIATOR | 39062F | 39062-1666 | 1 | ||
PAD,HEAD COVER | 39156 | 39156-1516 | 1 | ||
PIPE-WATER | 39192 | 39192-1041 | 1 | ||
PIPE-WATER | 39192A | 39192-1042 | 1 | ||
PIPE-WATER | 39192B | 39192-1047 | 1 | ||
BREATHER-BRAKE | 43056 | 43056-1051 | 1 | ||
CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
RESERVOIR | 43078 | 43078-1170 | 1 | ||
COVER-SEAL | 49016 | 49016-1185 | 1 | ||
PUMP-WATER | 49044 | 49044-1089 | 1 | ||
THERMOSTAT | 49054 | 49054-1067 | 1 | ||
CAP-ASSY-PRESSURE | 49085 | 49085-1067 | 1 | ||
FAN,FAN | 59041 | 59041-1057 | 1 | ||
FAN-ASSY | 59502 | 59502-1135 | 1 | ||
BOLT,6X16 | 92001 | 92001-1863 | 6 | ||
BOLT,6X22 | 92002 | 92002-1392 | 2 | ||
FITTING | 92005 | 92005-1316 | 1 | ||
SCREW,TAPPING,6X16 | 92009 | 92009-1436 | 2 | ||
SCREW,FAN | 92009A | 92009-1900 | 3 | ||
NUT | 92015 | 92015-1487 | 4 | ||
WASHER,6MM | 92022 | 92022-1976 | 1 | ||
CLAMP,TUBE | 92037 | 92037-147 | 3 | ||
RING-O,53.5X2.6 | 92055 | 92055-112 | 1 | ||
RING-O | 92055A | 92055-1282 | 2 | ||
BOLT-SOCKET,6X12 | 120 | 120P0612 | 4 | ||
BOLT-FLANGED,6X10,BLACK | 130 | 130C0610 | 1 | ||
BOLT-FLANGED | 130A | 130J0520 | 3 | ||
BOLT-FLANGED,6X25 | 130B | 130J0625 | 4 | ||
BOLT-FLANGED-SMALL | 132 | 132J0612 | 1 | ||
BOLT-FLANGED-SMALL | 132A | 132J0645 | 2 | ||
BOLT-FLANGED-SMALL,8X12 | 132B | 132J0812 | 2 | ||
BOLT-FLANGED-SMALL | 132C | 132Y0625 | 4 | ||
O RING,25MM | 671 | 671B2525 | 1 | ||
RING-O,33.2X2.4 | 92055B | 92055-1424 | 1 | ||
RING-O,WATER PUMP | 92055C | 92055-1495 | 1 | ||
RING-O | 92055D | 92055-1545 | 1 | ||
DAMPER,8MM | 92075 | 92075-1138 | 2 | ||
DAMPER | 92075A | 92075-1665 | 4 | ||
SEAL | 92093 | 92093-1276 | 2 | ||
COLLAR | 92143 | 92143-1057 | 2 | ||
COLLAR | 92143A | 92143-1063 | 4 | ||
BOLT,6X12 | 92150 | 92150-1186 | 4 | ||
BOLT,6X25 | 92150A | 92150-1829 | 1 | ||
BOLT,6X30 | 92151 | 92151-1086 | 2 | ||
DAMPER,WATER PIPE | 92160 | 92160-1297 | 1 | ||
CLAMP,COOLING HOSE | 92170 | 92170-1284 | 10 |
