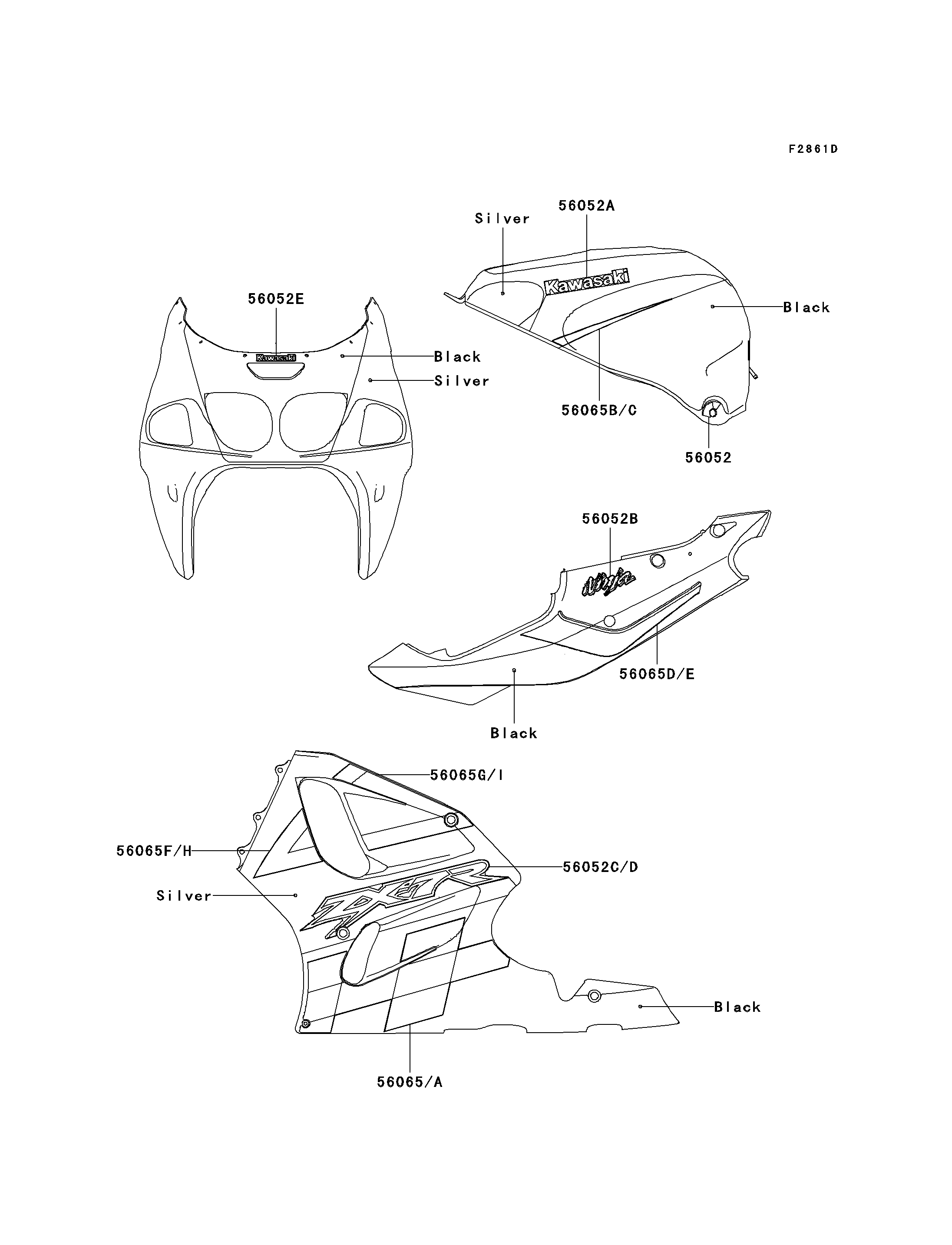

2002 Ninja® ZX™-7R - Decals(Silver/Black)(ZX750-P7)
56052
56052A
56052B
56052C
56052D
56052E
56065
56065A
56065B
56065C
56065D
56065E
56065F
56065G
56065H
56065I
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK | 56052 | 56052-1559 | 1 | ||
| MARK,FUEL TANK,KAWASAKI | 56052A | 56052-1563 | 2 | ||
| MARK,SIDE COVER,NINJA | 56052B | 56052-1564 | 2 | ||
| MARK,LWR COWLING,LH,ZX-7R | 56052C | 56052-1565 | 1 | ||
| MARK,LWR COWLING,RH,ZX-7R | 56052D | 56052-1566 | 1 | ||
| MARK,UPP COWLING,KAWASAKI | 56052E | 56052-1607 | 1 | ||
| PATTERN,LWR COWLING,LWR,LH | 56065 | 56065-1318 | 1 | ||
| PATTERN,LWR COWLING,LWR,RH | 56065A | 56065-1319 | 1 | ||
| PATTERN,FUEL TANK,LH | 56065B | 56065-1320 | 1 | ||
| PATTERN,FUEL TANK,RH | 56065C | 56065-1321 | 1 | ||
| PATTERN,SIDE COVER,LH | 56065D | 56065-1322 | 1 | ||
| PATTERN,SIDE COVER,RH | 56065E | 56065-1323 | 1 | ||
| PATTERN,LWR COWLING,UPP,FR,LH | 56065F | 56065-1324 | 1 | ||
| PATTERN,LWR COWLING,UPP,RR,LH | 56065G | 56065-1325 | 1 | ||
| PATTERN,LWR COWLING,UPP,FR,RH | 56065H | 56065-1326 | 1 | ||
| PATTERN,LWR COWLING,UPP,RR,RH | 56065I | 56065-1327 | 1 |
| MARK,FUEL TANK | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,NINJA | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWLING,LH,ZX-7R | |
| REF # | 56052C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWLING,RH,ZX-7R | |
| REF # | 56052D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,UPP COWLING,KAWASAKI | |
| REF # | 56052E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,LH | |
| REF # | 56065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,RH | |
| REF # | 56065A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56065B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56065C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56065D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56065E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,UPP,FR,LH | |
| REF # | 56065F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,UPP,RR,LH | |
| REF # | 56065G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,UPP,FR,RH | |
| REF # | 56065H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,UPP,RR,RH | |
| REF # | 56065I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
