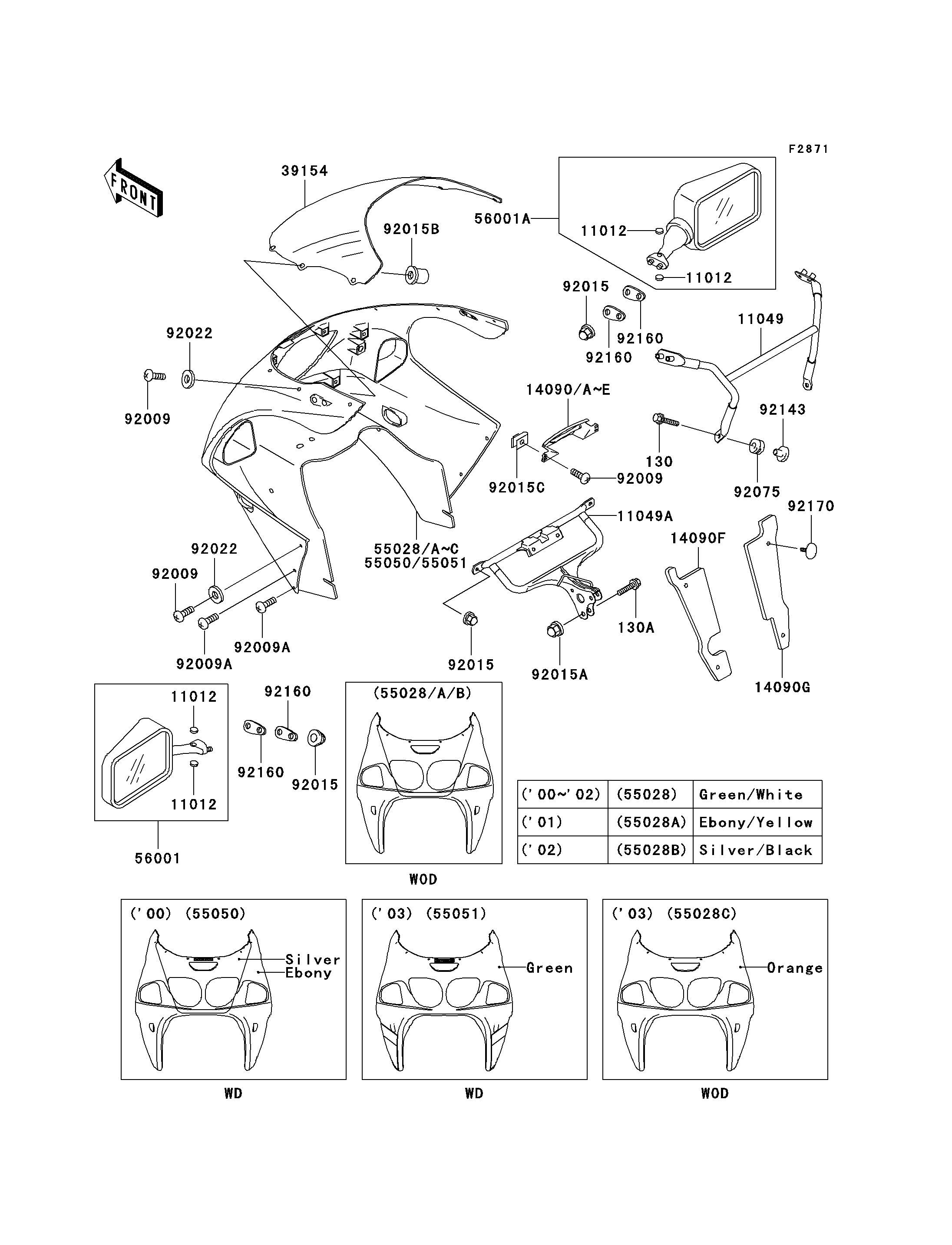

2001 Ninja® ZX™-7R - Cowling

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11012
11012
11012
11012
11049
11049A
14090B
14090C
14090F
14090G
39154
55028
55028A
56001
56001A
92009
92009
92009
92009A
92009A
92015
92015
92015
92015A
92015B
92015C
92022
92022
92075
92143
92160
92160
92160
92160
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130J0625 2
BOLT-FLANGED,8X30 130A 130J0830 2
CAP,MIRROR 11012 11012-1818 4
BRACKET,MIRROR 11049 11049-1327 1
BRACKET,UPP COWLING 11049A 11049-1328 1
COVER,POSITION LAMP,EBONY 14090B 14090-1404-H8 1
COVER,POSITION LAMP,WHITE 14090C 14090-1404-R1 1
COVER,HEAT GUARD,LH 14090F 14090-1649 1
COVER,HEAT GUARD,RH 14090G 14090-1650 1
WINDSHIELD 39154 39154-1132 1
COWLING,UPP,GREEN/WHITE 55028 55028-1343-CK 1
COWLING,UPP,EBONY/YELLOW 55028A 55028-1343-QB 1
MIRROR-ASSY,LH,EBONY 56001 56001-1376-6C 1
MIRROR-ASSY,RH,EBONY 56001A 56001-1377-6C 1
SCREW,5X16,BLACK 92009 92009-1654 12
SCREW,5X20,BLACK 92009A 92009-1656 4
NUT,CAP,6MM,BLACK 92015 92015-1170 6
NUT,CAP,8MM,BLACK 92015A 92015-1174 2
NUT,WELL,5MM 92015B 92015-1757 8
NUT,5MM 92015C 92015-1798 2
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 10
DAMPER,RUBBER 92075 92075-1123 2
COLLAR 92143 92143-1353 2
DAMPER,MIRROR 92160 92160-1089 4
CLAMP 92170 92170-1442 4
