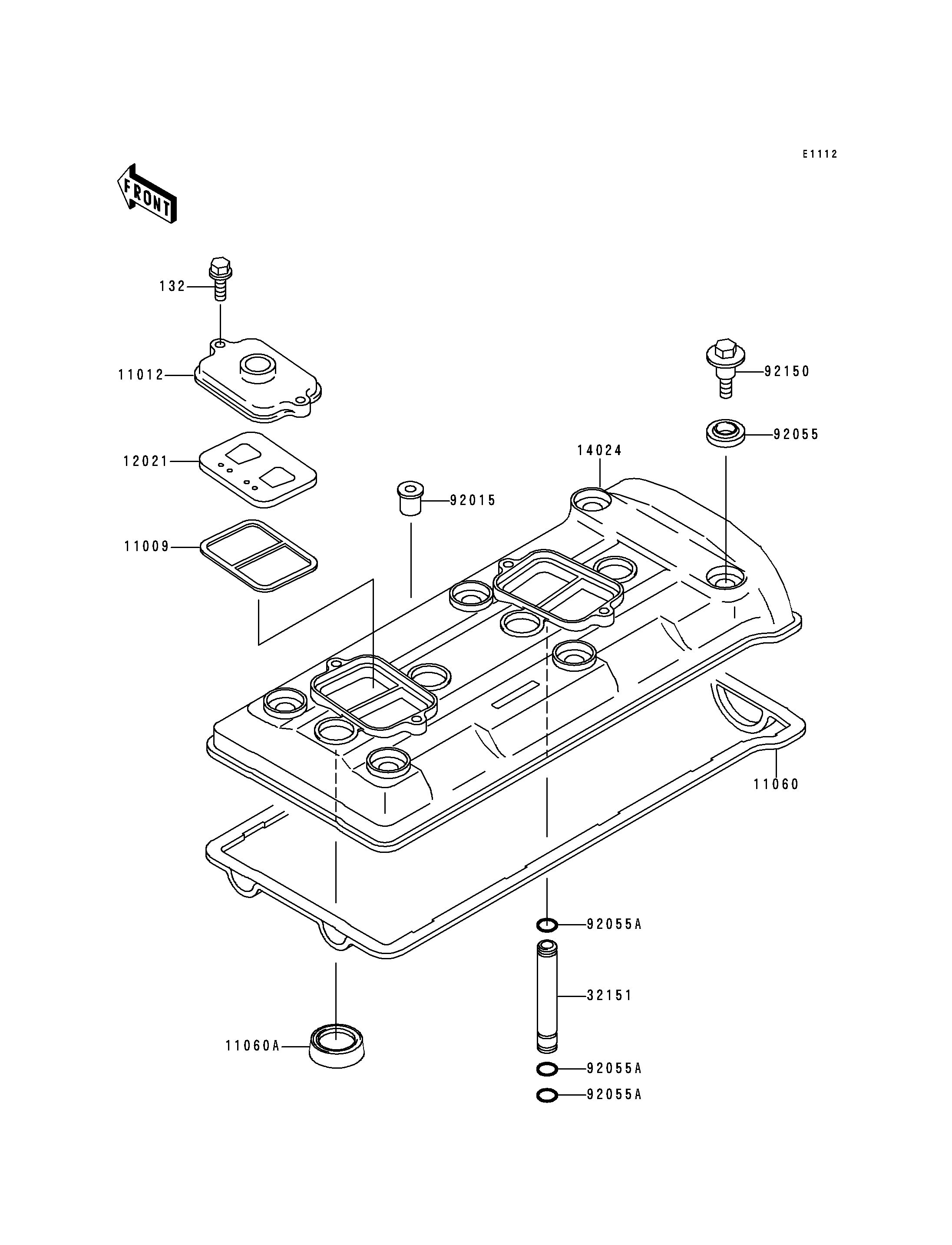

132
11009
11012
11060
11060A
12021
14024
32151
92015
92055
92055A
92055A
92055A
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0620 4
GASKET,REED VALVE 11009 11009-1857 2
CAP,REED VALVE 11012 11012-1758 2
GASKET,HEAD COVER 11060 11060-1076 1
GASKET,PLUG 11060A 11060-1077 4
VALVE-ASSY-REED 12021 12021-1053 2
COVER,HEAD 14024 14024-1996 1
PIPE 32151 32151-1608 4
NUT 92015 92015-1700 1
RING-O,HEAD COVER BOLT 92055 92055-1352 6
RING-O,9X1.5 92055A 92055-1509 12
BOLT,HEAD COVER 92150 92150-1447 6
