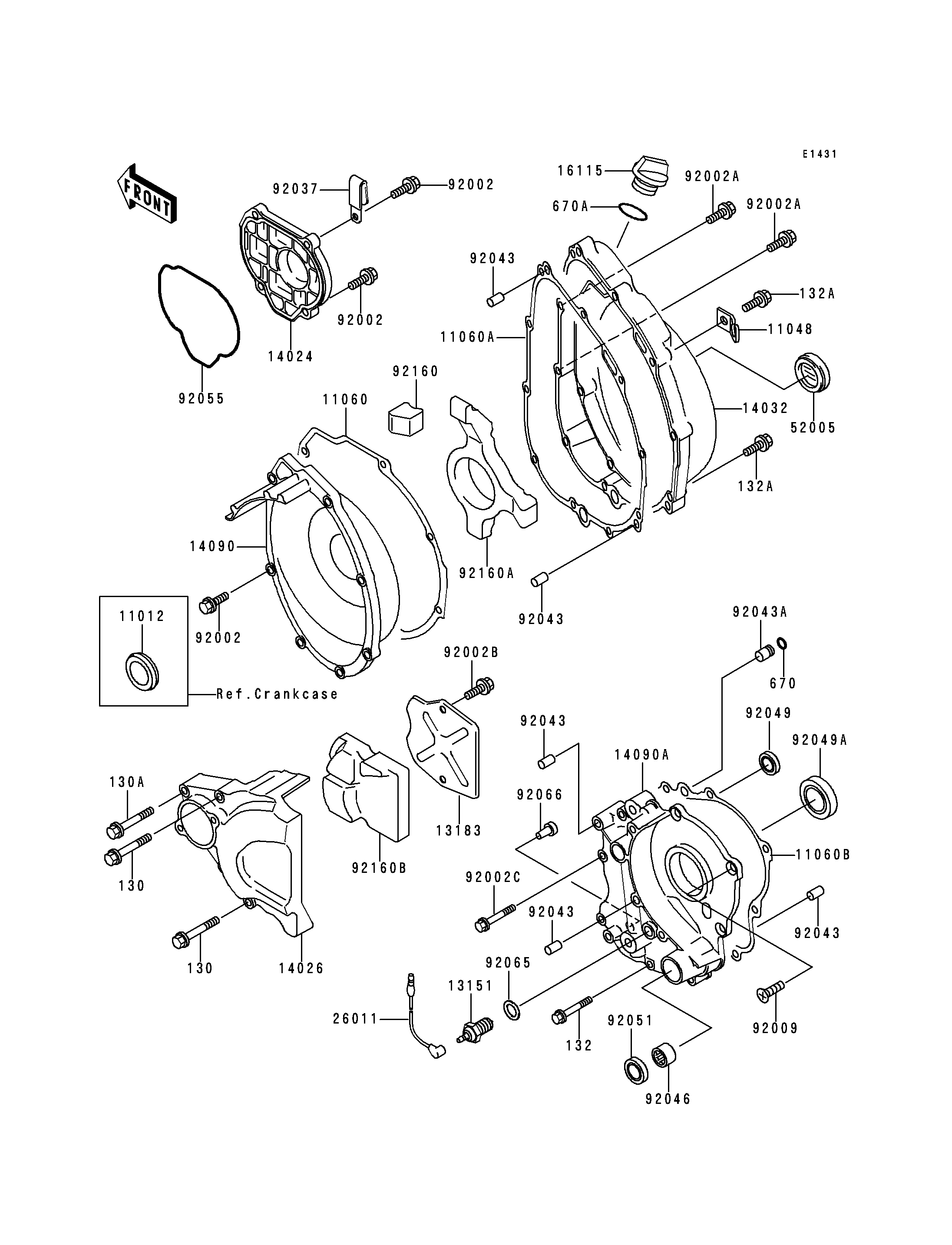

1994 Ninja® ZX™-9R - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
132
132A
132A
670
670A
11012
11048
11060
11060A
11060B
13151
13183
14024
14026
14032
14090
14090A
16115
26011
52005
92002
92002
92002
92002A
92002A
92002B
92002C
92009
92037
92043
92043
92043
92043
92043
92043A
92046
92049
92049A
92051
92055
92065
92066
92160
92160A
92160B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X35 130 130J0635 2
BOLT-FLANGED,6X45,BLACK 130A 130J0645 2
BOLT-FLANGED-SMALL 132 132E0630 2
BOLT-FLANGED-SMALL 132A 132J0630 8
O RING,5MM 670 670B1505 1
O RING,20MM 670A 670B2020 1
CAP,LH,RCA378 11012 11012-1540 1
BRACKET,THROTTLE ADJUST SCREW 11048 11048-1798 1
GASKET,BREATHER COVER 11060 11060-1356 1
GASKET,CLUTCH COVER 11060A 11060-1623 1
GASKET,TRANSMISSION COVER 11060B 11060-1660 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 1
PLATE,CHAIN COVER 13183 13183-1717 1
COVER,PULSING 14024 14024-1998 1
COVER-CHAIN 14026 14026-1207 1
COVER-CLUTCH 14032 14032-1367 1
COVER,BREATHER 14090 14090-1052 1
COVER,TRANSMISSION 14090A 14090-1673 1
CAP-OIL FILLER 16115 16115-1053 1
WIRE-LEAD 26011 26011-1510 1
GAUGE,OIL LEVEL 52005 52005-1057 1
BOLT,6X20 92002 92002-1343 11
BOLT,6X25 92002A 92002-1344 2
BOLT,6X10 92002B 92002-1449 2
BOLT,6X30 92002C 92002-1622 3
SCREW,6X16 92009 92009-1360 3
CLAMP,WIRING HARNESS 92037 92037-1877 1
PIN,6.2X8X14 92043 92043-1263 5
PIN 92043A 92043-1456 1
BEARING-NEEDLE,HK1312 92046 92046-1148 1
SEAL-OIL,SD-8187 92049 92049-1017 1
SEAL-OIL,TC32488 92049A 92049-1361 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O,PULSING COVER 92055 92055-1494 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
PLUG 92066 92066-1412 1
DAMPER,SOUND ARRESTER 92160 92160-1282 1
DAMPER,SOUND ARRESTER 92160A 92160-1465 1
DAMPER,CHAIN COVER 92160B 92160-1484 1
