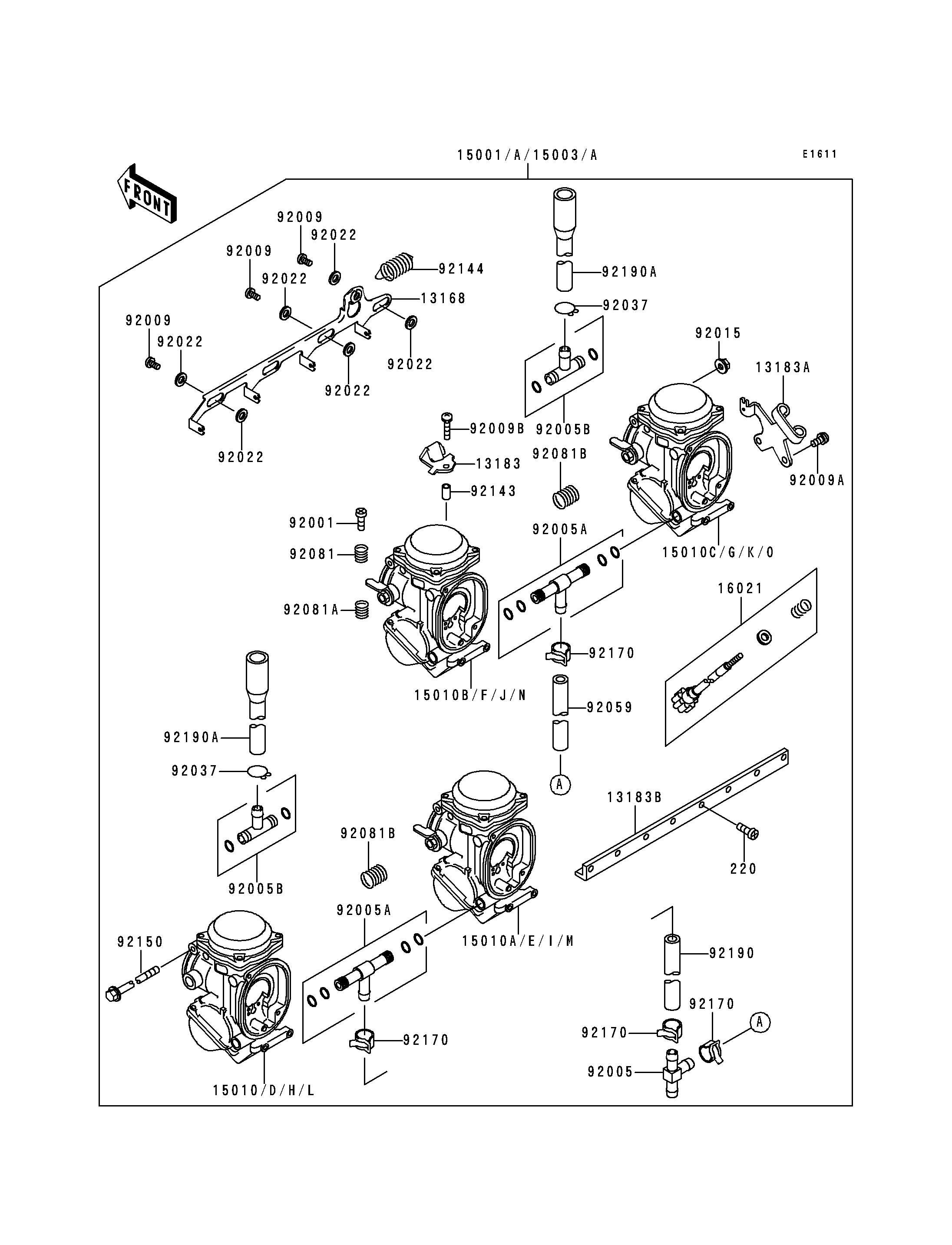

1994 Ninja® ZX™-9R - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
13168
13168
13183
13183
13183A
13183A
13183B
13183B
220
220
16021
16021
92001
92001
92005
92005
92005A
92005A
92005A
92005A
92005B
92005B
92005B
92005B
92009
92009
92009
92009
92009
92009
92009A
92009A
92009B
92009B
92015
92015
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92037
92037
92037
92037
92059
92059
92081
92081
92081A
92081A
92081B
92081B
92081B
92081B
92143
92143
92144
92144
92150
92150
92170
92170
92170
92170
92170
92170
92170
92170
92190
92190
92190A
92190A
92190A
92190A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER,STARTER 13168 13168-1483 1
PLATE,STARTER CABLE 13183 13183-1592 1
PLATE,THROTTLE CABLE 13183A 13183-1610 1
PLATE,CARBURETOR,LWR 13183B 13183-1727 1
SCREW-PAN-CROS,5X14 220 220D0514 8
SCREW-THROTTLE STOP 16021 16021-1181 1
BOLT,THROTTLE ADJUST 92001 92001-1998 3
FITTING,T-TYPE 92005 92005-1272 1
FITTING 92005A 92005-1294 2
FITTING 92005B 92005-1306 2
SCREW 92009 92009-1262 3
SCREW 92009A 92009-1597 1
SCREW,4X18 92009B 92009-1632 1
NUT,FLANGED,5MM 92015 92015-1259 1
WASHER,6.1X11X0.8,POLYACETAL 92022 92022-1199 6
CLAMP,TUBE 92037 92037-1531 2
TUBE,FUEL,7.3X12.5X200 92059 92059-1029 1
SPRING,THROTTLE ADJUST UPP 92081 92081-1620 3
SPRING,THROTTLE ADJUST LWR 92081A 92081-1621 3
SPRING,THROTTLE ADJUST CNT 92081B 92081-1622 2
COLLAR,4X5.2X9.6 92143 92143-1265 1
SPRING,STARTER LEVER 92144 92144-1547 1
BOLT,5X305 92150 92150-1211 1
CLAMP,TUBE 92170 92170-1051 4
TUBE,7.3X12.5X80 92190 92190-1053 1
TUBE,L=100 92190A 92190-1567 2
CARBURETOR-ASSY 15001 15001-1894 1
CARBURETOR-ASSY 15001A 15001-1908 1
CARBURETOR,LH,OUTSIDE 15010 15010-1736 1
CARBURETOR,LH,INSIDE 15010A 15010-1737 1
CARBURETOR,RH,INSIDE 15010B 15010-1738 1
CARBURETOR,RH,OUTSIDE 15010C 15010-1739 1
CARBURETOR,LH,OUTSIDE 15010D 15010-1740 1
CARBURETOR,LH,INSIDE 15010E 15010-1741 1
CARBURETOR,RH,INSIDE 15010F 15010-1742 1
CARBURETOR,RH,OUTSIDE 15010G 15010-1743 1
