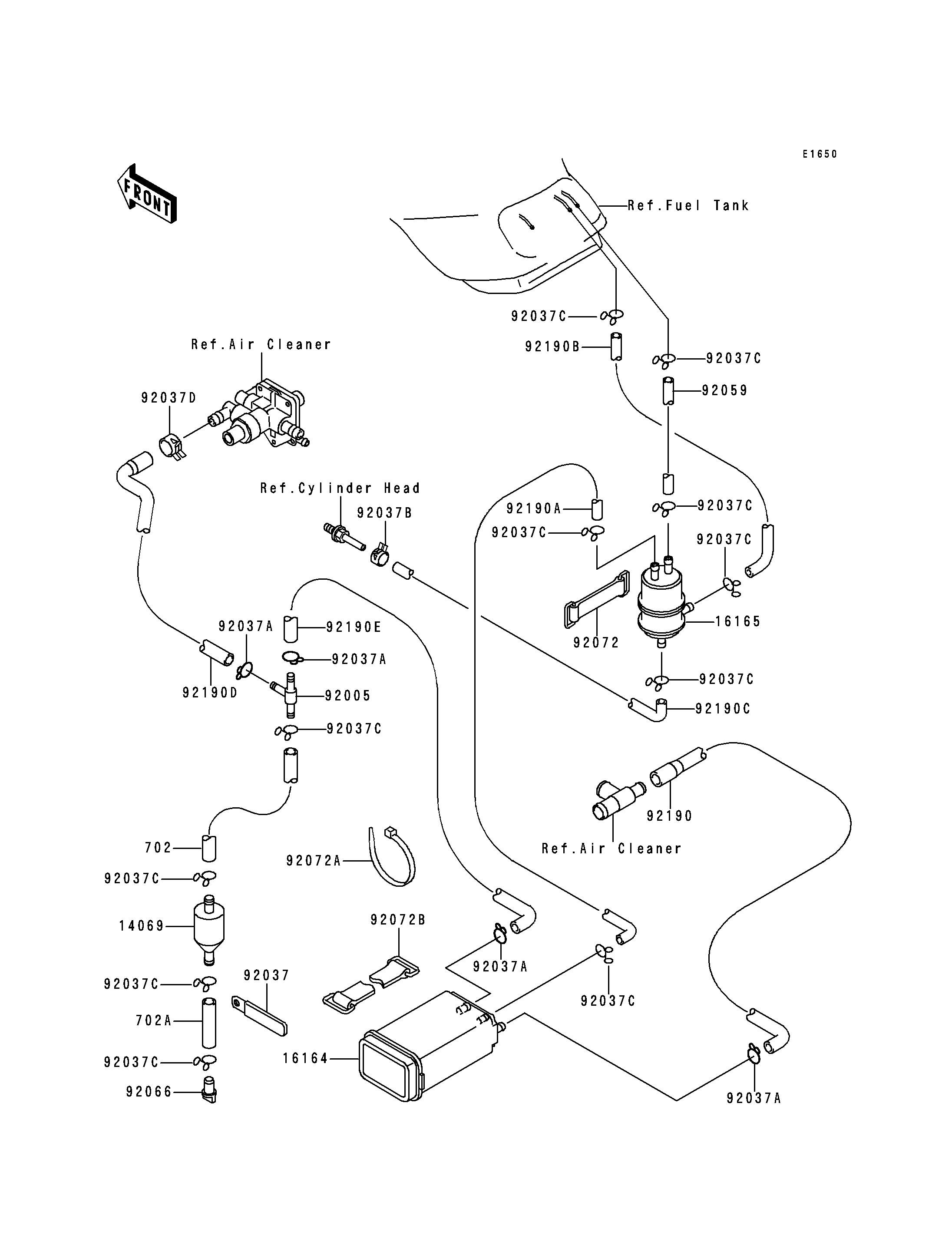

1994 Ninja® ZX™-9R - Fuel Evaporative System
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TUBE-RUBBER | 702 | 702A07230 | 1 | ||
| TUBE-RUBBER | 702A | 702A0740 | 1 | ||
| BREATHER | 14069 | 14069-1051 | 1 | ||
| CANISTER | 16164 | 16164-1052 | 1 | ||
| SEPARATOR | 16165 | 16165-1001 | 1 | ||
| FITTING,T-TYPE | 92005 | 92005-1119 | 1 | ||
| CLAMP,WIRING HARNESS,L=60 | 92037 | 92037-1069 | 1 | ||
| CLAMP,HOSE | 92037A | 92037-1104 | 4 | ||
| CLAMP,TUBE | 92037B | 92037-1461 | 1 | ||
| CLAMP,TUBE | 92037C | 92037-147 | 11 | ||
| CLAMP | 92037D | 92037-2082 | 1 | ||
| TUBE,5X10X220,BLUE | 92059 | 92059-1525 | 1 | ||
| PLUG,DRAIN | 92066 | 92066-1211 | 1 | ||
| BAND,L=50 | 92072 | 92072-066 | 1 | ||
| BAND,L=185 | 92072A | 92072-1195 | 2 | ||
| BAND,L=200 | 92072B | 92072-1253 | 1 | ||
| TUBE,CANISTER-FITTING,GREEN | 92190 | 92190-1520 | 1 | ||
| TUBE,SEPARATOR-CANISTER,BLUE | 92190A | 92190-1521 | 1 | ||
| TUBE,TANK-SEPARATOR,RED | 92190B | 92190-1522 | 1 | ||
| TUBE,SEPARATOR-HOLDER,WHITE | 92190C | 92190-1523 | 1 | ||
| TUBE,VALVE-3WAY,YELLOW | 92190D | 92190-1524 | 1 | ||
| TUBE,3WAY-CANISTER,YELLOW | 92190E | 92190-1525 | 1 |
