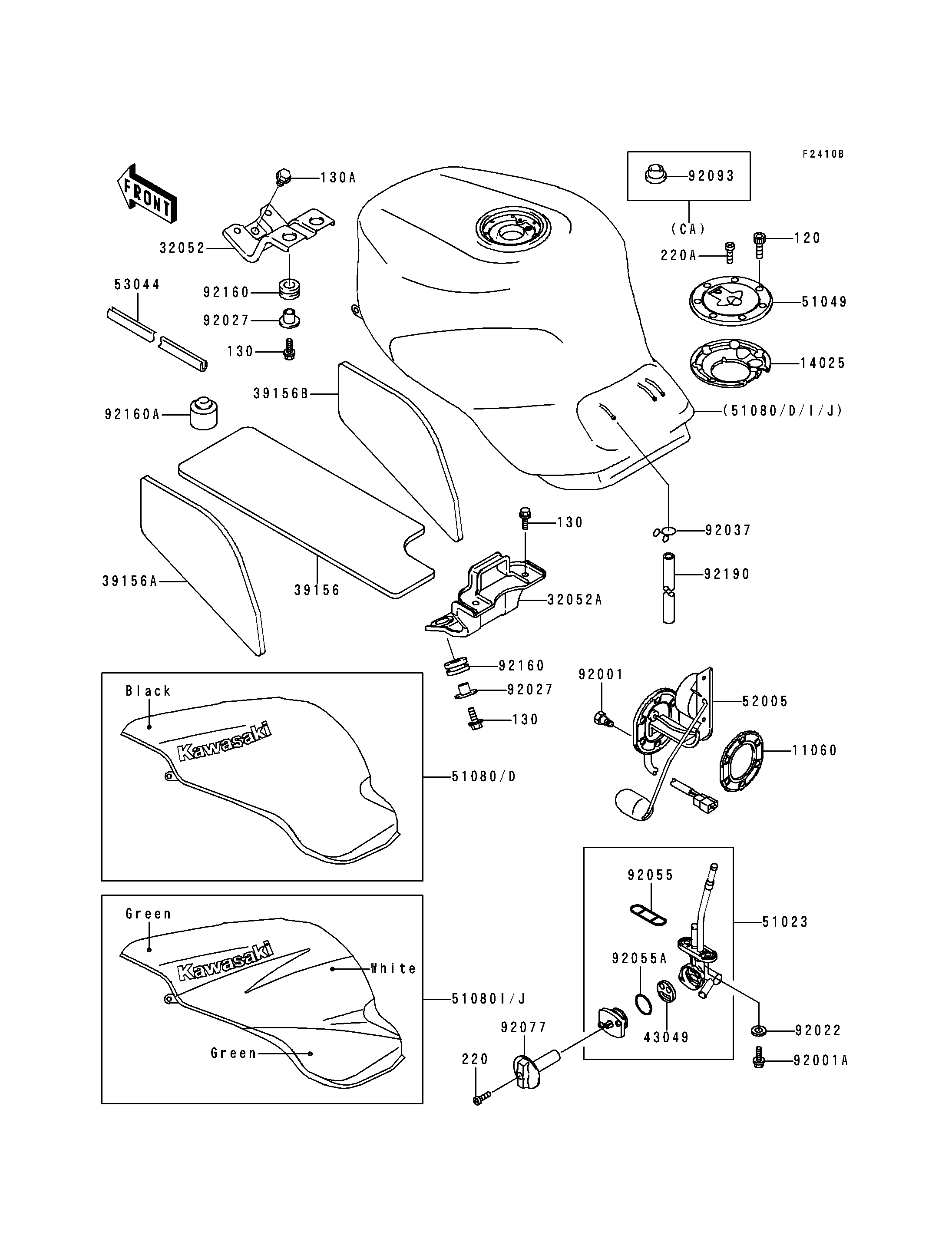

1996 Ninja® ZX™-9R - Fuel Tank(ZX900-B3)
11060
11060
14025
14025
32052
32052
32052A
32052A
39156
39156
39156A
39156A
39156B
39156B
43049
43049
51023
51023
51049
51049
52005
52005
53044
53044
92001
92001
92001A
92001A
92022
92022
92027
92027
92027
92027
120
120
130
130
130
130
130
130
130A
130A
220
220
220A
220A
92037
92037
92055
92055
92055A
92055A
92077
92077
92160
92160
92160
92160
92160A
92160A
92190
92190
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FUEL GAUGE | 11060 | 11060-1337 | 1 | ||
COVER,TANK CAP | 14025 | 14025-1913 | 1 | ||
BRACKET-TANK,FR | 32052 | 32052-1386 | 1 | ||
BRACKET-TANK,RR | 32052A | 32052-1387 | 1 | ||
PAD,FUEL TANK,FR | 39156 | 39156-1392 | 1 | ||
PAD,FUEL TANK,LH | 39156A | 39156-1394 | 1 | ||
PAD,FUEL TANK,RH | 39156B | 39156-1395 | 1 | ||
PACKING,TAP VALVE | 43049 | 43049-1066 | 1 | ||
TAP-ASSY,FUEL | 51023 | 51023-1213 | 1 | ||
CAP-TANK,FUEL | 51049 | 51049-1091 | 1 | ||
GAUGE,FUEL | 52005 | 52005-1108 | 1 | ||
TRIM,WINDSHIELD | 53044 | 53044-1120 | 2 | ||
BOLT,FUEL GAUGE | 92001 | 92001-1069 | 6 | ||
BOLT,6X20 | 92001A | 92001-1091 | 2 | ||
WASHER,6.2X11X1.5 | 92022 | 92022-183 | 2 | ||
COLLAR,L=14.1 | 92027 | 92027-1920 | 4 | ||
BOLT-SOCKET | 120 | 120S0512 | 7 | ||
BOLT-FLANGED | 130 | 130J0620 | 6 | ||
BOLT-FLANGED | 130A | 130J0812 | 1 | ||
SCREW-PAN-CROS,4X25,BLACK | 220 | 220C0425 | 1 | ||
SCREW-PAN-CROS | 220A | 220C0508 | 1 | ||
CLAMP,TUBE | 92037 | 92037-147 | 1 | ||
RING-O,FUEL TAP PACKING | 92055 | 92055-1112 | 1 | ||
RING-O,TAP LEVER | 92055A | 92055-1419 | 1 | ||
KNOB,FUEL TAP | 92077 | 92077-1115 | 1 | ||
DAMPER | 92160 | 92160-1162 | 4 | ||
DAMPER | 92160A | 92160-1513 | 2 | ||
TUBE,5X10X720 | 92190 | 92190-1552 | 1 | ||
TANK-COMP-FUEL,L.GREEN/WHITE | 51080 | 51080-5081-CK | 1 | ||
TANK-COMP-FUEL,L.GREEN/WHITE | 51080D | 51080-5087-CK | 1 | ||
TANK-COMP-FUEL,BLACK MICA | 51080I | 51080-5251-20 | 1 | ||
TANK-COMP-FUEL,BLACK MICA | 51080J | 51080-5252-20 | 1 | ||
SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 |
GASKET,FUEL GAUGE | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,TANK CAP | |
REF # | 14025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-TANK,FR | |
REF # | 32052 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-TANK,RR | |
REF # | 32052A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,FUEL TANK,FR | |
REF # | 39156 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,FUEL TANK,LH | |
REF # | 39156A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,FUEL TANK,RH | |
REF # | 39156B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PACKING,TAP VALVE | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TAP-ASSY,FUEL | |
REF # | 51023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-TANK,FUEL | |
REF # | 51049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GAUGE,FUEL | |
REF # | 52005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM,WINDSHIELD | |
REF # | 53044 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FUEL GAUGE | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,6.2X11X1.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,L=14.1 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-SOCKET | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,4X25,BLACK | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,FUEL TAP PACKING | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,TAP LEVER | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KNOB,FUEL TAP | |
REF # | 92077 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,5X10X720 | |
REF # | 92190 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-COMP-FUEL,L.GREEN/WHITE | |
REF # | 51080 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-COMP-FUEL,L.GREEN/WHITE | |
REF # | 51080D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-COMP-FUEL,BLACK MICA | |
REF # | 51080I |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-COMP-FUEL,BLACK MICA | |
REF # | 51080J |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,FUEL TANK CAP | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
