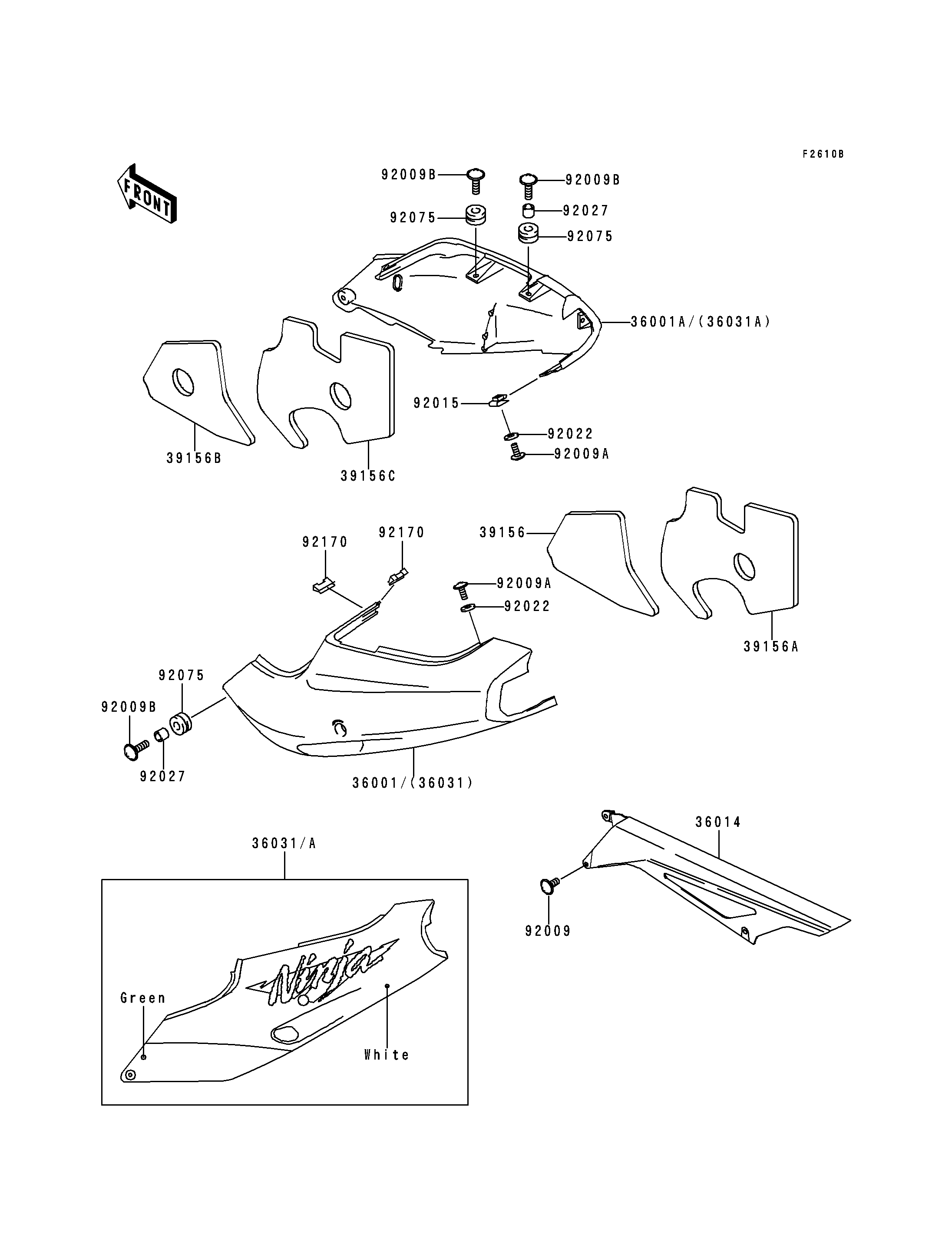

1996 Ninja® ZX™-9R - Side Covers/Chain Cover(ZX900-B3)
36001
36001A
36014
36031
36031A
39156
39156A
39156B
39156C
92009
92009A
92009A
92009B
92009B
92009B
92015
92022
92022
92027
92027
92075
92075
92075
92170
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER-SIDE,LH,BLACK MICA | 36001 | 36001-1520-20 | 1 | ||
COVER-SIDE,RH,BLACK MICA | 36001A | 36001-1521-20 | 1 | ||
CASE-CHAIN | 36014 | 36014-1189 | 1 | ||
COVER-SIDE,LH,P.A.WHITE | 36031 | 36031-5059-R1 | 1 | ||
COVER-SIDE,RH,P.A.WHITE | 36031A | 36031-5060-R1 | 1 | ||
PAD,SIDE COVER,LH,FR | 39156 | 39156-1396 | 1 | ||
PAD,SIDE COVER,LH,RR | 39156A | 39156-1397 | 1 | ||
PAD,SIDE COVER,RH,FR | 39156B | 39156-1398 | 1 | ||
PAD,SIDE COVER,RH,RR | 39156C | 39156-1399 | 1 | ||
SCREW,6X10 | 92009 | 92009-1402 | 4 | ||
SCREW,5X16 | 92009A | 92009-1654 | 3 | ||
SCREW,6X22 | 92009B | 92009-1664 | 6 | ||
NUT,5MM | 92015 | 92015-1798 | 1 | ||
WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 3 | ||
COLLAR,6.8X10X8.5 | 92027 | 92027-129 | 4 | ||
DAMPER | 92075 | 92075-1634 | 6 | ||
CLAMP | 92170 | 92170-1440 | 2 |
