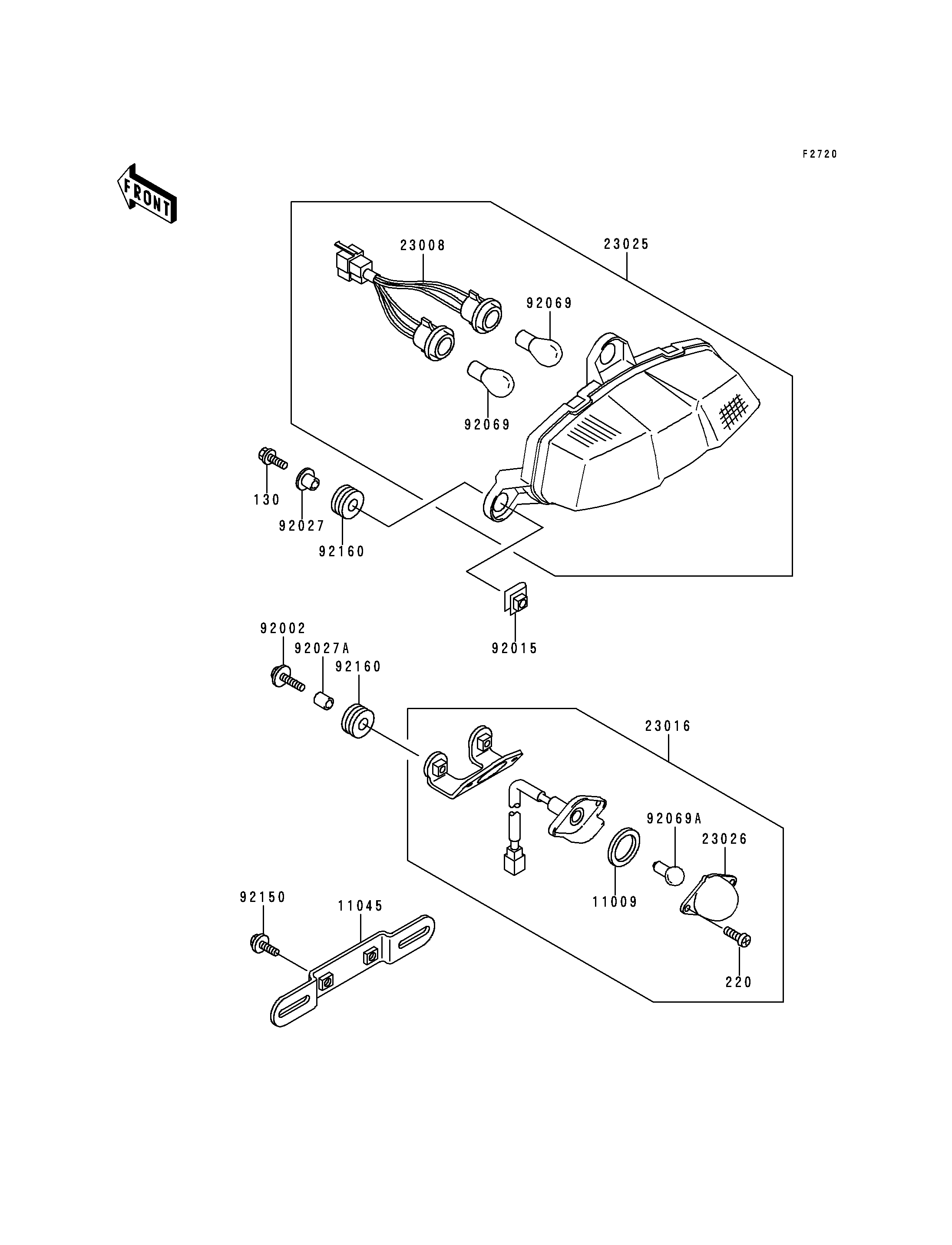

1995 Ninja® ZX™-9R - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
220
11009
11045
23008
23016
23025
23026
92002
92015
92027
92027A
92069
92069
92069A
92150
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130H0625 3
SCREW-PAN-CROS 220 220B0410 2
GASKET,LICENSE PLATE LAMP 11009 11009-1372 1
BRACKET,LICENSE 11045 11045-1387 1
SOCKET-ASSY,TAIL LAMP 23008 23008-1413 1
LAMP-ASSY,LICENSE PLATE 23016 23016-1053 1
LAMP-TAIL 23025 23025-1238 1
LENS,LAMP 23026 23026-1054 1
BOLT,6X25 92002 92002-1135 2
NUT,6MM 92015 92015-1094 3
COLLAR 92027 92027-1183 3
COLLAR,6.8X10X12 92027A 92027-162 2
BULB,12V 27/8W 92069 92069-059 2
BULB,12V 8W 92069A 92069-1012 1
BOLT,6X16 92150 92150-1909 2
DAMPER 92160 92160-1162 5
