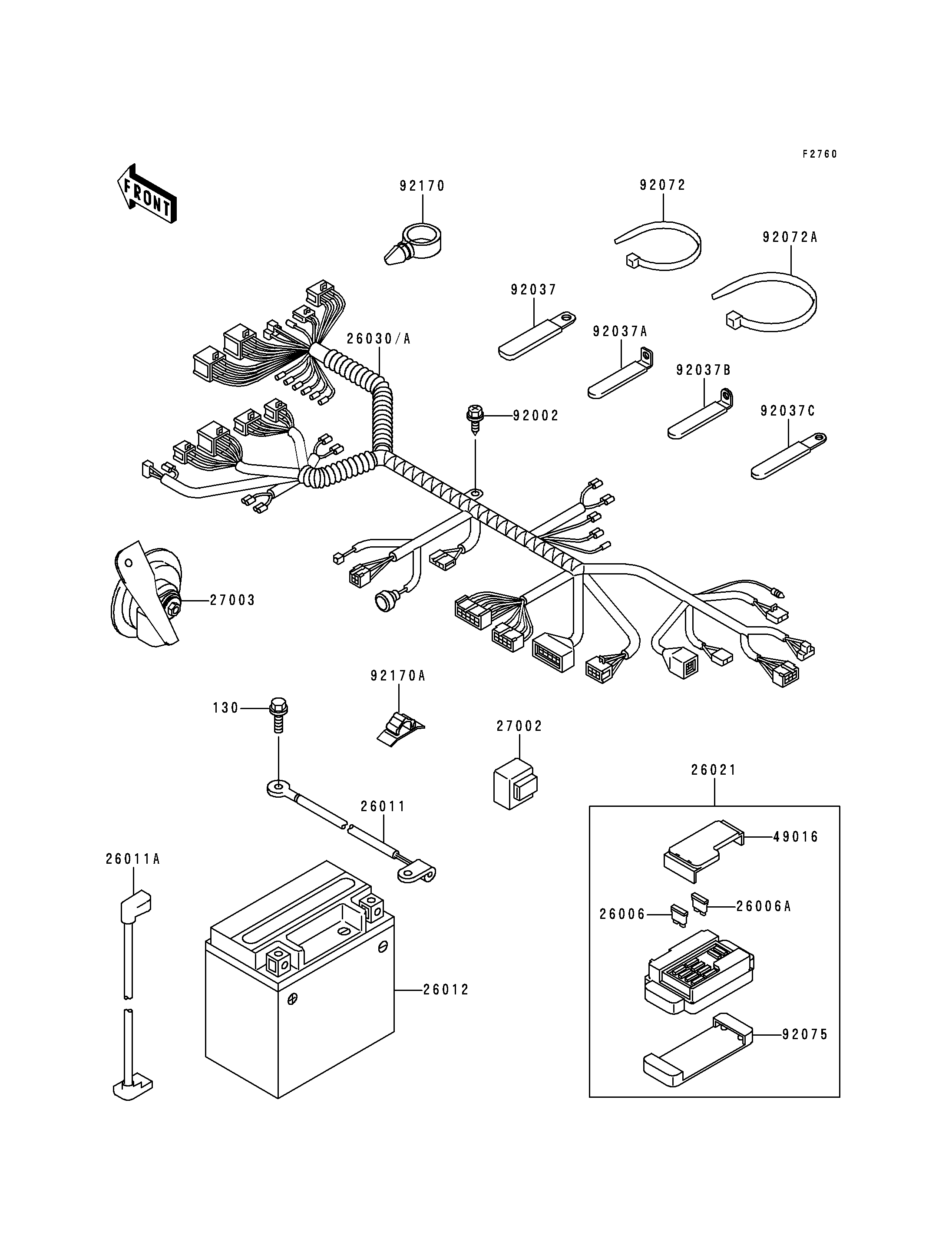

1994 Ninja® ZX™-9R - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
26006
26006A
26011
26011A
26012
26021
26030
27002
27003
49016
92002
92037
92037A
92037B
92037C
92072
92072A
92075
92170
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130G0610 1
FUSE,30A-G 26006 26006-1067 1
FUSE,10A-R 26006A 26006-1068 8
WIRE-LEAD,BATTERY(-) 26011 26011-1429 1
WIRE-LEAD,BATTERY(+) 26011A 26011-1584 1
BATTERY,YTX12-BS,12V 10AH 26012 26012-1281 1
JUNCTION BOX 26021 26021-1089 1
HARNESS,MAIN 26030 26030-1243 1
RELAY-ASSY,TURN SIGNAL 27002 27002-1053 1
HORN 27003 27003-1373 1
COVER-SEAL,FUSE 49016 49016-1177 1
BOLT,TAPPING,5X16 92002 92002-1472 1
CLAMP,WIRING HARNESS 92037 92037-1069 3
CLAMP,HARNESS 92037A 92037-1316 1
CLAMP 92037B 92037-1679 2
CLAMP 92037C 92037-1993 1
BAND,L=185 92072 92072-1195 9
BAND,L=365 92072A 92072-1197 2
DAMPER,JUNCTION BOX 92075 92075-1688 1
CLAMP 92170 92170-1067 3
CLAMP,HARNESS 92170A 92170-1494 1
