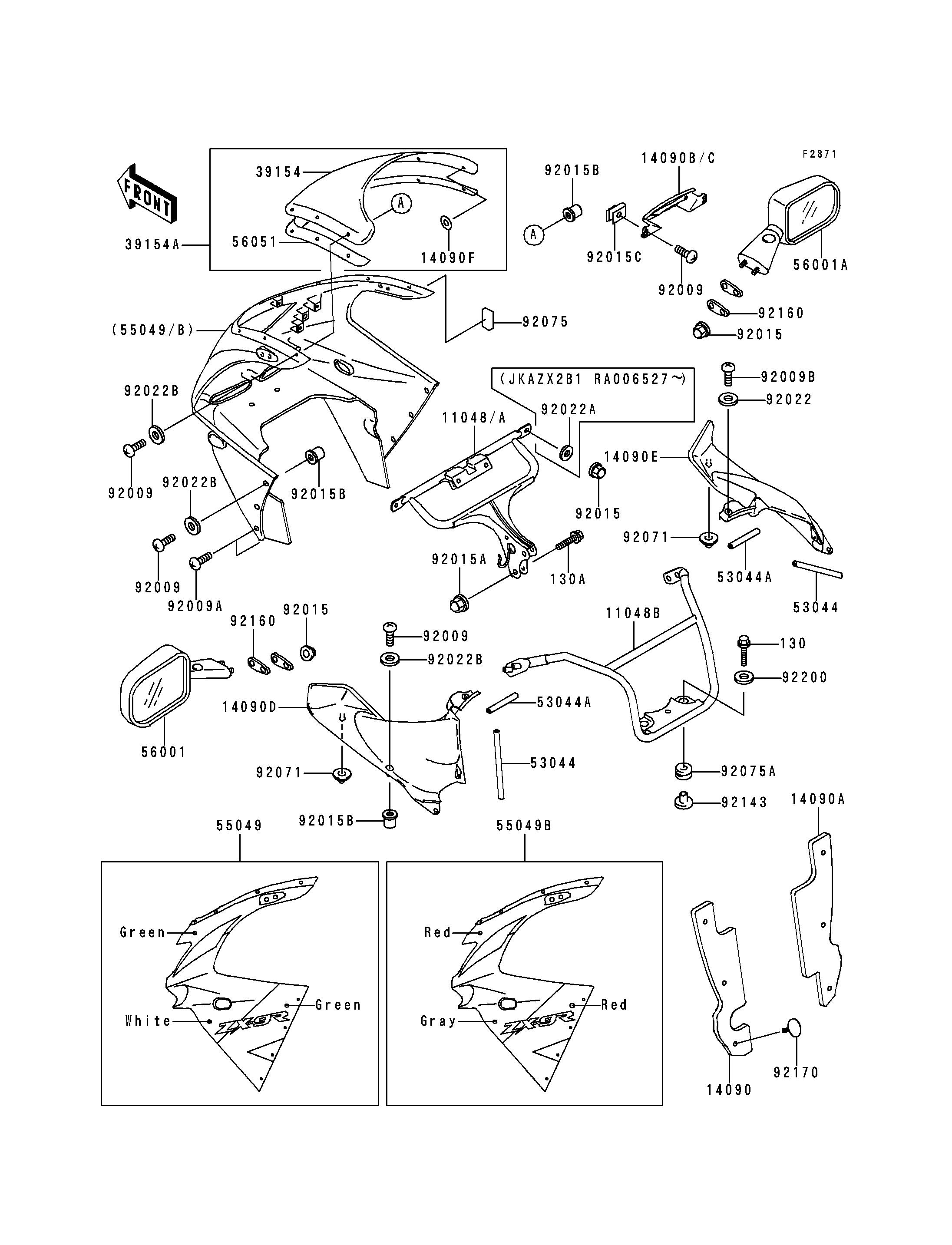

1994 Ninja® ZX™-9R - Cowling(ZX900-B1)

DOWNLOAD PDF
SELECT A NEW PART
11048
11048
11048A
11048A
11048B
11048B
14090
14090
14090A
14090A
14090B
14090B
14090C
14090C
14090D
14090D
14090E
14090E
14090F
14090F
39154
39154
39154A
39154A
53044
53044
53044
53044
53044A
53044A
53044A
53044A
55049
55049
55049B
55049B
56001
56001
56001A
56001A
56051
56051
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009B
92009B
92015
92015
92015
92015
92015
92015
92015A
92015A
92015B
92015B
92015B
92015B
92015B
92015B
92015C
92015C
92022
92022
92022A
92022A
92022B
92022B
92022B
92022B
92022B
92022B
92071
92071
92071
92071
92075
92075
130
130
130A
130A
92075A
92075A
92143
92143
92160
92160
92160
92160
92170
92170
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,UPP COWLING 11048 11048-1789 1 ( - JKAZX2B1 RA006526)
BRACKET,UPP COWLING 11048A 11048-1847 1 (JKAZX2B1 RA006527 - )
BRACKET,MIRROR 11048B 11048-1961 1
COVER,HEAT GUARD,LH 14090 14090-1385 1
COVER,HEAT GUARD,RH 14090A 14090-1386 1
COVER,POSITION LAMP,C.W.RED 14090B 14090-1404-H3 1
COVER,POSITION LAMP,L.GREEN 14090C 14090-1404-7F 1
COVER,INNER COWLING,LH,GRAY 14090D 14090-1499-11 1
COVER,INNER COWLING,RH,GRAY 14090E 14090-1500-11 1
COVER 14090F 14090-1505 8
WINDSHIELD 39154 39154-1124 1
WINDSHIELD 39154A 39154-5005 1
TRIM 53044 53044-1137 2
TRIM,L=75 53044A 53044-1279 2
COWLING.,UPP,GREEN/WHITE 55049 55049-5290-CK 1
COWLING.,UPP,GRAY/RED 55049B 55049-5296-92 1
MIRROR-ASSY,LH,BLACK 56001 56001-1441-10 1
MIRROR-ASSY,RH,BLACK 56001A 56001-1442-10 1
MARK,WINDSHIELD 56051 56051-1115 1
SCREW,5X16 92009 92009-1654 20
SCREW,5X20 92009A 92009-1656 4
SCREW,6X14 92009B 92009-1662 2
NUT,CAP,6MM,BLACK 92015 92015-1170 6
NUT,CAP,8MM,BLACK 92015A 92015-1174 2
NUT,WELL,5MM 92015B 92015-1757 22
NUT,5MM 92015C 92015-1798 2
WASHER,6.5X16X1 92022 92022-1143 2
WASHER,7X16X1.2 92022A 92022-1344 2 (JKAZX2B1 RA006527 - )
WASHER,NYLON,5.3X11.5X1.5 92022B 92022-1521 18
GROMMET 92071 92071-1222 2
DAMPER 92075 92075-1902 2
BOLT-FLANGED,6X30,BLACK 130 130J0630 2
BOLT-FLANGED,8X30 130A 130J0830 2
DAMPER 92075A 92075-209 2
COLLAR 92143 92143-1515 2
DAMPER,MIRROR 92160 92160-1089 4
CLAMP 92170 92170-1442 6
WASHER,6.5X22X1.6 92200 92200-1087 2
