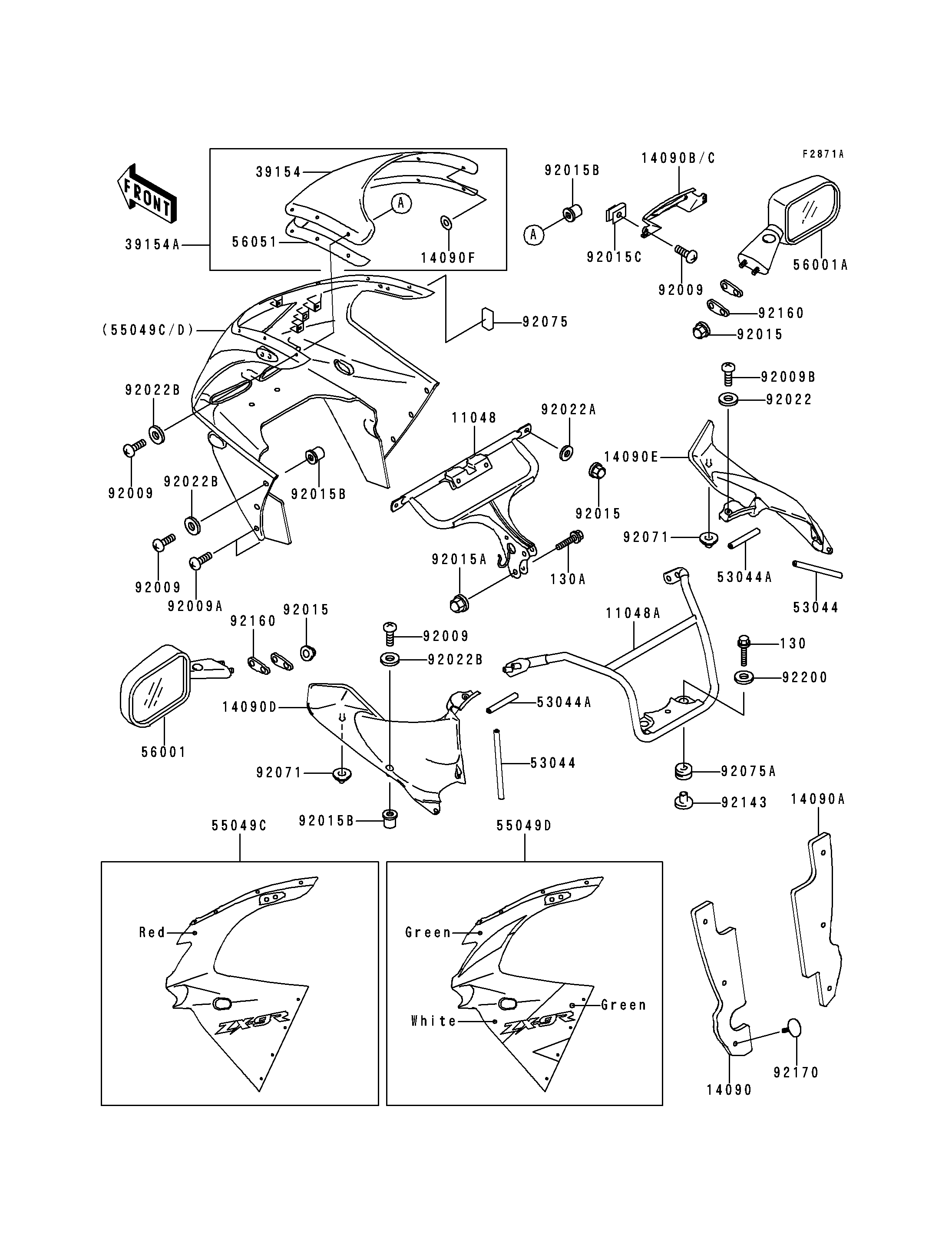

1995 Ninja® ZX™-9R - Cowling(ZX900-B2)
11048
11048
11048A
11048A
14090
14090
14090A
14090A
14090B
14090B
14090C
14090C
14090D
14090D
14090E
14090E
14090F
14090F
39154
39154
39154A
39154A
53044
53044
53044
53044
53044A
53044A
53044A
53044A
55049C
55049C
55049D
55049D
56001
56001
56001A
56001A
56051
56051
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009B
92009B
92015
92015
92015
92015
92015
92015
92015A
92015A
92015B
92015B
92015B
92015B
92015B
92015B
92015C
92015C
92022
92022
92022A
92022A
92022B
92022B
92022B
92022B
92022B
92022B
92071
92071
92071
92071
92075
92075
92075A
92075A
92143
92143
92160
92160
92160
92160
92170
92170
130
130
130A
130A
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,UPP COWLING | 11048 | 11048-1847 | 1 | ||
| BRACKET,MIRROR | 11048A | 11048-1961 | 1 | ||
| COVER,HEAT GUARD,LH | 14090 | 14090-1385 | 1 | ||
| COVER,HEAT GUARD,RH | 14090A | 14090-1386 | 1 | ||
| COVER,POSITION LAMP,C.W.RED | 14090B | 14090-1404-H3 | 1 | ||
| COVER,POSITION LAMP,L.GREEN | 14090C | 14090-1404-7F | 1 | ||
| COVER,INNER COWLING,LH,GRAY | 14090D | 14090-1499-11 | 1 | ||
| COVER,INNER COWLING,RH,GRAY | 14090E | 14090-1500-11 | 1 | ||
| COVER | 14090F | 14090-1505 | 8 | ||
| WINDSHIELD | 39154 | 39154-1124 | 1 | ||
| WINDSHIELD | 39154A | 39154-5005 | 1 | ||
| TRIM | 53044 | 53044-1137 | 2 | ||
| TRIM,L=75 | 53044A | 53044-1279 | 2 | ||
| COWLING.,UPP,C.W.RED | 55049C | 55049-5325-H3 | 1 | ||
| COWLING.,UPP,GREEN/WHITE | 55049D | 55049-5350-CK | 1 | ||
| MIRROR-ASSY,LH,BLACK | 56001 | 56001-1441-10 | 1 | ||
| MIRROR-ASSY,RH,BLACK | 56001A | 56001-1442-10 | 1 | ||
| MARK,WINDSHIELD | 56051 | 56051-1115 | 1 | ||
| SCREW,5X16 | 92009 | 92009-1654 | 20 | ||
| SCREW,5X20 | 92009A | 92009-1656 | 4 | ||
| SCREW,6X14 | 92009B | 92009-1662 | 2 | ||
| NUT,CAP,6MM,BLACK | 92015 | 92015-1170 | 6 | ||
| NUT,CAP,8MM,BLACK | 92015A | 92015-1174 | 2 | ||
| NUT,WELL,5MM | 92015B | 92015-1757 | 22 | ||
| NUT,5MM | 92015C | 92015-1798 | 2 | ||
| WASHER,6.5X16X1 | 92022 | 92022-1143 | 2 | ||
| WASHER,7X16X1.2 | 92022A | 92022-1344 | 2 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022B | 92022-1521 | 18 | ||
| GROMMET | 92071 | 92071-1222 | 2 | ||
| DAMPER | 92075 | 92075-1902 | 2 | ||
| DAMPER | 92075A | 92075-209 | 2 | ||
| COLLAR | 92143 | 92143-1515 | 2 | ||
| DAMPER,MIRROR | 92160 | 92160-1089 | 4 | ||
| CLAMP | 92170 | 92170-1442 | 6 | ||
| BOLT-FLANGED,6X30,BLACK | 130 | 130J0630 | 2 | ||
| BOLT-FLANGED,8X30 | 130A | 130J0830 | 2 | ||
| WASHER,6.5X22X1.6 | 92200 | 92200-1087 | 2 |
