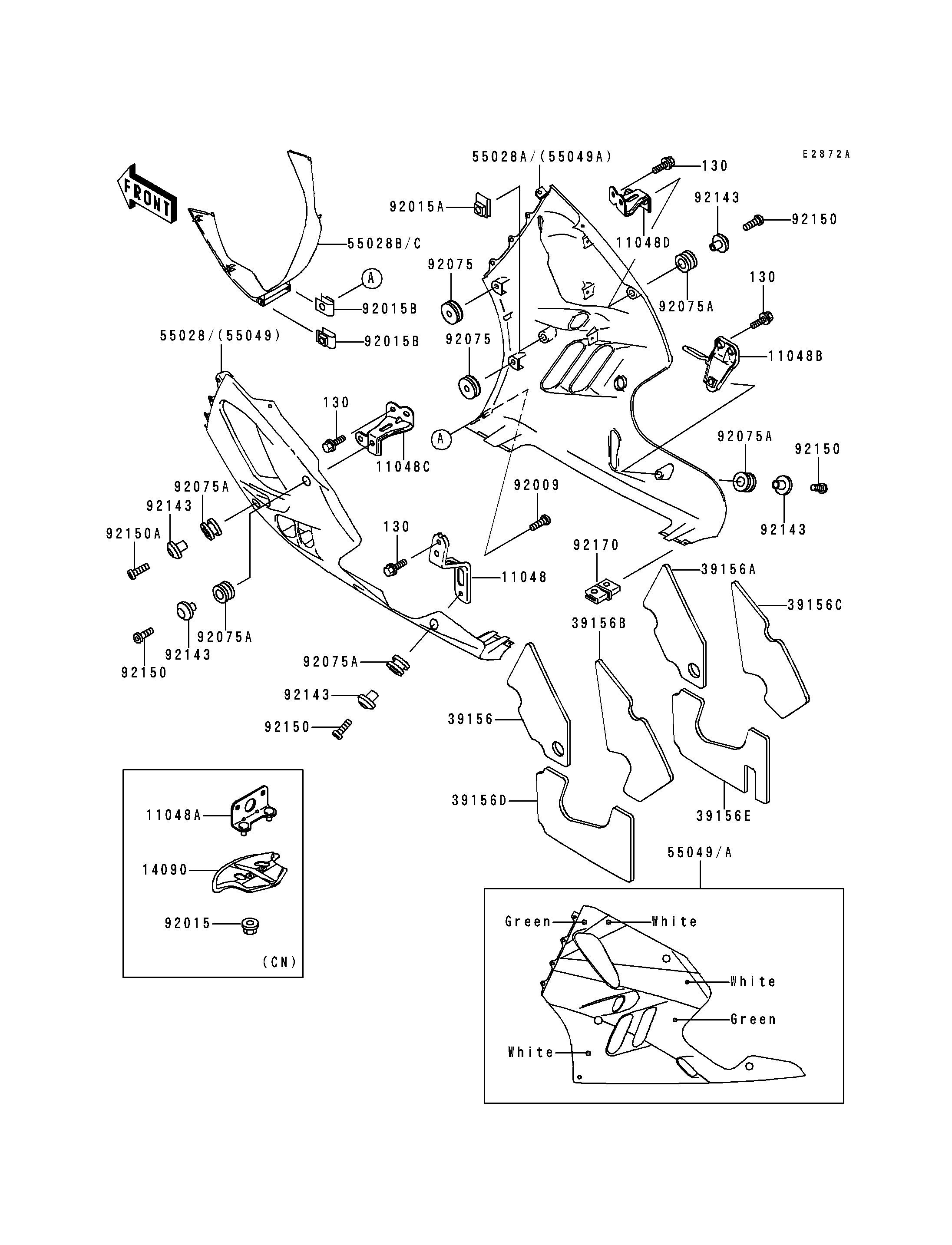

1995 Ninja® ZX™-9R - Cowling Lowers(ZX900-B2)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
11048
11048A
11048B
11048C
11048D
14090
39156
39156A
39156B
39156C
39156D
39156E
55028
55028A
55028B
55028C
55049
55049A
92009
92015
92015A
92015B
92015B
92075
92075
92075A
92075A
92075A
92075A
92075A
92143
92143
92143
92143
92143
92150
92150
92150
92150
92150A
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16,BLACK 130 130J0616 8
BRACKET,LWR COWLING,LH,LWR 11048 11048-1310 1
BRACKET,UNDER BRACKET 11048A 11048-1411 1
BRACKET,LWR COWLNG,RH,LWR 11048B 11048-1421 1
BRACKET,LWR COWLING,LH,UPP 11048C 11048-1681 1
BRACKET,LWR COWLING,RH,UPP 11048D 11048-1682 1
COVER,UNDER BRACKET 14090 14090-1388 1
PAD,LWR COWLING,LH,FR 39156 39156-1402 1
PAD,LWR COWLING,RH,FR 39156A 39156-1403 1
PAD,LWR COWLING,LH,RR 39156B 39156-1404 1
PAD,LWR COWLING,RH,RR 39156C 39156-1405 1
PAD,LWR COWLING,LH,LWR 39156D 39156-1406 1
PAD,LWR COWLING,RH,LWR 39156E 39156-1468 1
COWLING,LWR,LH,C.W.RED 55028 55028-1315-H3 1
COWLING,LWR,RH,C.W.RED 55028A 55028-1316-H3 1
COWLING,LWR,FR,C.W.RED 55028B 55028-1317-H3 1
COWLING,LWR,FR,P.A.WHITE 55028C 55028-1317-R1 1
COWLING.,LWR,LH,GREEN/WHITE 55049 55049-5291-CK 1
COWLING.,LWR,RH,GREEN/WHITE 55049A 55049-5292-CK 1
SCREW,5X16 92009 92009-1654 2
NUT,CAP,6MM,BLACK 92015 92015-1170 2
NUT 92015A 92015-1487 2
NUT,5MM 92015B 92015-1798 2
DAMPER 92075 92075-1067 4
DAMPER 92075A 92075-1634 6
COLLAR,BLACK 92143 92143-1226 6
BOLT,SOCKET,6X18 92150 92150-1553 4
BOLT,SOCKET,6X30 92150A 92150-1554 2
CLAMP 92170 92170-1230 1
