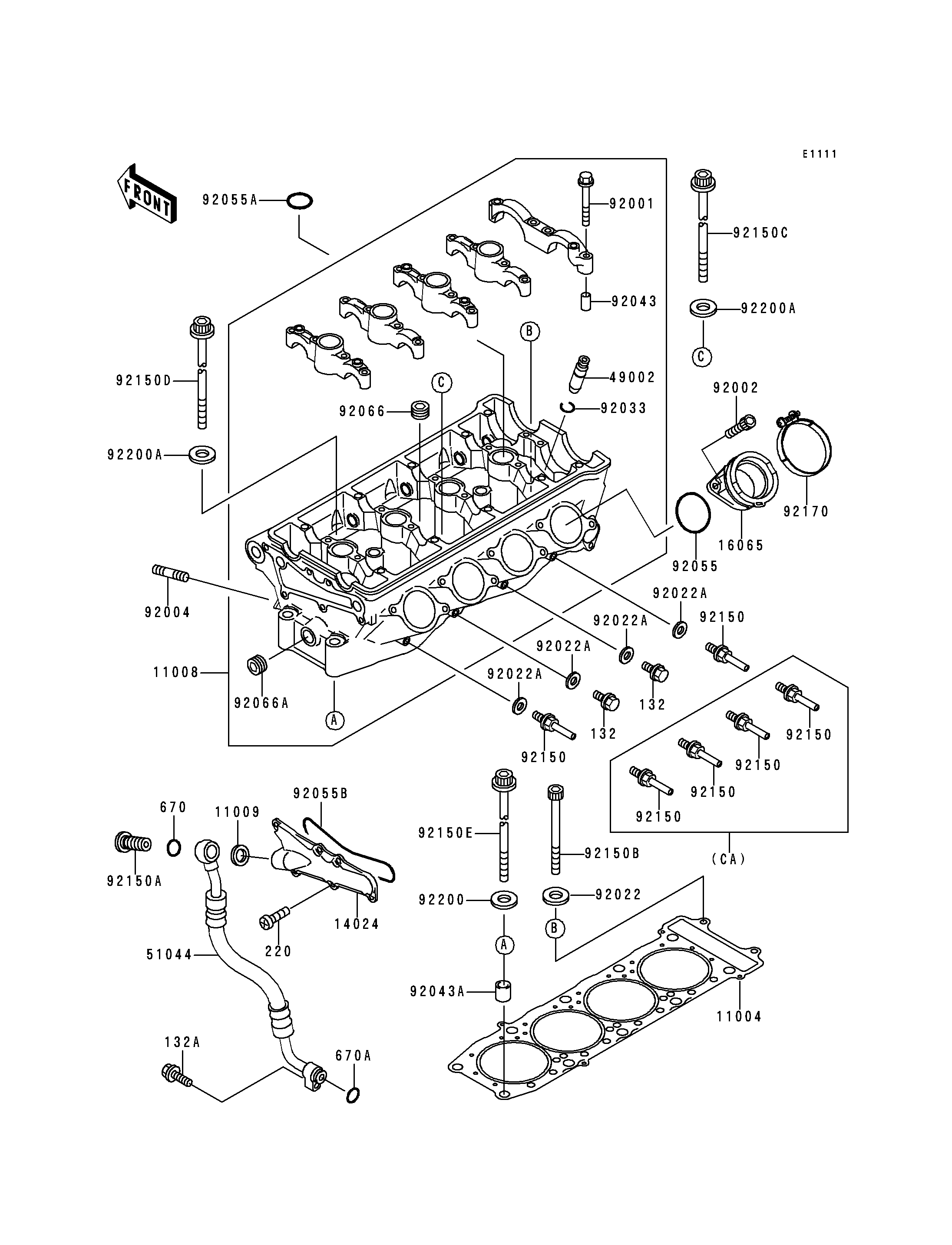

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0610 | 2 | ||
BOLT-FLANGED-SMALL | 132A | 132J0625 | 1 | ||
SCREW-PAN-CROS,6X14 | 220 | 220B0614 | 6 | ||
O RING,15MM | 670 | 670B2015 | 1 | ||
O RING | 670A | 670D2010 | 1 | ||
GASKET-HEAD | 11004 | 11004-1254 | 1 | ||
HEAD-COMP-CYLINDER | 11008 | 11008-1262 | 1 | ||
GASKET,14X19.5X1.4 | 11009 | 11009-1461 | 1 | ||
COVER,HEAD,LH | 14024 | 14024-1997 | 1 | ||
HOLDER-CARBURETOR | 16065 | 16065-1294 | 4 | ||
GUIDE-VALVE | 49002 | 49002-1116 | AR | ||
TUBE-ASSY,OIL | 51044 | 51044-1161 | 1 | ||
BOLT,FLANGED,6X38 | 92001 | 92001-1105 | 20 | ||
BOLT,6X16 | 92002 | 92002-1143 | 8 | ||
STUD,8X30 | 92004 | 92004-1121 | 8 | ||
WASHER,6.5X13X2.0 | 92022 | 92022-1523 | 2 | ||
WASHER,6.2X11X1 | 92022A | 92022-304 | 4 | ||
RING-SNAP | 92033 | 92033-1247 | 16 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 10 | ||
PIN,10.1X12X14 | 92043A | 92043-4009 | 2 | ||
RING-O,43.7X1.9 | 92055 | 92055-1401 | 4 | ||
RING-O,25.5X2 | 92055A | 92055-1403 | 4 | ||
RING-O | 92055B | 92055-1490 | 1 | ||
PLUG | 92066 | 92066-1253 | 4 | ||
PLUG | 92066A | 92066-1262 | 1 | ||
BOLT | 92150 | 92150-1161 | 2 | ||
BOLT | 92150 | 92150-1161 | 4 | ||
BOLT,HEAD,14MM | 92150A | 92150-1543 | 1 | ||
BOLT,SOCKET,6X110 | 92150B | 92150-1755 | 2 | ||
BOLT,10X164 | 92150C | 92150-1756 | 4 | ||
BOLT,10X182 | 92150D | 92150-1757 | 4 | ||
BOLT,10X146 | 92150E | 92150-1758 | 2 | ||
CLAMP | 92170 | 92170-1160 | 4 | ||
WASHER,10.5X19X2.3 | 92200 | 92200-1042 | 2 | ||
WASHER,10.5X20X4.5 | 92200A | 92200-1086 | 8 |
