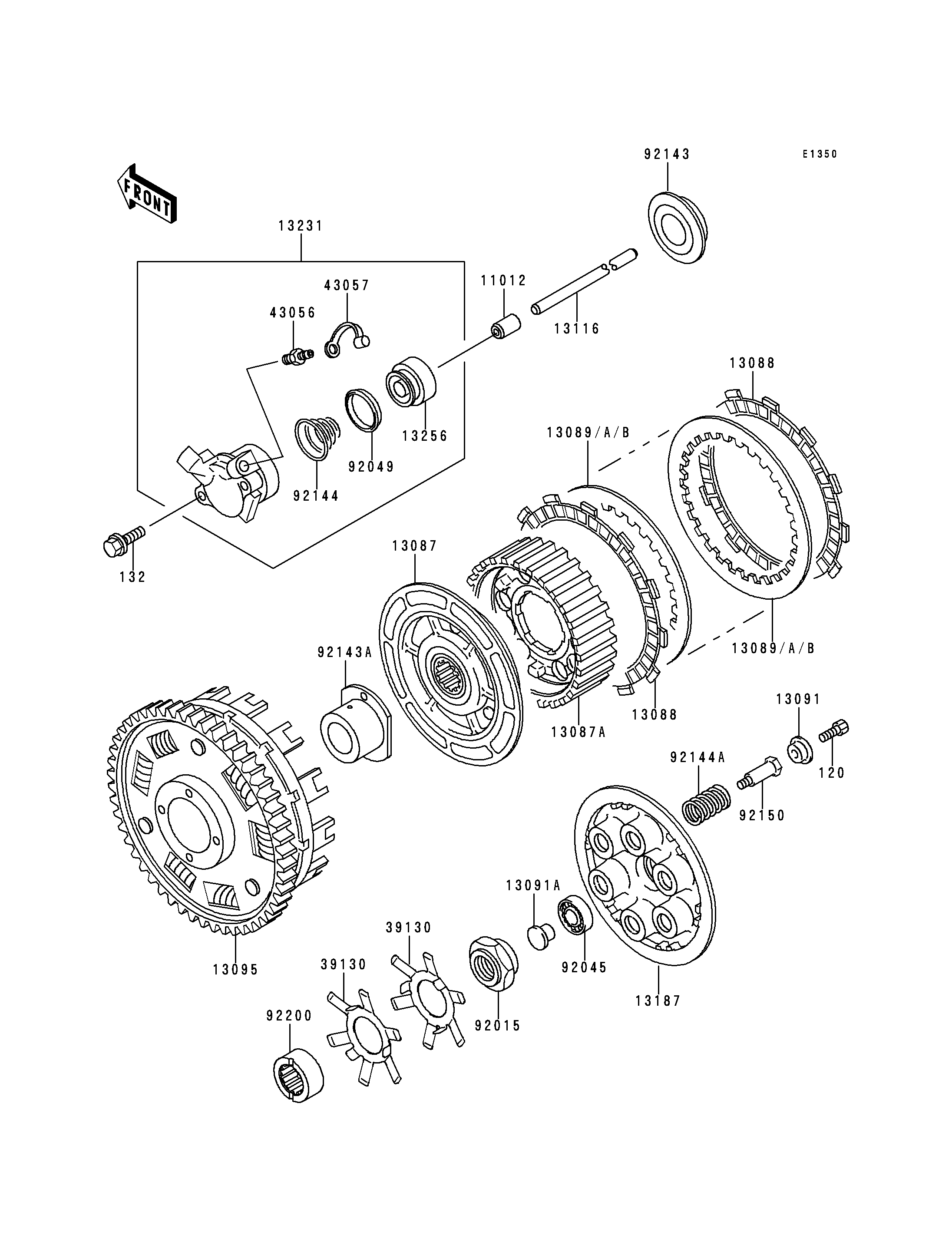

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,6X16 | 120 | 120Q0616 | 6 | ||
BOLT-FLANGED-SMALL | 132 | 132J0625 | 2 | ||
CAP,PUSHROD | 11012 | 11012-1569 | 1 | ||
HUB-CLUTCH | 13087 | 13087-1157 | 1 | ||
HUB-CLUTCH | 13087A | 13087-1160 | 1 | ||
PLATE-FRICTION | 13088 | 13088-1087 | 8 | ||
PLATE-CLUTCH,T=2.0 | 13089 | 13089-026 | AR | ||
PLATE-CLUTCH,T=2.3 | 13089A | 13089-1004 | AR | ||
PLATE-CLUTCH,T=2.6 | 13089B | 13089-1067 | AR | ||
HOLDER,CLUTCH SPRING | 13091 | 13091-1041 | 6 | ||
HOLDER,CLUTCH PUSH ROD | 13091A | 13091-1085 | 1 | ||
HOUSING-COMP-CLUTCH | 13095 | 13095-1284 | 1 | ||
ROD-PUSH | 13116 | 13116-1141 | 1 | ||
PLATE-CLUTCH OPERATING | 13187 | 13187-1067 | 1 | ||
RELEASE-ASSY-CLUTCH | 13231 | 13231-1065 | 1 | ||
PISTON | 13256 | 13256-1052 | 1 | ||
SPRING-LEAF | 39130 | 39130-1071 | 2 | ||
BREATHER-BRAKE | 43056 | 43056-1052 | 1 | ||
CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
NUT | 92015 | 92015-1929 | 1 | ||
BEARING-BALL,6001C3ML01 | 92045 | 92045-1235 | 1 | ||
SEAL-OIL,PISTON | 92049 | 92049-1165 | 1 | ||
COLLAR | 92143 | 92143-1468 | 1 | ||
COLLAR | 92143A | 92143-1638 | 1 | ||
SPRING,CLUTCH RELEASE | 92144 | 92144-1084 | 1 | ||
SPRING,CLUTCH | 92144A | 92144-1779 | 6 | ||
BOLT,CLUTCH | 92150 | 92150-1477 | 6 | ||
WASHER | 92200 | 92200-1205 | 1 |
BOLT-SOCKET,6X16 | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP,PUSHROD | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HUB-CLUTCH | |
REF # | 13087 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HUB-CLUTCH | |
REF # | 13087A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-FRICTION | |
REF # | 13088 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PLATE-CLUTCH,T=2.0 | |
REF # | 13089 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
PLATE-CLUTCH,T=2.3 | |
REF # | 13089A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
PLATE-CLUTCH,T=2.6 | |
REF # | 13089B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
HOLDER,CLUTCH SPRING | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
HOLDER,CLUTCH PUSH ROD | |
REF # | 13091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING-COMP-CLUTCH | |
REF # | 13095 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-PUSH | |
REF # | 13116 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-CLUTCH OPERATING | |
REF # | 13187 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELEASE-ASSY-CLUTCH | |
REF # | 13231 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON | |
REF # | 13256 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING-LEAF | |
REF # | 39130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BREATHER-BRAKE | |
REF # | 43056 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BREATHER | |
REF # | 43057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,6001C3ML01 | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,PISTON | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CLUTCH RELEASE | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CLUTCH | |
REF # | 92144A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,CLUTCH | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
