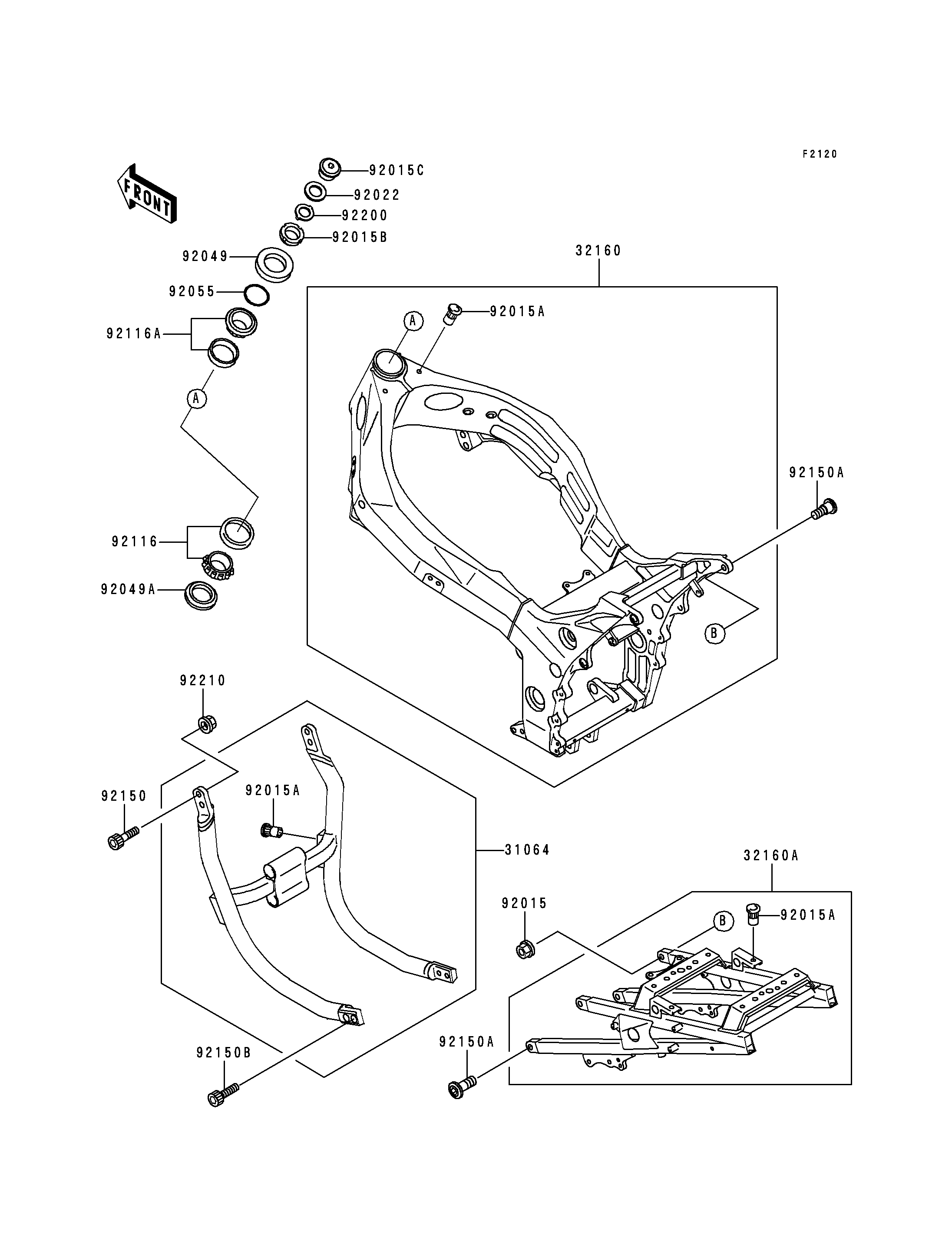

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PIPE-COMP,DOWNTUBE | 31064 | 31064-1166 | 1 | ||
FRAME-COMP,AL,FR,G.GRAY | 32160 | 32160-1330-GD | 1 | ||
FRAME-COMP,AL,RR,G.GRAY | 32160A | 32160-1439-GD | 1 | ||
NUT,FLANGED,10MM | 92015 | 92015-1415 | 4 | ||
NUT,POP,6MM,L=16.5 | 92015A | 92015-1792 | 26 | ||
NUT,STEERING STEM,35MM | 92015B | 92015-1848 | 1 | ||
NUT,STEERING,25MM | 92015C | 92015-1891 | 1 | ||
WASHER,25X36X2.3 | 92022 | 92022-250 | 1 | ||
SEAL-OIL,XMH 43 75 6.4J | 92049 | 92049-1382 | 1 | ||
SEAL-OIL,XMHE 43 55 4J | 92049A | 92049-1383 | 1 | ||
RING-O,34.5X2.0 | 92055 | 92055-1452 | 1 | ||
BEARING-ROLLER,32907JR-2 | 92116 | 92116-1072 | 1 | ||
BEARING-ROLLER,32907JR-3 | 92116A | 92116-1074 | 1 | ||
BOLT,SOCKET,10X37 | 92150 | 92150-1261 | 4 | ||
BOLT,10X35 | 92150A | 92150-1295 | 4 | ||
BOLT,SOCKET,10X30 | 92150B | 92150-1690 | 4 | ||
WASHER,CLAW,25.5X40X2.3 | 92200 | 92200-1083 | 1 | ||
NUT,LOCK,FLANGED,10MM | 92210 | 92210-1080 | 4 |
