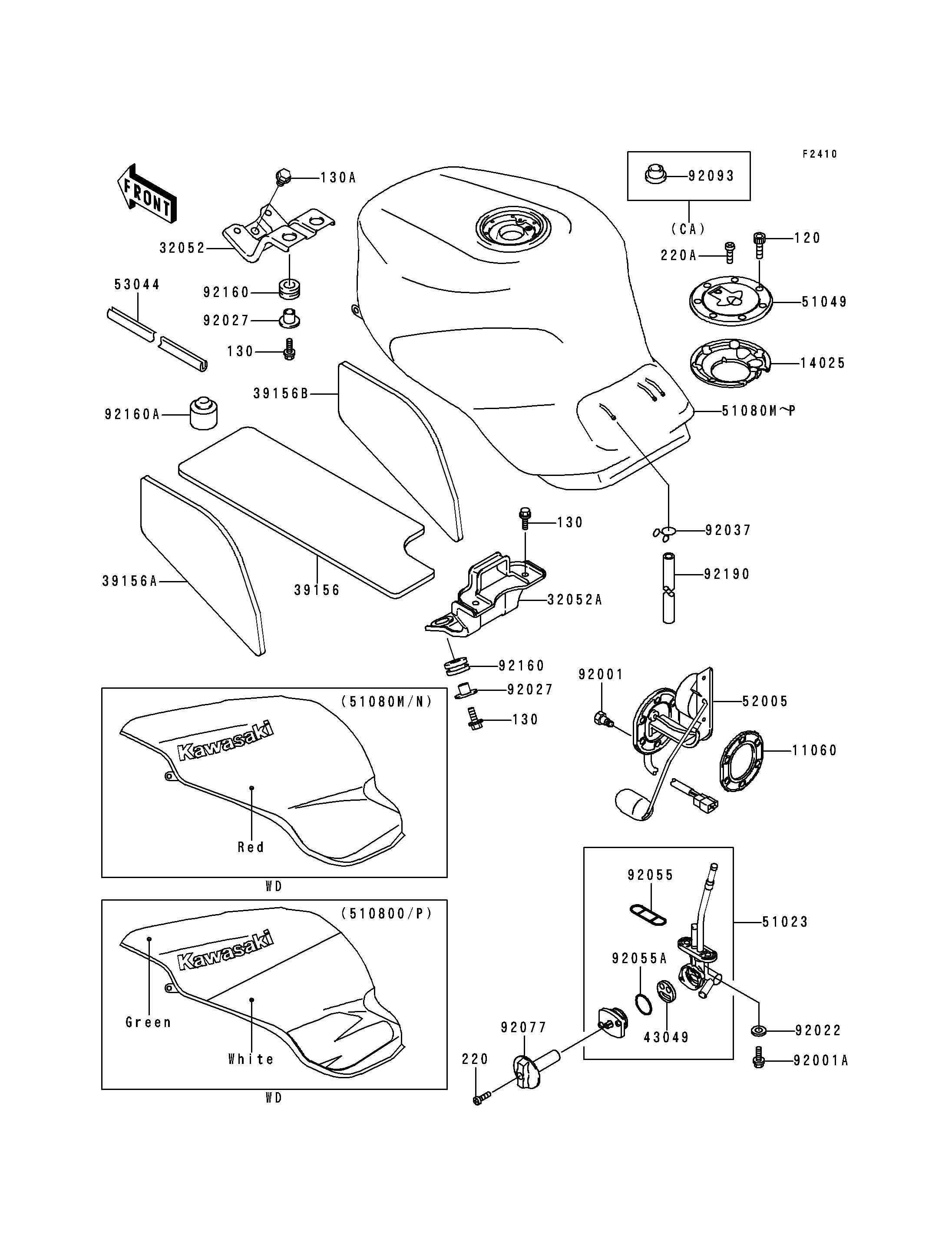

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FUEL GAUGE | 11060 | 11060-1337 | 1 | ||
COVER,TANK CAP | 14025 | 14025-1913 | 1 | ||
BRACKET-TANK,FR | 32052 | 32052-1386 | 1 | ||
BRACKET-TANK,RR | 32052A | 32052-1387 | 1 | ||
PAD,FUEL TANK,FR | 39156 | 39156-1392 | 1 | ||
PAD,FUEL TANK,LH | 39156A | 39156-1394 | 1 | ||
PAD,FUEL TANK,RH | 39156B | 39156-1395 | 1 | ||
PACKING,TAP VALVE | 43049 | 43049-1066 | 1 | ||
TAP-ASSY,FUEL | 51023 | 51023-1213 | 1 | ||
CAP-TANK,FUEL | 51049 | 51049-1091 | 1 | ||
TANK-COMP-FUEL,F.RED | 51080M | 51080-5339-B1 | 1 | ||
TANK-COMP-FUEL,F.RED | 51080N | 51080-5340-B1 | 1 | ||
TANK-COMP-FUEL,GREEN/WHITE | 51080O | 51080-5341-CK | 1 | ||
BOLT-SOCKET | 120 | 120S0512 | 7 | ||
BOLT-FLANGED | 130 | 130J0620 | 6 | ||
BOLT-FLANGED | 130A | 130J0812 | 1 | ||
SCREW-PAN-CROS,4X25,BLACK | 220 | 220C0425 | 1 | ||
SCREW-PAN-CROS | 220A | 220C0508 | 1 | ||
TANK-COMP-FUEL,GREEN/WHITE | 51080P | 51080-5342-CK | 1 | ||
GAUGE,FUEL | 52005 | 52005-1108 | 1 | ||
TRIM,WINDSHIELD | 53044 | 53044-1120 | 2 | ||
BOLT,FUEL GAUGE | 92001 | 92001-1069 | 6 | ||
BOLT,6X20 | 92001A | 92001-1091 | 2 | ||
WASHER,6.2X11X1.5 | 92022 | 92022-183 | 2 | ||
COLLAR,L=14.1 | 92027 | 92027-1920 | 4 | ||
CLAMP,TUBE | 92037 | 92037-147 | 1 | ||
RING-O,FUEL TAP PACKING | 92055 | 92055-1112 | 1 | ||
RING-O,TAP LEVER | 92055A | 92055-1419 | 1 | ||
KNOB,FUEL TAP | 92077 | 92077-1115 | 1 | ||
SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | ||
DAMPER | 92160 | 92160-1162 | 4 | ||
DAMPER | 92160A | 92160-1513 | 2 | ||
TUBE,5X10X720 | 92190 | 92190-1552 | 1 |
