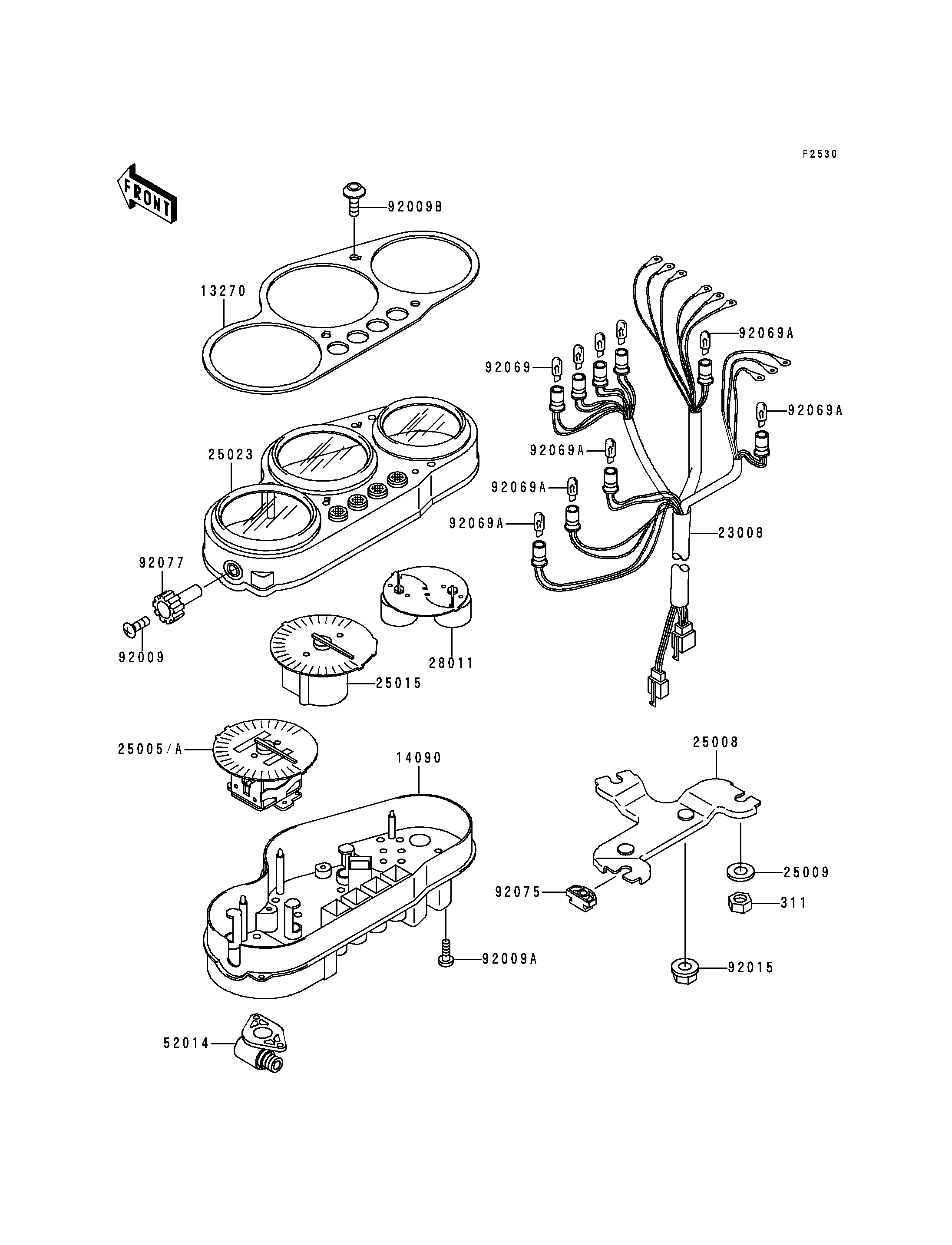

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT-HEX | 311 | 311C0500 | 3 | ||
PLATE,METER PANNEL | 13270 | 13270-1156 | 1 | ||
COVER,METER HOUSING | 14090 | 14090-1402 | 1 | ||
SOCKET-ASSY,METER | 23008 | 23008-1528 | 1 | ||
SPEEDOMETER,KPH | 25005 | 25005-1552 | 1 | ||
SPEEDOMETER,MPH | 25005A | 25005-1563 | 1 | ||
BRACKET-METER | 25008 | 25008-1202 | 1 | ||
WASHER,5.2X16X1.2 | 25009 | 25009-004 | 3 | ||
TACHOMETER,X1000R/MIN | 25015 | 25015-1326 | 1 | ||
COVER-METER CASE,UPP | 25023 | 25023-1212 | 1 | ||
METER,FUEL&TEMP | 28011 | 28011-1143 | 1 | ||
ELBOW | 52014 | 52014-1081 | 1 | ||
SCREW,2X6,BLACK | 92009 | 92009-1172 | 1 | ||
SCREW,TAPPING,4X14 | 92009A | 92009-1593 | 4 | ||
SCREW,TAPPING,5X16 | 92009B | 92009-1720 | 3 | ||
NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 2 | ||
BULB,12V 3.4W | 92069 | 92069-1007 | 4 | ||
BULB,12V 1.7W | 92069A | 92069-1059 | 5 | ||
DAMPER,METER BRACKET | 92075 | 92075-1581 | 3 | ||
KNOB,METER | 92077 | 92077-1073 | 1 |
NUT-HEX | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
PLATE,METER PANNEL | |
REF # | 13270 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,METER HOUSING | |
REF # | 14090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOCKET-ASSY,METER | |
REF # | 23008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPEEDOMETER,KPH | |
REF # | 25005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPEEDOMETER,MPH | |
REF # | 25005A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-METER | |
REF # | 25008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,5.2X16X1.2 | |
REF # | 25009 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
TACHOMETER,X1000R/MIN | |
REF # | 25015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-METER CASE,UPP | |
REF # | 25023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
METER,FUEL&TEMP | |
REF # | 28011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ELBOW | |
REF # | 52014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,2X6,BLACK | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X14 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,5X16 | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 3.4W | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BULB,12V 1.7W | |
REF # | 92069A |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
DAMPER,METER BRACKET | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
KNOB,METER | |
REF # | 92077 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
