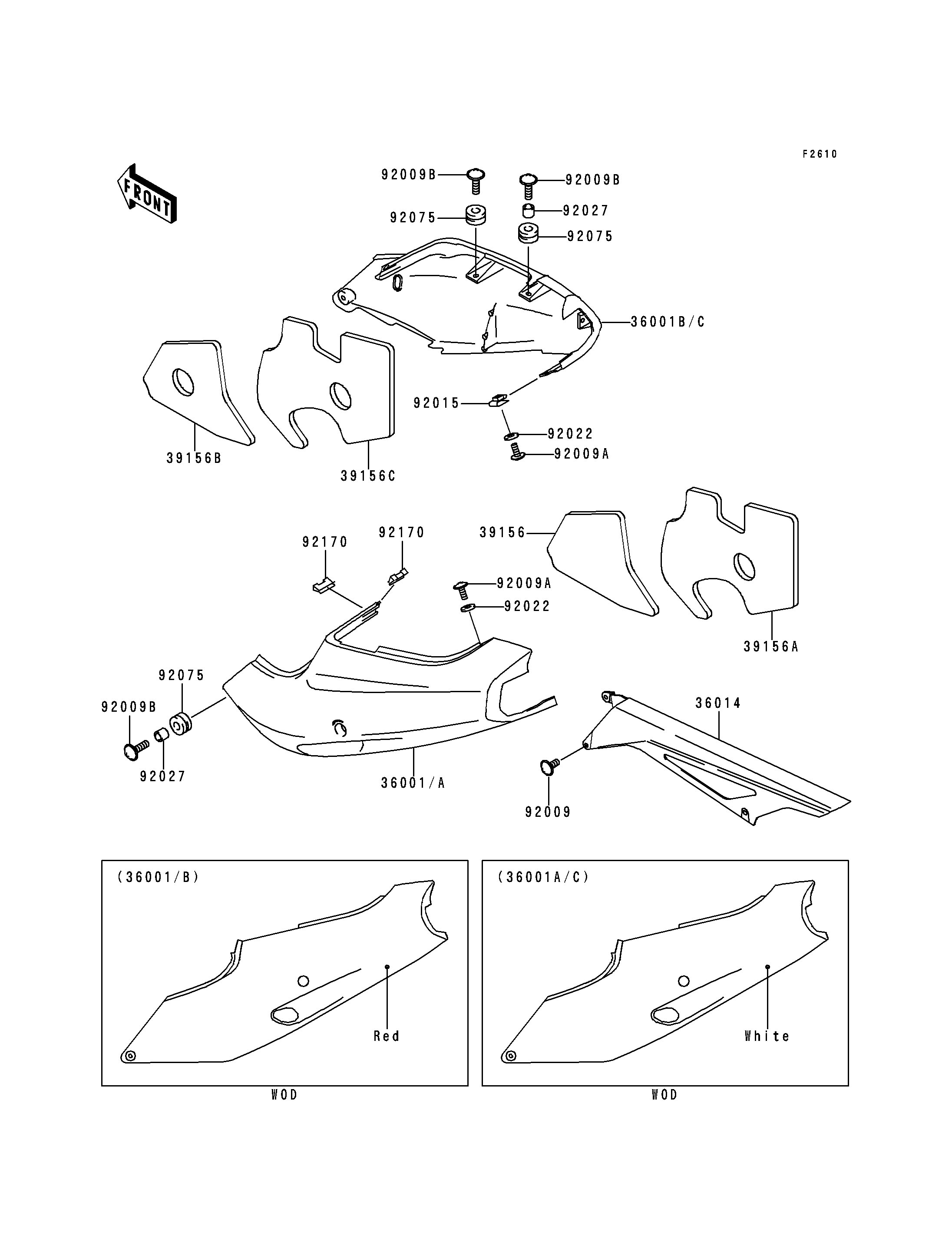

1997 Ninja® ZX-9R - Side Covers/Chain Cover

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,F.RED 36001 36001-1565-B1 1
COVER-SIDE,LH,P.A.WHITE 36001A 36001-1565-R1 1
COVER-SIDE,RH,F.RED 36001B 36001-1567-B1 1
COVER-SIDE,RH,P.A.WHITE 36001C 36001-1567-R1 1
CASE-CHAIN 36014 36014-1189 1
PAD,SIDE COVER,LH,FR 39156 39156-1396 1
PAD,SIDE COVER,LH,RR 39156A 39156-1397 1
PAD,SIDE COVER,RH,FR 39156B 39156-1398 1
PAD,SIDE COVER,RH,RR 39156C 39156-1399 1
SCREW,6X14 92009 92009-1288 4
SCREW,5X16 92009A 92009-1654 3
SCREW,6X22 92009B 92009-1664 6
NUT,5MM 92015 92015-1798 1
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 3
COLLAR,6.8X10X8.5 92027 92027-129 4
DAMPER 92075 92075-1634 6
CLAMP 92170 92170-1440 2
