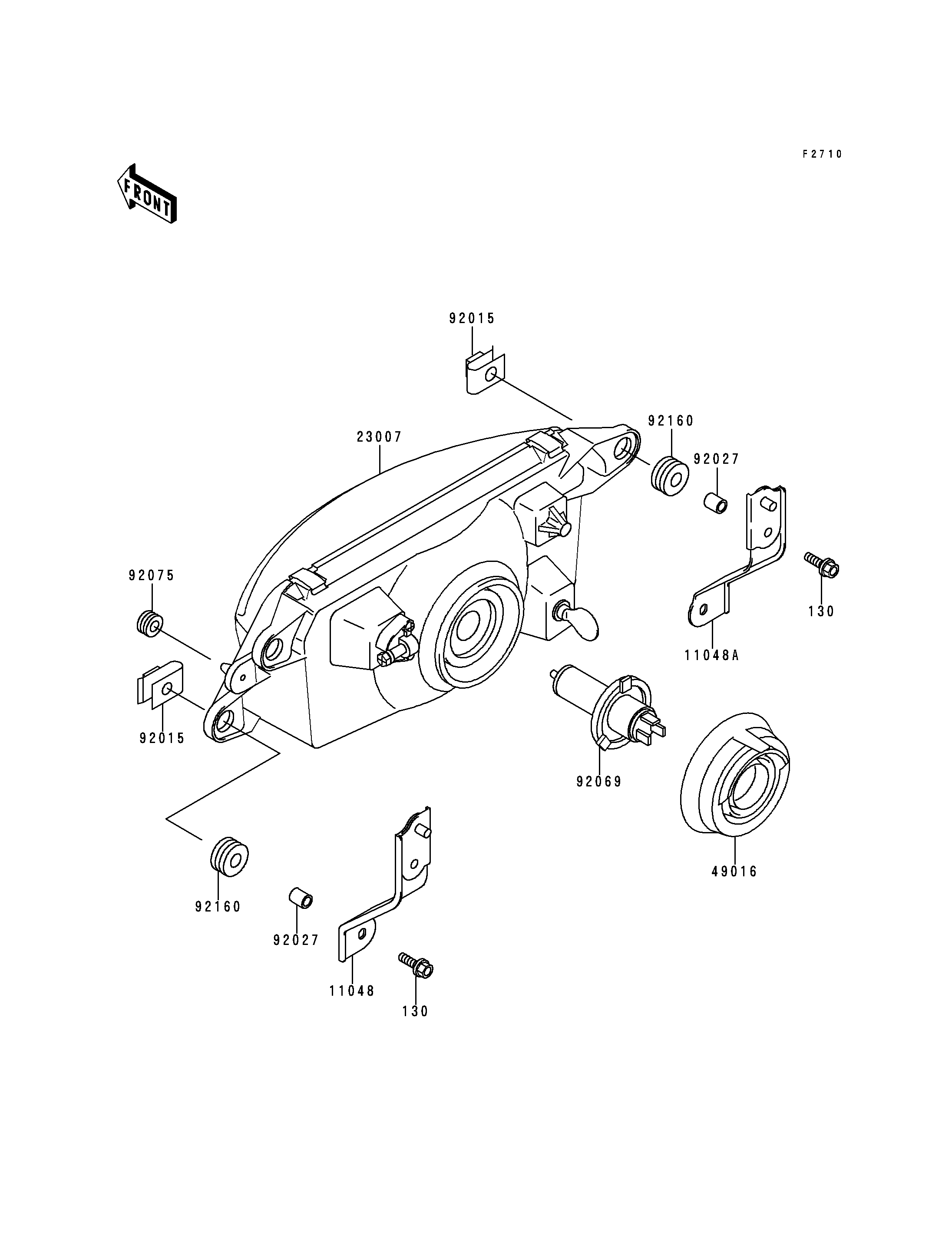

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130J0625 4
BRACKET,HEAD LAMP,LH 11048 11048-1785 1
BRACKET,HEAD LAMP,RH 11048A 11048-1786 1
LENS-COMP,HEAD LAMP 23007 23007-1312 1
COVER-SEAL,HEAD LAMP 49016 49016-1135 1
NUT,6MM 92015 92015-1094 4
COLLAR,6.8X10X12 92027 92027-162 4
BULB,12V 60/55W,H4 92069 92069-1002 1
DAMPER 92075 92075-1912 2
DAMPER 92160 92160-1162 4
