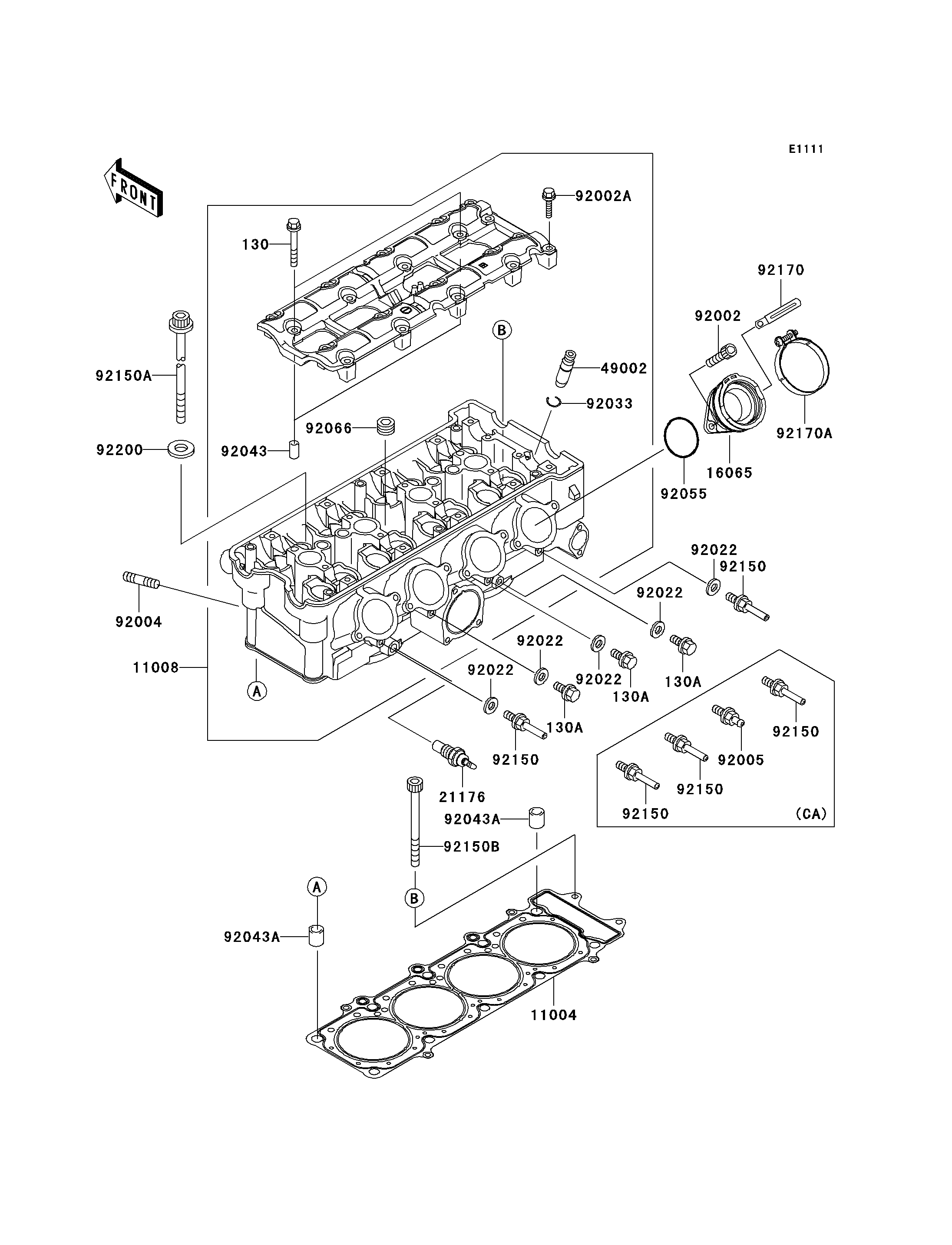

1999 Ninja® ZX™-9R - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
130
11004
11008
16065
21176
49002
92002
92002A
92004
92022
92022
92022
92022
92022
92033
92043
92043A
92043A
92055
92066
92150A
92150B
92170
92170A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130P0645 2
GASKET-HEAD 11004 11004-1327 1
HEAD-COMP-CYLINDER 11008 11008-1336 1
HOLDER-CARBURETOR 16065 16065-1352 4
SENSOR 21176 21176-1075 1
GUIDE-VALVE 49002 49002-1116 AR
BOLT,6X16 92002 92002-1143 8
BOLT,6X40 92002A 92002-1756 18
STUD,8X22 92004 92004-1249 8
WASHER,6.2X11X1 92022 92022-304 5
RING-SNAP 92033 92033-1247 16
PIN,6.2X8X14 92043 92043-1263 2
PIN,10.1X12X14 92043A 92043-4009 2
RING-O,43.7X1.9 92055 92055-1401 4
PLUG 92066 92066-1253 5
BOLT,10X165 92150A 92150-1368 10
BOLT,SOCKET,6X110 92150B 92150-1755 2
CLAMP 92170 92170-1514 1
CLAMP 92170A 92170-1882 4
WASHER,10.5X19X2.3 92200 92200-1042 10
BOLT-FLANGED 130A 130Y0610 1 CA
BOLT-FLANGED 130A 130Y0610 3 CNUS
FITTING 92005 92005-1221 1 CA
BOLT 92150 92150-1161 2 CNUS
BOLT 92150 92150-1161 3 CA
