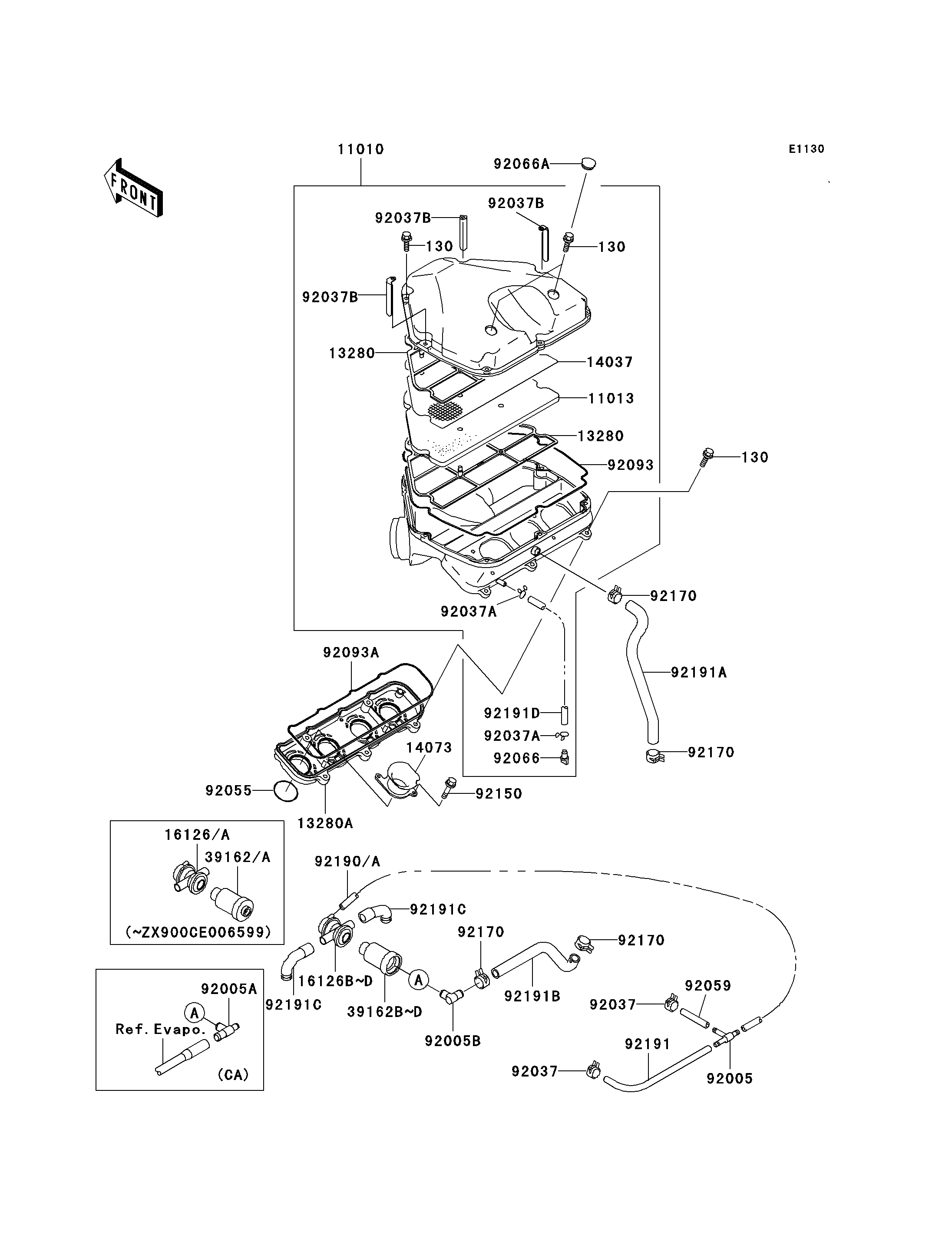

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-1624 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1270 | 1 | ||
| HOLDER,ELEMENT | 13280 | 13280-1059 | 2 | ||
| HOLDER | 13280A | 13280-1060 | 1 | ||
| SCREEN,ELEMENT | 14037 | 14037-1244 | 1 | ||
| DUCT | 14073 | 14073-1704 | 4 | ||
| VALVE,AIR SWITCH | 16126B | 16126-1361 | 1 | ||
| SILENCER-INTAKE | 39162B | 39162-1091 | 1 | ||
| FITTING,TUBE,T-TYPE | 92005 | 92005-1017 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-1461 | 2 | ||
| CLAMP,TUBE | 92037A | 92037-147 | 2 | ||
| CLAMP | 92037B | 92037-1679 | 3 | ||
| RING-O,67.7X3.1 | 92055 | 92055-1434 | 4 | ||
| TUBE,4X9X50 | 92059 | 92059-1193 | 1 | ||
| PLUG,DRAIN | 92066 | 92066-1211 | 1 | ||
| BOLT-FLANGED,6X25 | 130 | 130H0625 | 12 | ||
| PLUG | 92066A | 92066-1389 | 2 | ||
| SEAL,AIR FILTER | 92093 | 92093-1452 | 1 | ||
| SEAL | 92093A | 92093-1453 | 1 | ||
| BOLT,5X16 | 92150 | 92150-1160 | 8 | ||
| CLAMP | 92170 | 92170-1060 | 4 | ||
| TUBE,4X10X266 | 92191 | 92191-1077 | 1 | ||
| TUBE,BREATHER | 92191A | 92191-1177 | 1 | ||
| TUBE,FITTING-AIR FILTER | 92191B | 92191-1178 | 1 | ||
| TUBE,AIR SWITCH-VALVE | 92191C | 92191-1179 | 2 | ||
| TUBE,7X10X600 | 92191D | 92191-1207 | 1 | ||
| FITTING,T-TYPE | 92005A | 92005-1252 | 1 | CA | |
| FITTING | 92005B | 92005-1309 | 1 | CNUS | |
| TUBE,4X9X450 | 92190 | 92190-1062 | 1 | CA | |
| TUBE,3WAY-AVT | 92190A | 92190-1558 | 1 | CNUS |
