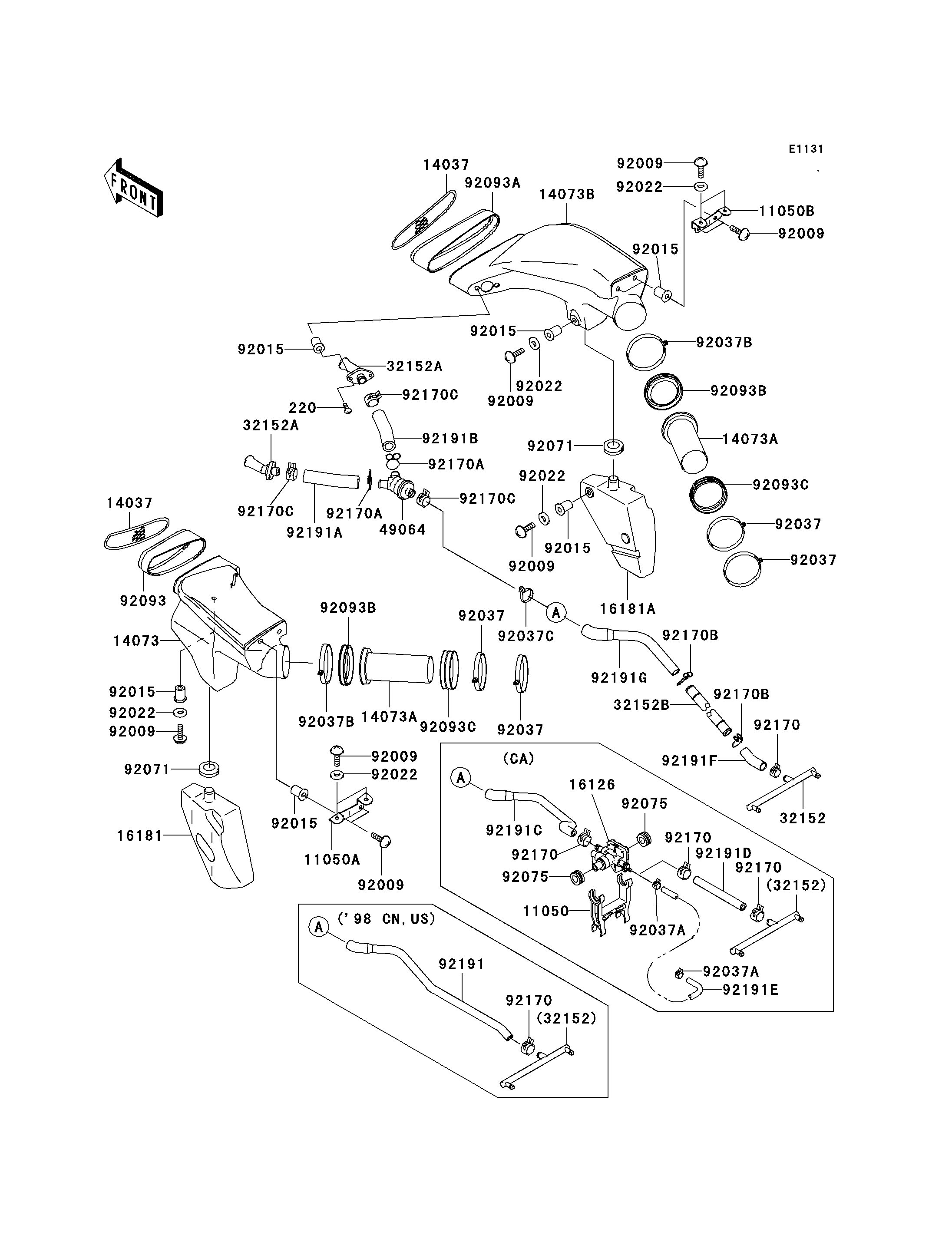

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11050A
11050A
11050B
11050B
14037
14037
14037
14037
14073
14073
14073A
14073A
14073A
14073A
14073B
14073B
16181
16181
16181A
16181A
32152
32152
32152A
32152A
32152A
32152A
49064
49064
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92037
92037
92037
92037
92037
92037
92037
92037
92037B
92037B
92037B
92037B
92037C
92037C
92071
92071
92071
92071
92093
92093
92093A
92093A
92093B
92093B
92093B
92093B
92093C
92093C
92093C
92093C
92170A
92170A
92170A
92170A
92170C
92170C
92170C
92170C
92170C
92170C
220
220
92191A
92191A
92191B
92191B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LH | 11050A | 11050-1513 | 1 | ||
| BRACKET,RH | 11050B | 11050-1514 | 1 | ||
| SCREEN,AIR DUCT | 14037 | 14037-1246 | 2 | ||
| DUCT,AIR LH,M.F.C.GRAY | 14073 | 14073-1705-E4 | 1 | ||
| DUCT,AIR FILTER | 14073A | 14073-1706 | 2 | ||
| DUCT,AIR RH,M.F.C.GRAY | 14073B | 14073-1707-E4 | 1 | ||
| TANK-RESONATOR | 16181 | 16181-1089 | 1 | ||
| TANK-RESONATOR | 16181A | 16181-1090 | 1 | ||
| PIPE | 32152 | 32152-1042 | 1 | ||
| PIPE | 32152A | 32152-1568 | 2 | ||
| FILTER-AIR | 49064 | 49064-1061 | 1 | ||
| SCREW,5X16,BLACK | 92009 | 92009-1654 | 14 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 14 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 10 | ||
| CLAMP,AIR FILTER,ID=76,BLACK | 92037 | 92037-129 | 4 | ||
| CLAMP | 92037B | 92037-1654 | 2 | ||
| CLAMP,SPEED,L=80.5 | 92037C | 92037-1903 | 1 | ||
| GROMMET,AIR FILTER | 92071 | 92071-1042 | 2 | ||
| SEAL,AIR DUCT,LH | 92093 | 92093-1454 | 1 | ||
| SEAL,AIR DUCT,RH | 92093A | 92093-1455 | 1 | ||
| SEAL,AIR FILTER DUCT | 92093B | 92093-1456 | 2 | ||
| SEAL | 92093C | 92093-1470 | 2 | ||
| CLAMP | 92170A | 92170-1486 | 2 | ||
| CLAMP | 92170C | 92170-1909 | 3 | ||
| SCREW-PAN-CROSS | 220 | 220D0520 | 4 | ||
| TUBE,LH | 92191A | 92191-1181 | 1 | ||
| TUBE,RH | 92191B | 92191-1182 | 1 | ||
| BRACKET | 11050 | 11050-1509 | 1 | CA | |
| VALVE | 16126 | 16126-1346 | 1 | CA | |
| PIPE | 32152B | 32152-1975 | 1 | CNUS | |
| CLAMP,TUBE | 92037A | 92037-1461 | 2 | CA | |
| DAMPER,MUFFLER | 92075 | 92075-1621 | 2 | CA | |
| CLAMP | 92170 | 92170-1118 | 1 | CNUS | |
| CLAMP | 92170 | 92170-1118 | 3 | CA | |
| CLAMP | 92170B | 92170-1695 | 2 | CNUS | |
| TUBE | 92191C | 92191-1190 | 1 | CA | |
| TUBE | 92191D | 92191-1191 | 1 | CA | |
| TUBE | 92191E | 92191-1192 | 1 | CA | |
| TUBE,9X15X40 | 92191F | 92191-1341 | 1 | CNUS | |
| TUBE,AIR VENT | 92191G | 92191-1342 | 1 | CNUS |
