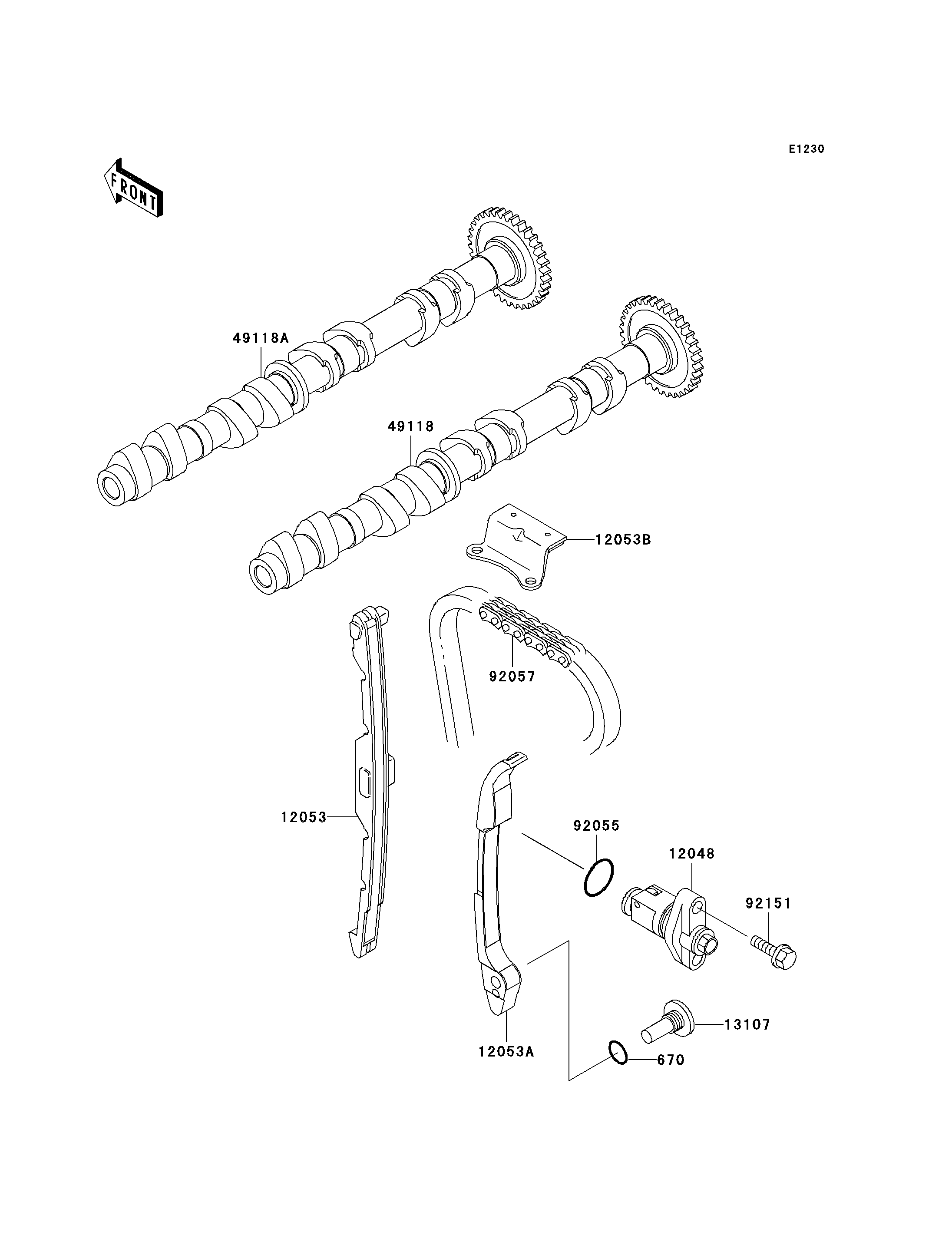

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,14MM 670 670D2014 1
TENSIONER-ASSY 12048 12048-1143 1
GUIDE-CHAIN,FR 12053 12053-1398 1
GUIDE-CHAIN,RR 12053A 12053-1399 1
GUIDE-CHAIN,UPP 12053B 12053-1400 1
SHAFT 13107 13107-1376 1
CAMSHAFT-COMP,INTAKE 49118 49118-1158 1
CAMSHAFT-COMP,EXHAUST 49118A 49118-1159 1
RING-O 92055 92055-086 1
CHAIN,CAM,92RH2015-126M 92057 92057-1453 1
BOLT,6X25 92151 92151-1130 2
