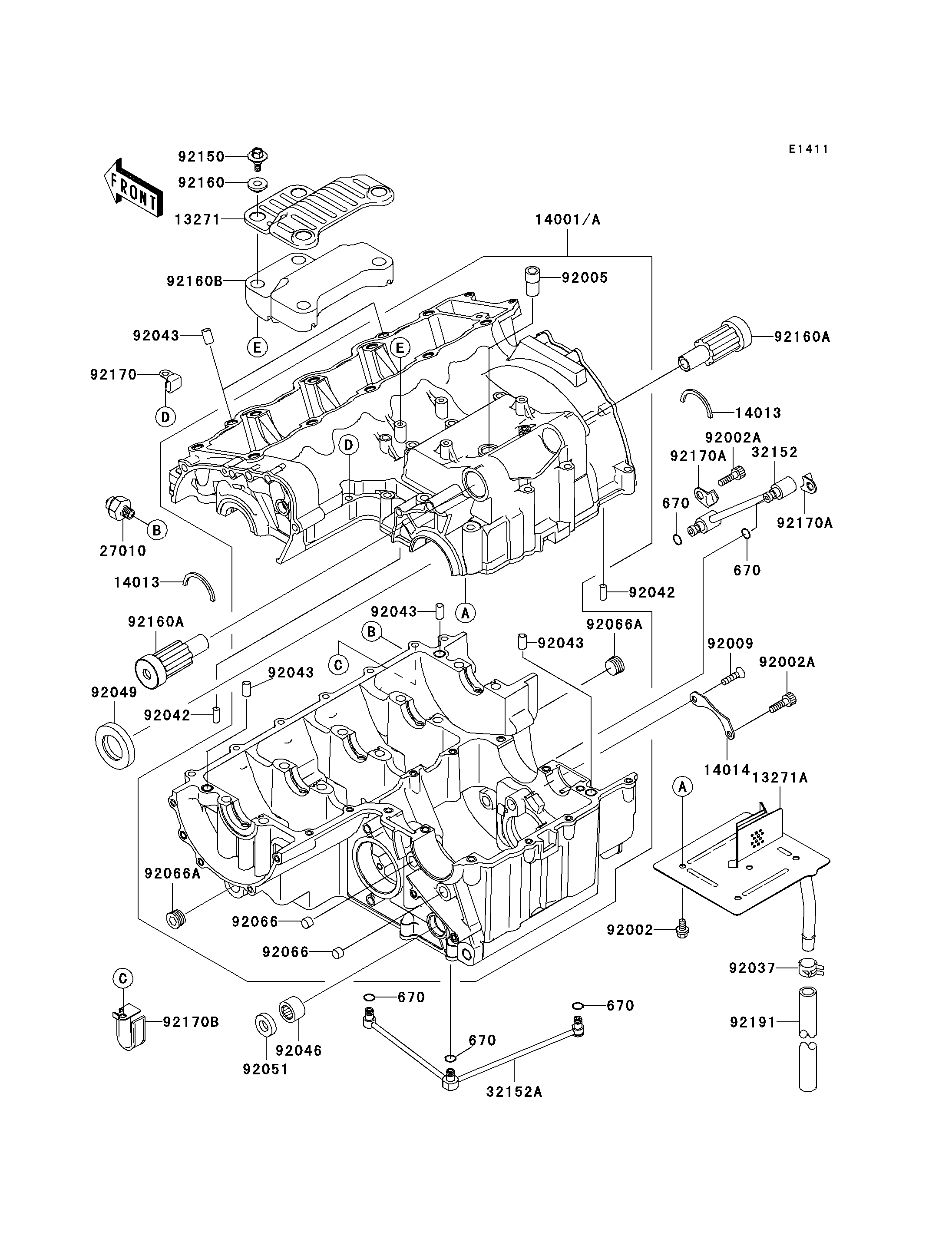

1999 Ninja® ZX™-9R - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
670
670
670
670
670
13271
13271A
14001A
14013
14013
14014
27010
32152
32152A
92002
92002A
92002A
92005
92009
92037
92042
92042
92043
92043
92043
92043
92046
92049
92051
92066
92066
92066A
92066A
92150
92160
92160A
92160A
92160B
92170
92170A
92170A
92170B
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING 670 670D1505 5
PLATE 13271 13271-1058 1
PLATE,BREATHER 13271A 13271-1085 1
SET-CRANKCASE 14001A 14001-1258 1
RING-POSITION 14013 14013-1051 2
PLATE-POSITION 14014 14014-1140 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE,RH,L=76.8 32152 32152-1545 1
PIPE,L=137.2 32152A 32152-1546 1
BOLT,6X10 92002 92002-1449 5
BOLT,SOCKET,6X16 92002A 92002-1778 3
FITTING,BREATHER 92005 92005-1238 1
SCREW,6X16 92009 92009-1360 1
CLAMP 92037 92037-1181 1
PIN,DOWEL,6X16 92042 92042-016 2
PIN,DOWEL,10X14 92043 92043-1037 5
BEARING-NEEDLE,HK1312 92046 92046-1148 1
SEAL-OIL,TC32578 92049 92049-1474 1
SEAL-OIL,TB13225.5 92051 92051-005 1
PLUG 92066 92066-1110 2
PLUG 92066A 92066-1262 2
BOLT 92150 92150-1981 4
DAMPER 92160 92160-1681 4
DAMPER 92160A 92160-1868 2
DAMPER 92160B 92160-1925 1
CLAMP 92170 92170-1577 1
CLAMP 92170A 92170-1578 2
CLAMP 92170B 92170-1911 1
TUBE,BREATHER 92191 92191-1167 1
