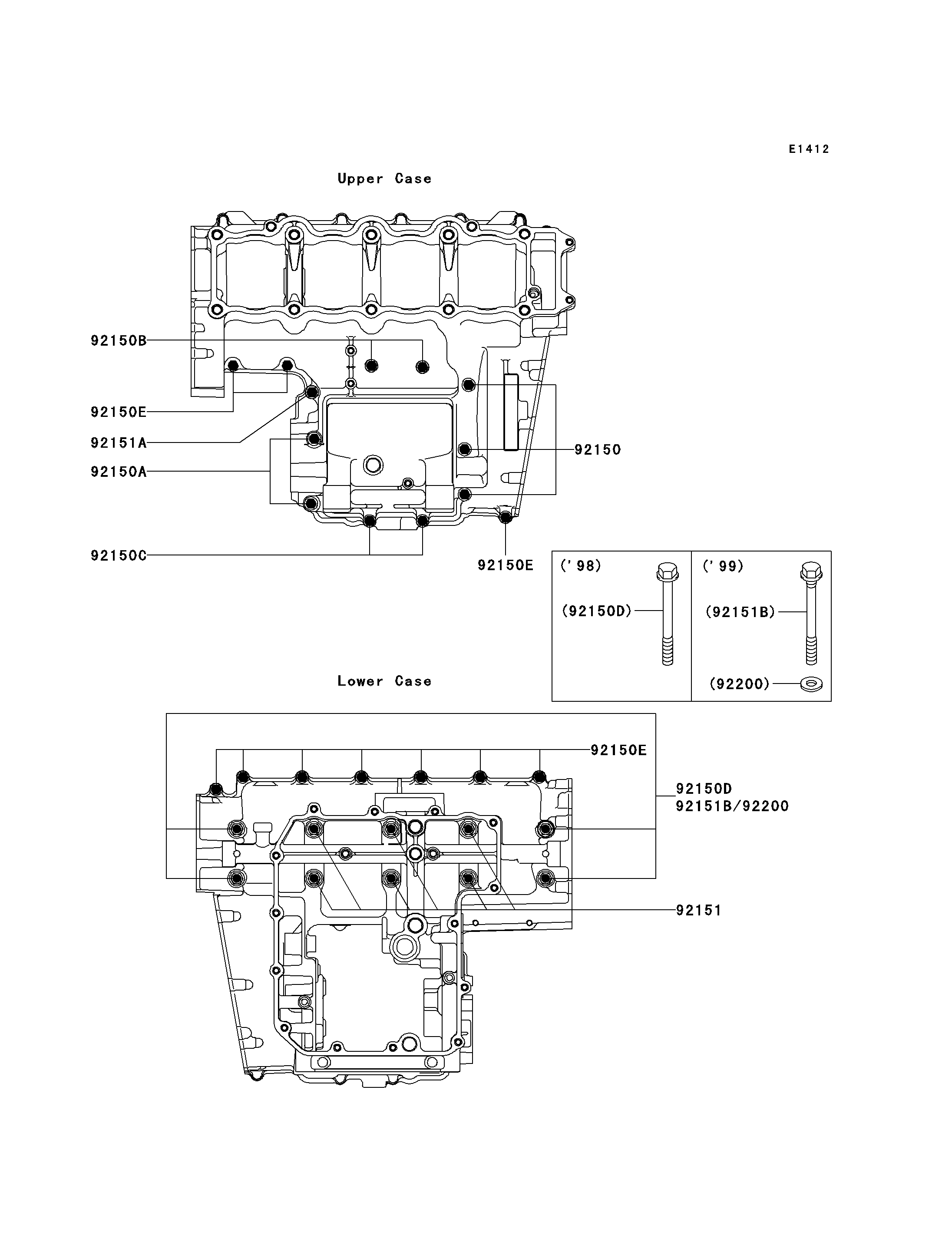

1999 Ninja® ZX-9R - Crankcase Bolt Pattern

92150
92150A
92150B
92150C
92150E
92150E
92150E
92151
92151A
92151B
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,7X85 92150 92150-1251 3
BOLT,8X70 92150A 92150-1483 2
BOLT,6X60 92150B 92150-1548 2
BOLT,6X90 92150C 92150-1622 2
BOLT,6X40 92150E 92150-1794 10
BOLT,9X81 92151 92151-1222 6
BOLT,7X50 92151A 92151-1223 1
BOLT,9X95 92151B 92151-1378 4
WASHER 92200 92200-1426 4
