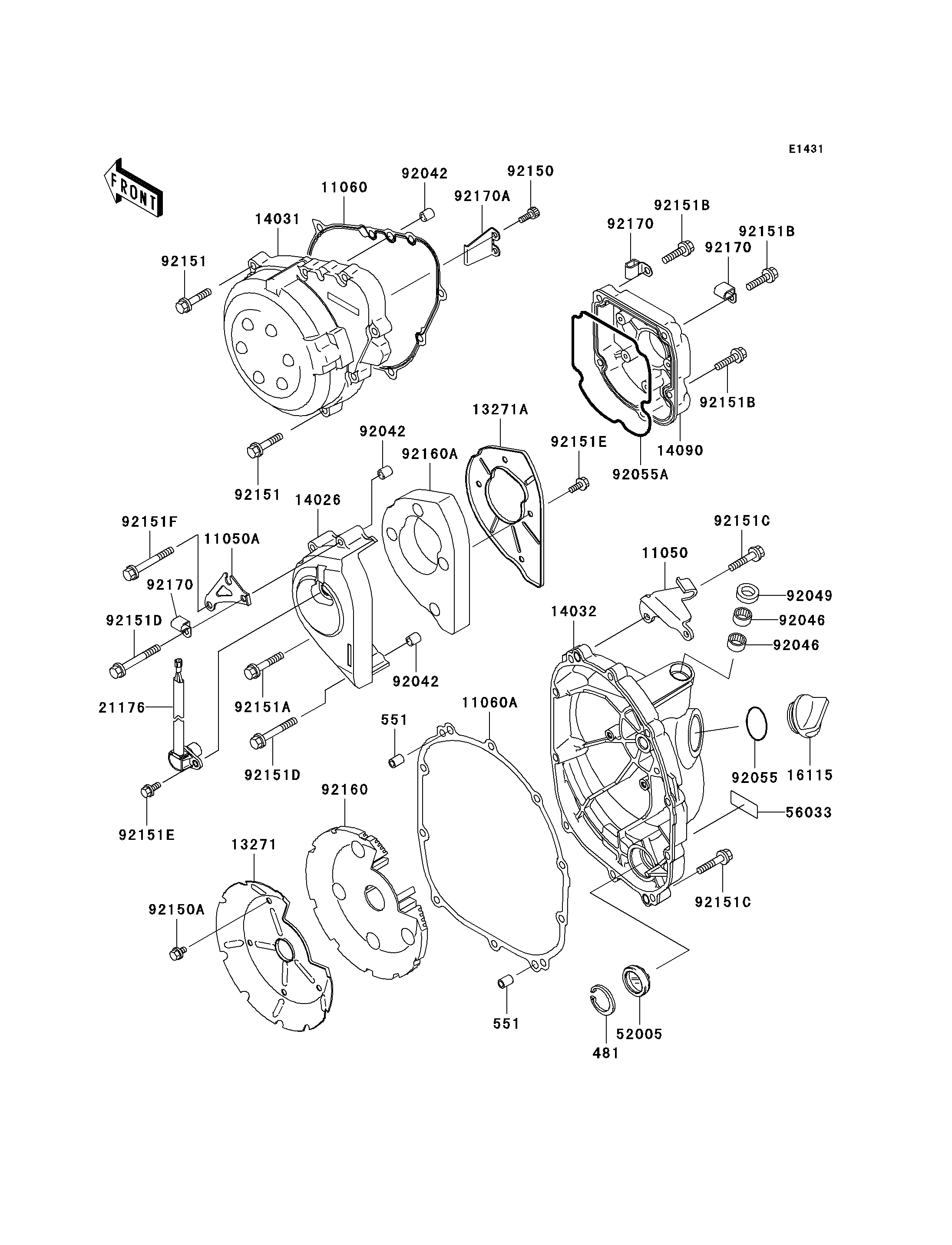

1999 Ninja® ZX™-9R - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
481
551
551
11050
11050A
11060
11060A
13271
13271A
14026
14031
14032
14090
16115
21176
52005
56033
92042
92042
92042
92046
92046
92049
92055
92055A
92150
92150A
92151
92151
92151A
92151B
92151B
92151B
92151C
92151C
92151D
92151D
92151E
92151E
92151F
92160
92160A
92170
92170
92170
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,30MM 481 481J3000 1
PIN-DOWEL,8X14 551 551A0814 2
BRACKET,CLUTCH CABLE 11050 11050-1435 1
BRACKET,CABLE 11050A 11050-1539 1
GASKET,GENERATOR COVER 11060 11060-1854 1
GASKET,CLUTCH COVER 11060A 11060-1855 1
PLATE 13271 13271-1053 1
PLATE 13271A 13271-1055 1
COVER-CHAIN 14026 14026-1247 1
COVER-GENERATOR 14031 14031-1371 1
COVER-CLUTCH 14032 14032-1482 1
COVER,PULSE 14090 14090-1859 1
CAP-OIL FILLER 16115 16115-1009 1
SENSOR,SPEED 21176 21176-1076 1
GAUGE 52005 52005-1120 1
LABEL-MANUAL,OIL CAPACITY 56033 56033-1075 1
PIN,DOWEL,6.3X8X14 92042 92042-007 4
BEARING-NEEDLE,HK1210 92046 92046-1010 2
SEAL-OIL,CLUTCH RELEASE 92049 92049-1475 1
RING-O,31.5X2.6 92055 92055-049 1
RING-O,PULSE COVER 92055A 92055-1570 1
BOLT,SOCKET,5X14 92150 92150-1180 2
BOLT,5X8 92150A 92150-1406 4
BOLT,6X30 92151 92151-1134 8
BOLT,6X35 92151A 92151-1135 1
BOLT,6X25 92151B 92151-1225 5
BOLT,6X30 92151C 92151-1228 10
BOLT,6X50 92151D 92151-1234 2
BOLT,5X12 92151E 92151-1249 5
BOLT,6X45 92151F 92151-1336 1
DAMPER 92160 92160-1920 1
DAMPER 92160A 92160-1943 1
CLAMP 92170 92170-1577 3
CLAMP 92170A 92170-1894 1
