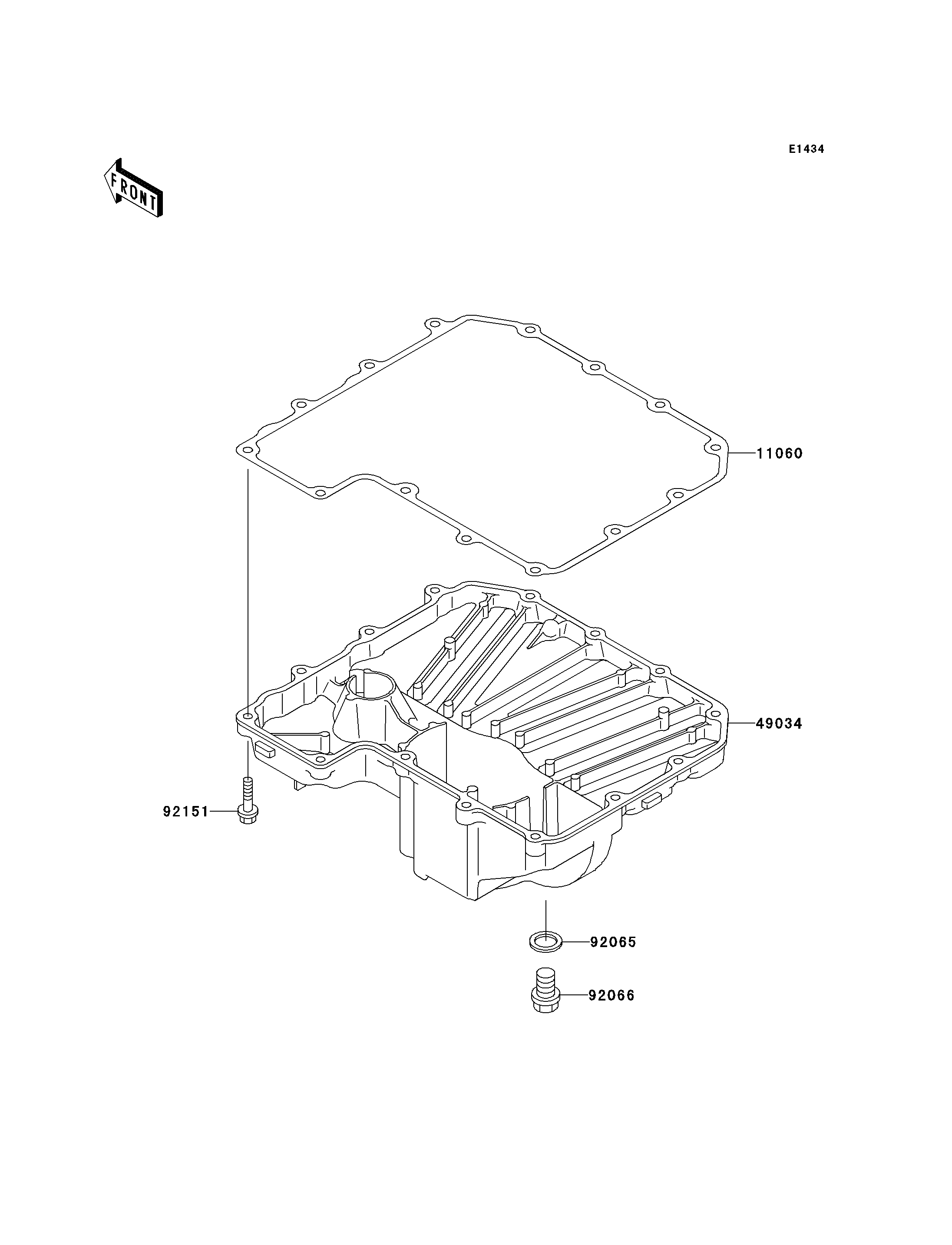

11060
49034
92065
92066
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PAN 11060 11060-1819 1
PAN-OIL 49034 49034-1128 1
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
BOLT,6X25 92151 92151-1225 14
