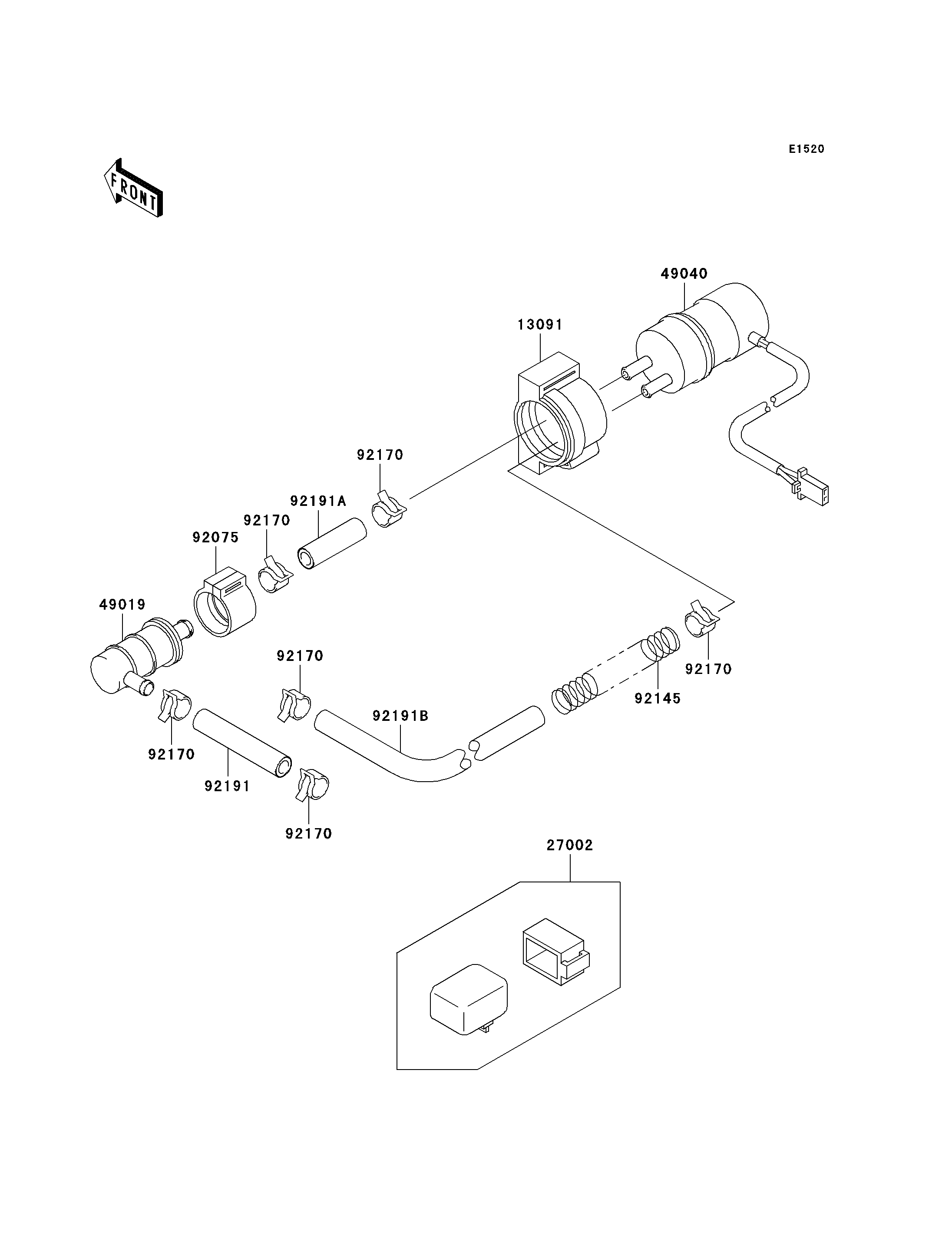

13091
27002
49019
49040
92075
92145
92170
92170
92170
92170
92170
92170
92191
92191A
92191B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,FUEL PUMP 13091 13091-1738 1
RELAY-ASSY 27002 27002-1065 1
FILTER-FUEL 49019 49019-1083 1
PUMP-FUEL 49040 49040-1064 1
DAMPER,FUEL FILTER 92075 92075-1853 1
SPRING,TUBE 92145 92145-1135 1
CLAMP 92170 92170-1118 6
TUBE,FILTER-TAP 92191 92191-1173 1
TUBE,PUMP-FILTER 92191A 92191-1174 1
TUBE,CARBURETOR-PUMP 92191B 92191-1175 1
