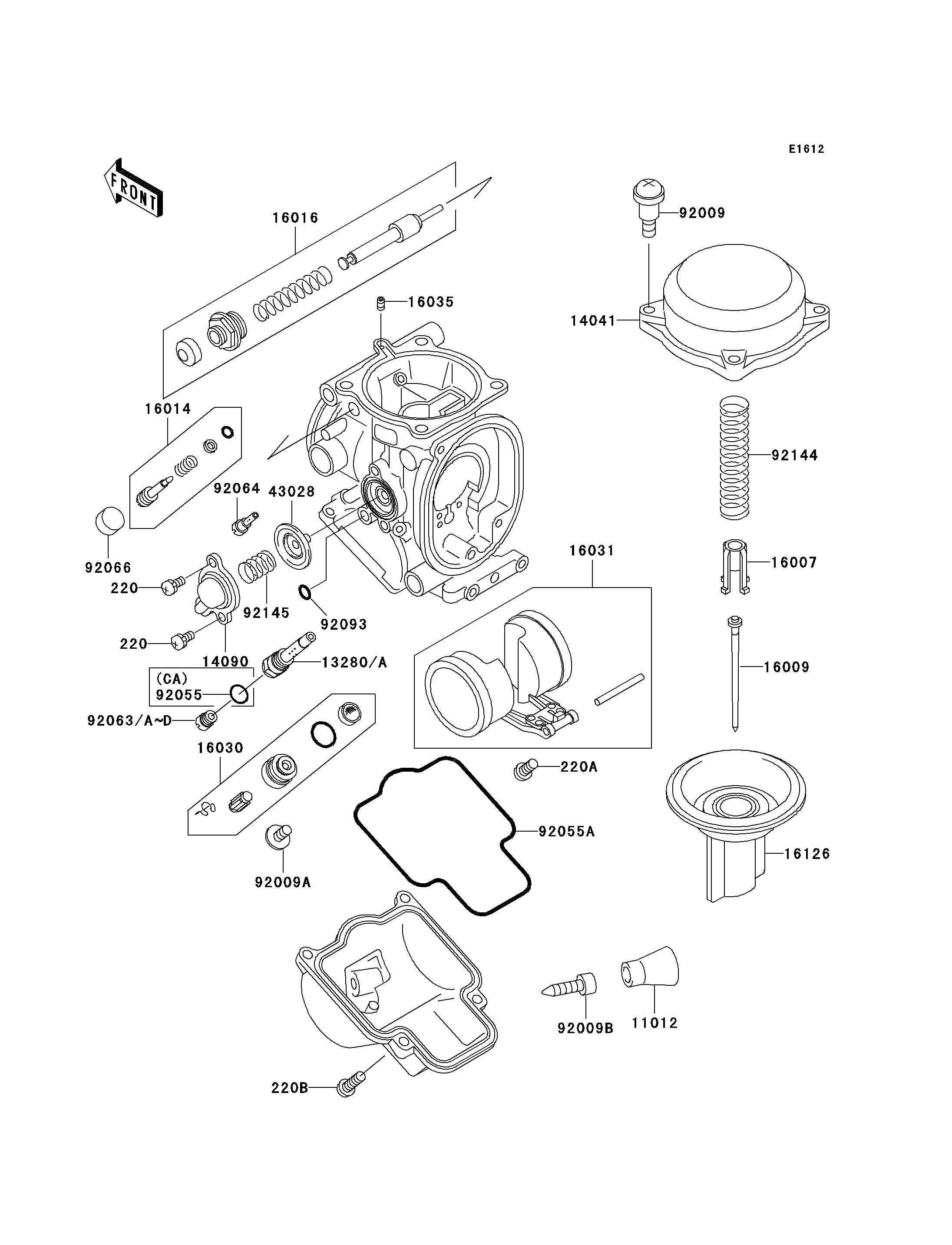

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
220
220
220A
220B
11012
14041
14090
16007
16009
16014
16016
16030
16031
16035
16126
43028
92009
92009A
92009B
92055A
92063
92063A
92063B
92063C
92063D
92064
92066
92093
92144
92145
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-CROS | 220 | 220B0408 | 8 | ||
SCREW-PAN-CROS | 220A | 220D0408 | 4 | ||
SCREW-PAN-CROS | 220B | 220D0414 | 16 | ||
CAP,DRAIN SCREW | 11012 | 11012-1675 | 4 | ||
COVER-COMP,MIXING | 14041 | 14041-1100 | 4 | ||
COVER,AIR CUT VALVE | 14090 | 14090-1959 | 4 | ||
SEAT-SPRING,VALVE | 16007 | 16007-1117 | 4 | ||
NEEDLE-JET,N74V | 16009 | 16009-1998 | 4 | ||
SCREW-PILOT AIR | 16014 | 16014-1090 | 4 | ||
PLUNGER,STARTER | 16016 | 16016-1090 | 4 | ||
VALVE-FLOAT | 16030 | 16030-1077 | 4 | ||
FLOAT | 16031 | 16031-1080 | 4 | ||
JET-AIR,LEAK | 16035 | 16035-1055 | 4 | ||
VALVE,VACUUM | 16126 | 16126-1359 | 4 | ||
DIAPHRAGM,AIR CUT VALVE | 43028 | 43028-1085 | 4 | ||
SCREW,4X4.4 | 92009 | 92009-1549 | 15 | ||
SCREW,4X8 | 92009A | 92009-1550 | 4 | ||
SCREW,DRAIN,M6X0.75 | 92009B | 92009-1551 | 4 | ||
RING-O,FLOAT CHAMBER | 92055A | 92055-1426 | 4 | ||
JET-MAIN,#150 | 92063 | 92063-1330 | 4 | (OPTION) | |
JET-MAIN,#152 | 92063A | 92063-1331 | 4 | (OPTION) | |
JET-MAIN,#155 | 92063B | 92063-1332 | 4 | ||
JET-MAIN,#158 | 92063C | 92063-1344 | 4 | (OPTION) | |
JET-MAIN,#160 | 92063D | 92063-1345 | 4 | (OPTION) | |
JET-PILOT,#38 | 92064 | 92064-1119 | 4 | ||
PLUG,PILOT AIR SCREW,6.9X2 | 92066 | 92066-1051 | 4 | ||
SEAL,"U"RING | 92093 | 92093-1046 | 4 | ||
SPRING,VACUUM VALVE | 92144 | 92144-1962 | 4 | ||
SPRING,AIR CUT VALVE | 92145 | 92145-1149 | 4 | ||
HOLDER,JET NEEDLE | 13280 | 13280-1084 | 4 | CNUS | |
HOLDER,JET NEEDLE | 13280A | 13280-1085 | 4 | CA | |
RING-O | 92055 | 92055-1223 | 4 | CA |
