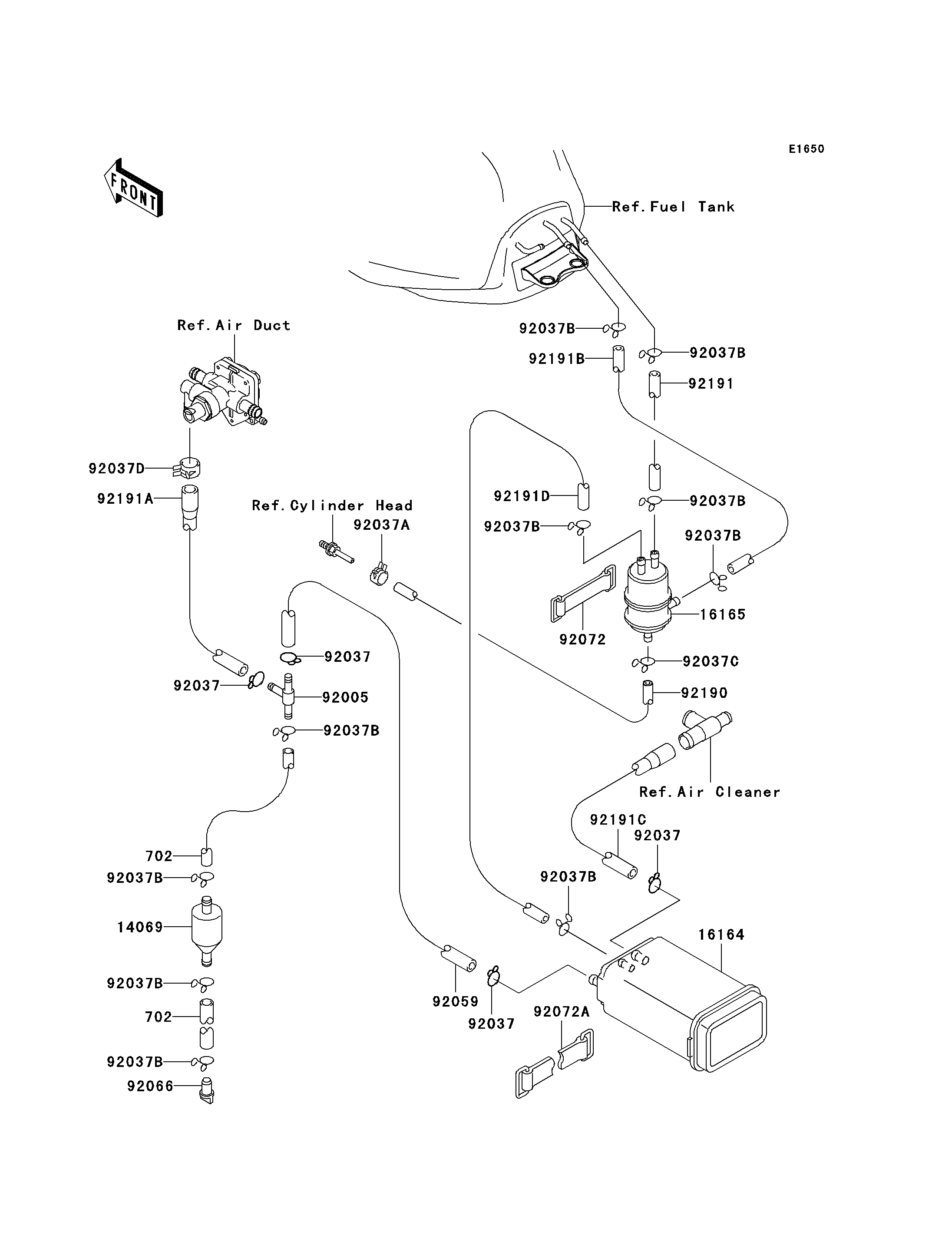

1999 Ninja® ZX™-9R - Fuel Evaporative System
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TUBE-RUBBER | 702 | 702A07150 | 2 | CA | |
| BREATHER | 14069 | 14069-1051 | 1 | CA | |
| CANISTER | 16164 | 16164-1052 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| FITTING,T-TYPE | 92005 | 92005-1119 | 1 | CA | |
| CLAMP,HOSE | 92037 | 92037-1104 | 4 | CA | |
| CLAMP,TUBE | 92037A | 92037-1461 | 1 | CA | |
| CLAMP,TUBE | 92037B | 92037-147 | 10 | CA | |
| CLAMP | 92037C | 92037-1712 | 1 | CA | |
| CLAMP | 92037D | 92037-2082 | 1 | CA | |
| TUBE,7X12X244,YELLOW | 92059 | 92059-1763 | 1 | CA | |
| PLUG,DRAIN | 92066 | 92066-1211 | 1 | CA | |
| BAND,L=50 | 92072 | 92072-066 | 1 | CA | |
| BAND,L=150 | 92072A | 92072-1203 | 1 | CA | |
| TUBE,SEPARATOR-HOLDER,WHITE | 92190 | 92190-1523 | 1 | CA | |
| TUBE,TANK-SEPARATOR,BLUE | 92191 | 92191-1183 | 1 | CA | |
| TUBE,CANISTER-VALVE,YELLOW | 92191A | 92191-1184 | 1 | CA | |
| TUBE,SEPARATOR-TANK,RED | 92191B | 92191-1185 | 1 | CA | |
| TUBE,VALVE-CANISTER,GREEN | 92191C | 92191-1186 | 1 | CA | |
| TUBE,SEPARAT-CANISTER,BLUE | 92191D | 92191-1187 | 1 | CA |
| TUBE-RUBBER | |
| REF # | 702 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| BREATHER | |
| REF # | 14069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| SEPARATOR | |
| REF # | 16165 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| FITTING,T-TYPE | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92037C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92037D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,7X12X244,YELLOW | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| PLUG,DRAIN | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=50 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=150 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEPARATOR-HOLDER,WHITE | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,TANK-SEPARATOR,BLUE | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,CANISTER-VALVE,YELLOW | |
| REF # | 92191A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEPARATOR-TANK,RED | |
| REF # | 92191B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,VALVE-CANISTER,GREEN | |
| REF # | 92191C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEPARAT-CANISTER,BLUE | |
| REF # | 92191D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
