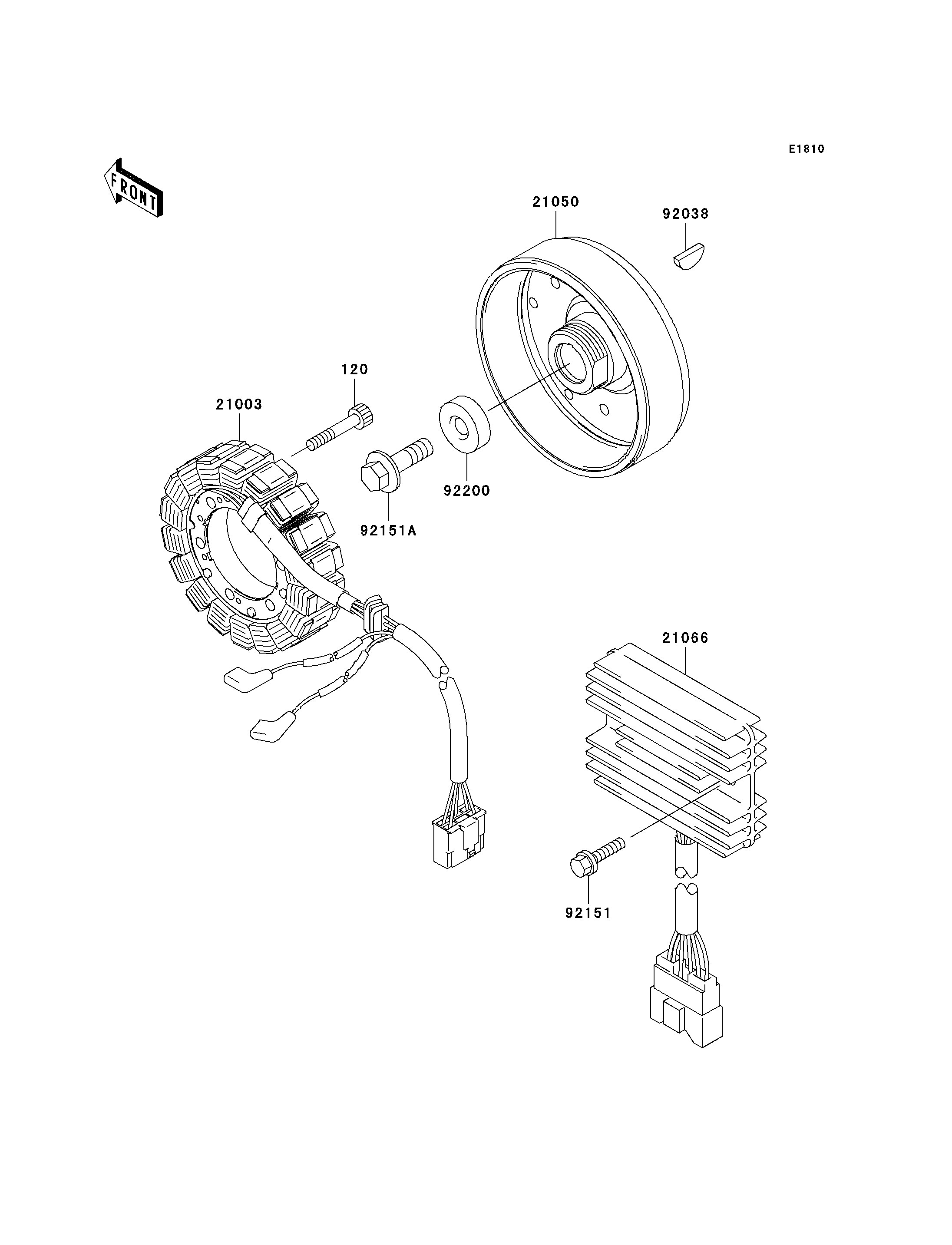

120
21003
21050
21066
92038
92151
92151A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X35 120 120P0635 4
STATOR 21003 21003-1320 1
FLYWHEEL 21050 21050-1175 1
REGULATOR-VOLTAGE 21066 21066-1109 1
KEY 92038 92038-1060 1
BOLT,6X25 92151 92151-1225 2
BOLT,FLYWHEEL 92151A 92151-1230 1
WASHER 92200 92200-1241 1
