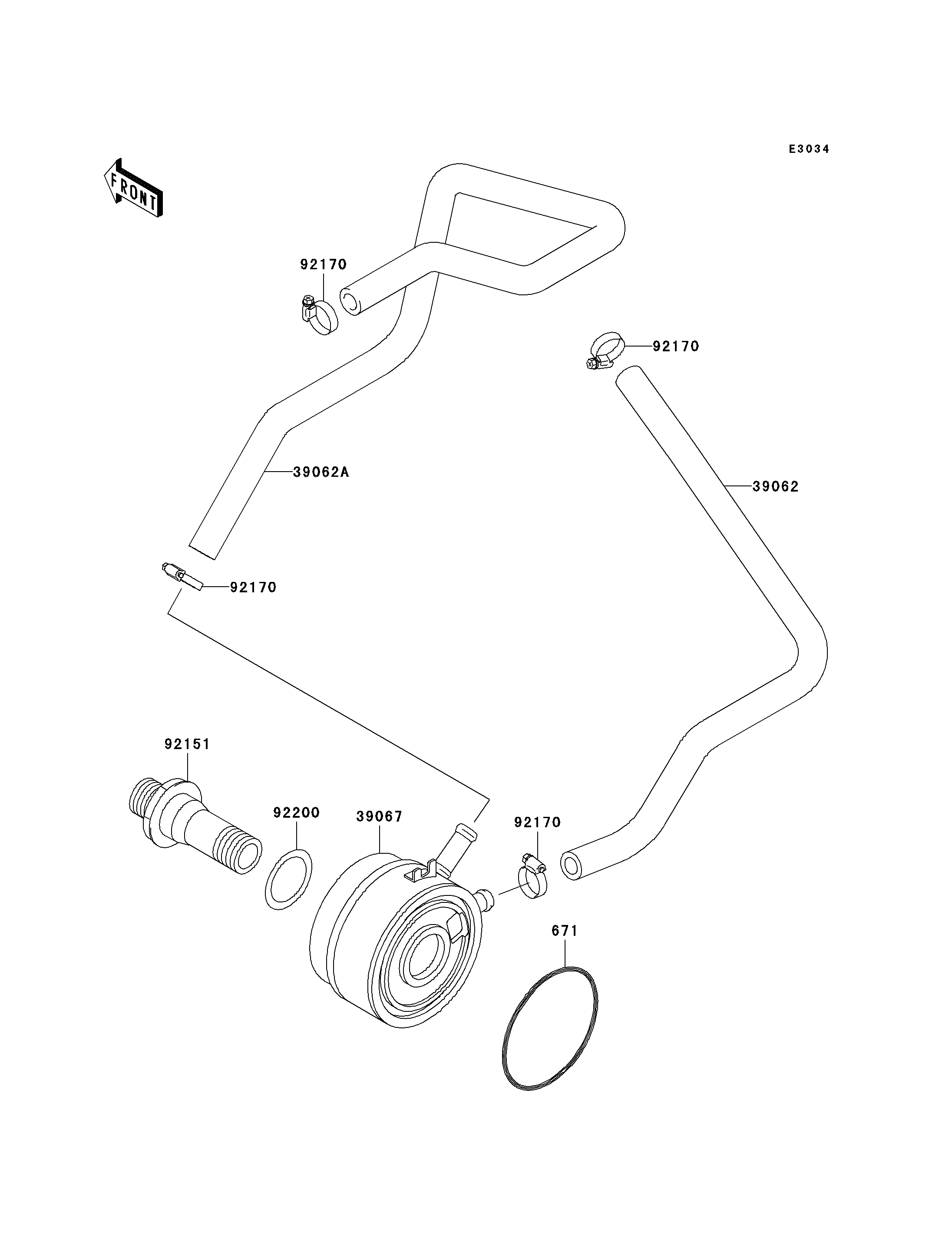

671
39062
39062A
39067
92151
92170
92170
92170
92170
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,65MM 671 671B2565 1
HOSE-COOLING,PUMP-OIL COOLER 39062 39062-1720 1
HOSE-COOLING,FITTING-COOLER 39062A 39062-1721 1
COOLER-OIL 39067 39067-1067 1
BOLT,OIL COOLER 92151 92151-1238 1
CLAMP,COOLING HOSE 92170 92170-1287 4
WASHER,OIL COOLER 92200 92200-1379 1
