32160A
92015
92015
92015
92015
92015
92015A
92015B
92022
92049
92049A
92055
92116
92116A
92200

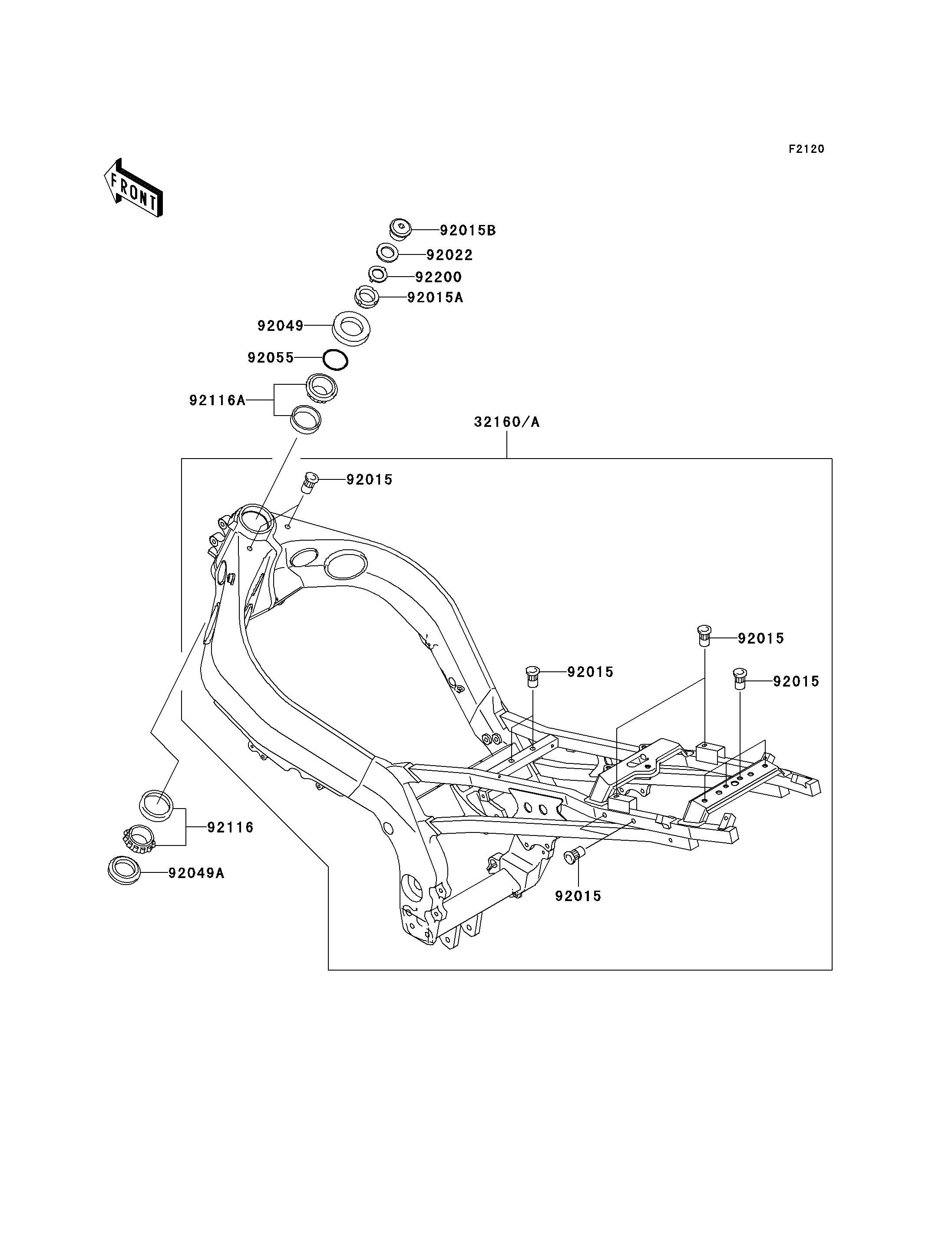

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,AL,SILVER 32160A 32160-1585-TX 1
NUT,POP,6MM,L=15 92015 92015-1791 12
NUT,STEERING STEM,35MM 92015A 92015-1848 1
NUT,STEERING,25MM 92015B 92015-1891 1
WASHER,25X36X2.3 92022 92022-250 1
SEAL-OIL,XMH 43 75 6.4J 92049 92049-1382 1
SEAL-OIL,XMHE 43 55 4J 92049A 92049-1383 1
RING-O,34.5X2.0 92055 92055-1452 1
BEARING-ROLLER,32907JR-2 92116 92116-1072 1
BEARING-ROLLER,32907JR-3 92116A 92116-1074 1
WASHER,CLAW,25.5X40X2.3 92200 92200-1083 1
