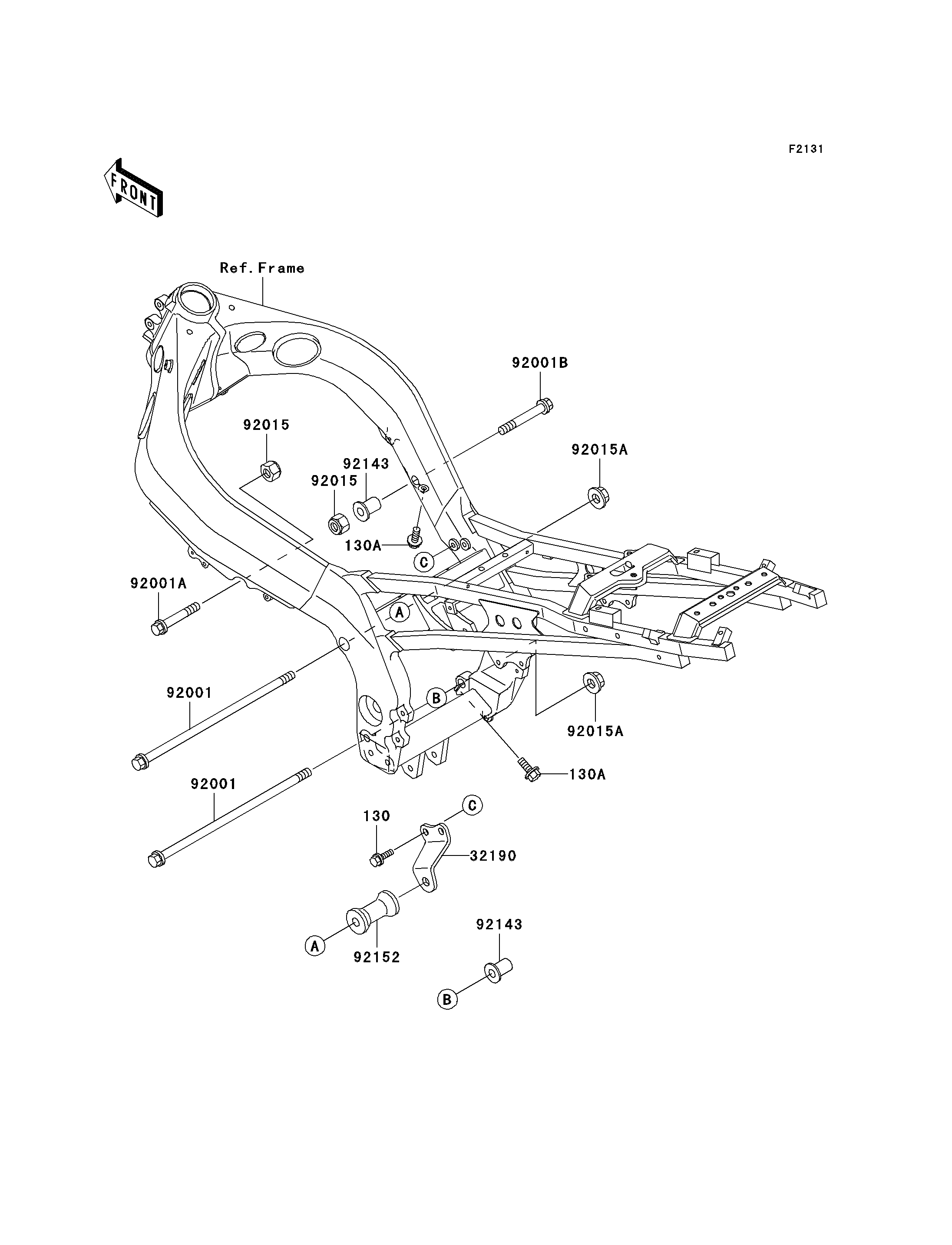

130
130A
130A
32190
92001
92001
92001A
92001B
92015
92015
92015A
92015A
92143
92143
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X20 130 130J0820 2
BOLT-FLANGED,8X25,BLACK 130A 130J0825 2
BRACKET-ENGINE,RR,UPP,RH 32190 32190-1105 1
BOLT,FLANGED,10X255,BLACK 92001 92001-1566 2
BOLT,FLANGED,10X60 92001A 92001-1617 1
BOLT,FLANGED,10X70 92001B 92001-1618 1
NUT,LOCK,10MM,BLACK 92015 92015-1189 2
NUT,FLANGED,10MM 92015A 92015-1727 2
COLLAR,ENGINE MOUNT,L=26.5 92143 92143-1615 2
COLLAR,ENGINE MOUNT,RR,UPP,LH 92152 92152-1099 1
