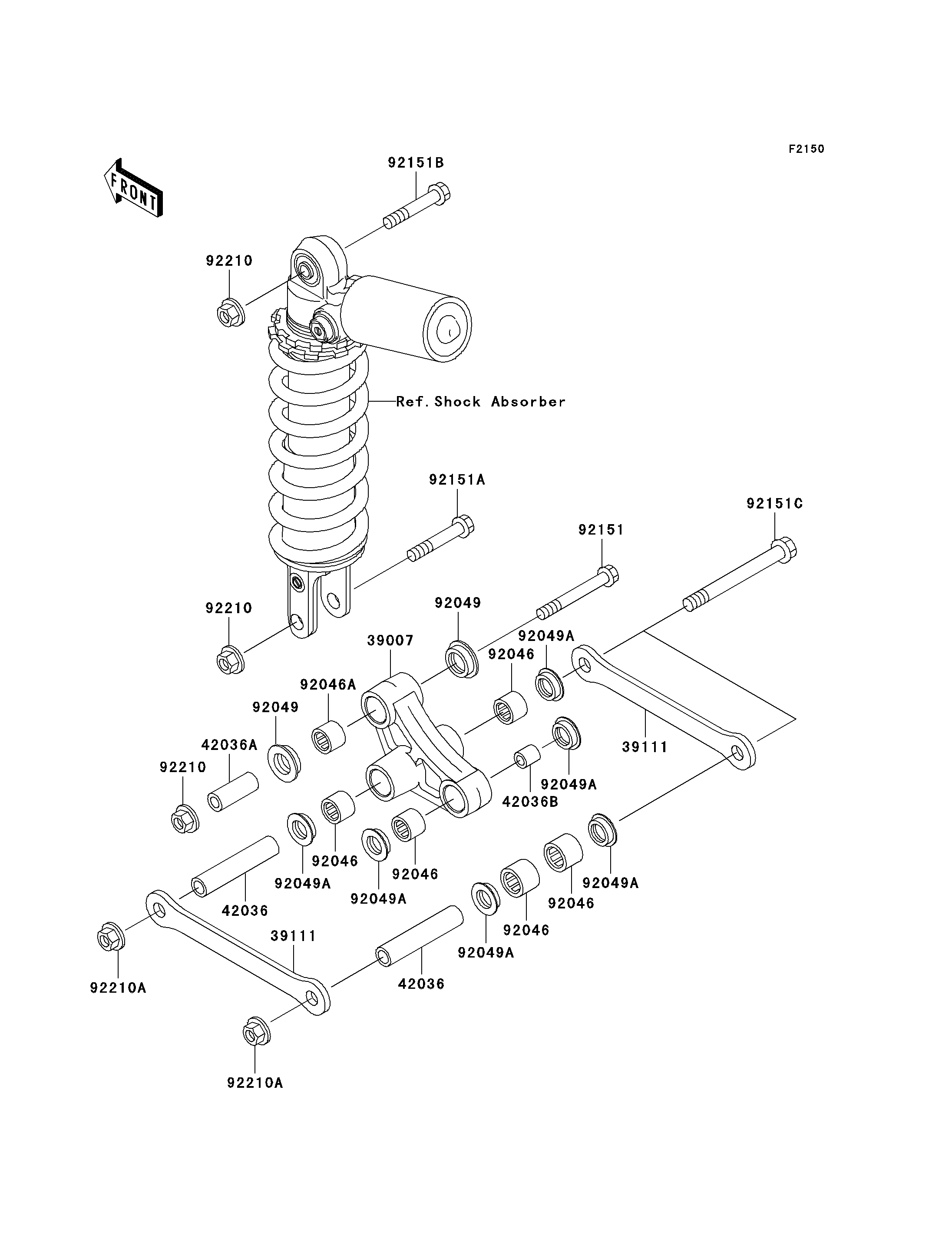

Parts Diagrams |
39007
39111
39111
42036
42036
42036A
42036B
92046
92046
92046
92046
92046
92046A
92049
92049
92049A
92049A
92049A
92049A
92049A
92049A
92151
92151A
92151B
92151C
92210
92210
92210
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ARM-SUSP,UNI TRAK | 39007 | 39007-1258 | 1 | ||
| ROD-TIE,SUSPENSION | 39111 | 39111-1158 | 2 | ||
| SLEEVE,12.1X18X88 | 42036 | 42036-1321 | 2 | ||
| SLEEVE,10.1X17X44.5 | 42036A | 42036-1342 | 1 | ||
| SLEEVE,10.1X18X32 | 42036B | 42036-1344 | 1 | ||
| BEARING-NEEDLE,18BM2416 | 92046 | 92046-1144 | 5 | ||
| BEARING-NEEDLE,BHM1725 | 92046A | 92046-1258 | 1 | ||
| SEAL-OIL,MHA17245.7F | 92049 | 92049-1223 | 2 | ||
| SEAL-OIL,KCR MF018N1 | 92049A | 92049-1493 | 6 | ||
| BOLT,FLANGED,10X78 | 92151 | 92151-1242 | 1 | ||
| BOLT,FLANGED,10X62 | 92151A | 92151-1243 | 1 | ||
| BOLT,FLANGED,10X57 | 92151B | 92151-1332 | 1 | ||
| BOLT,FLANGED,12X114 | 92151C | 92151-1373 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1139 | 3 | ||
| NUT,LOCK,FLANGED,12MM | 92210A | 92210-1150 | 2 |
| ARM-SUSP,UNI TRAK | |
| REF # | 39007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-TIE,SUSPENSION | |
| REF # | 39111 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,12.1X18X88 | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,10.1X17X44.5 | |
| REF # | 42036A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,10.1X18X32 | |
| REF # | 42036B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,18BM2416 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,BHM1725 | |
| REF # | 92046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,MHA17245.7F | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,KCR MF018N1 | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X78 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X62 | |
| REF # | 92151A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X57 | |
| REF # | 92151B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,12X114 | |
| REF # | 92151C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,12MM | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
