Parts Diagrams |

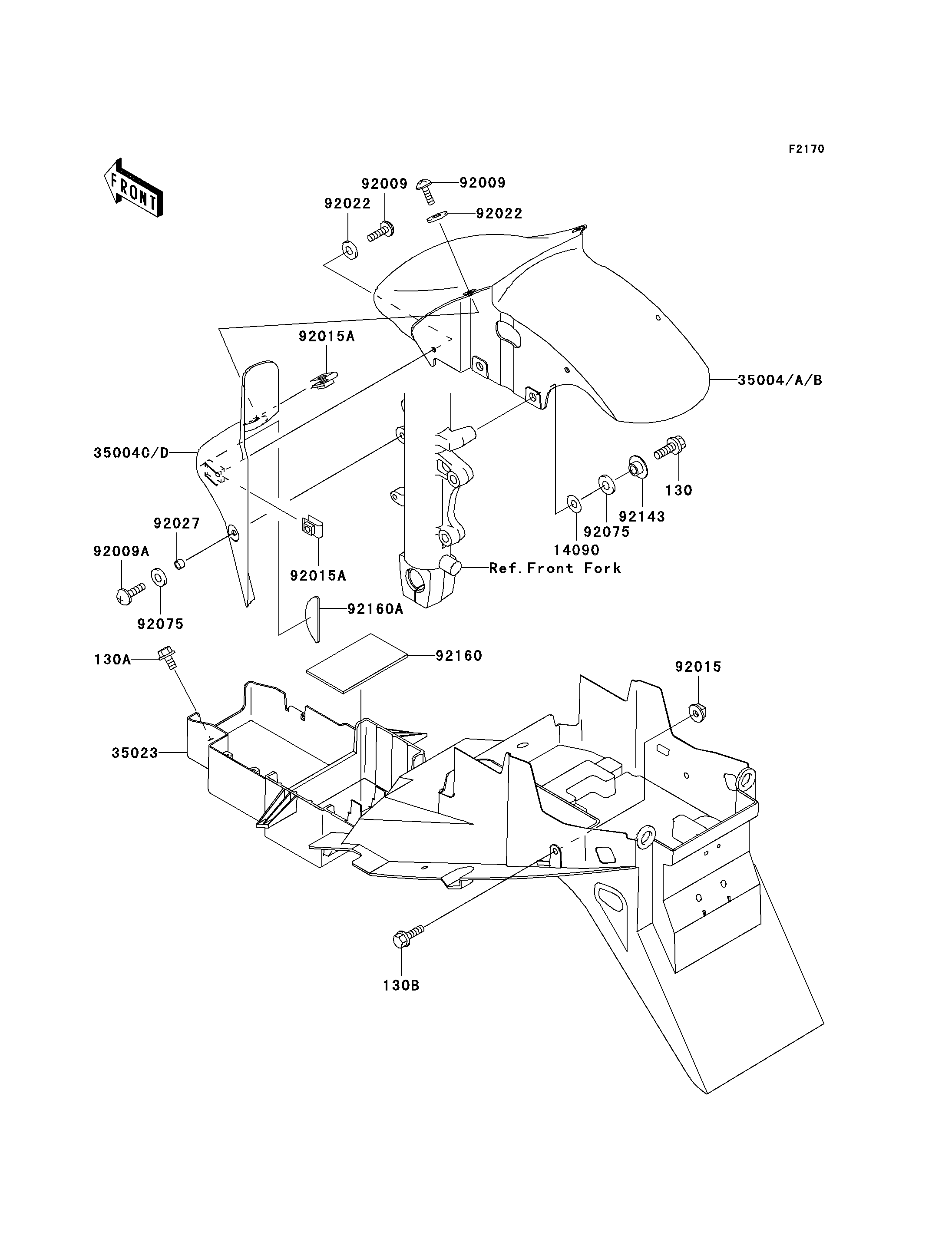

130
130A
130B
14090
35004A
35004B
35004C
35004D
35023
92009
92009
92009A
92015
92015A
92015A
92022
92022
92027
92075
92075
92143
92160
92160A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X16 | 130 | 130H0616 | 4 | ||
BOLT-FLANGED | 130A | 130J0612 | 1 | ||
BOLT-FLANGED,6X35 | 130B | 130J0635 | 2 | ||
COVER | 14090 | 14090-1505 | 4 | ||
FENDER-FRONT,CNT,C.L.BLUE | 35004A | 35004-1361-E1 | 1 | ||
FENDER-FRONT,CNT,L.GREEN | 35004B | 35004-1361-7F | 1 | ||
FENDER-FRONT,SIDE,LH,GRAY | 35004C | 35004-1390-E4 | 1 | ||
FENDER-FRONT,SIDE,RH,GRAY | 35004D | 35004-1391-E4 | 1 | ||
FENDER-REAR | 35023 | 35023-1476 | 1 | ||
SCREW,5X16 | 92009 | 92009-1654 | 4 | ||
SCREW,6X14 | 92009A | 92009-1662 | 2 | ||
NUT,6MM | 92015 | 92015-1321 | 2 | ||
NUT,5MM | 92015A | 92015-1573 | 4 | ||
WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 4 | ||
COLLAR,6.8X10X6 | 92027 | 92027-103 | 2 | ||
DAMPER | 92075 | 92075-1564 | 6 | ||
COLLAR,L=7.4 | 92143 | 92143-1019 | 4 | ||
DAMPER,BATTERY | 92160 | 92160-1284 | 1 | ||
DAMPER | 92160A | 92160-1961 | 2 | ||
FENDER-FRONT,CNT,C.P.RED | 35004 | 35004-1361-A5 | 1 | CN |
BOLT-FLANGED,6X16 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X35 | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER | |
REF # | 14090 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
FENDER-FRONT,CNT,C.L.BLUE | |
REF # | 35004A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-FRONT,CNT,L.GREEN | |
REF # | 35004B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-FRONT,SIDE,LH,GRAY | |
REF # | 35004C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-FRONT,SIDE,RH,GRAY | |
REF # | 35004D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-REAR | |
REF # | 35023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,5X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,6X14 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,5MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,NYLON,5.3X11.5X1.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR,6.8X10X6 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
COLLAR,L=7.4 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER,BATTERY | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FENDER-FRONT,CNT,C.P.RED | |
REF # | 35004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
