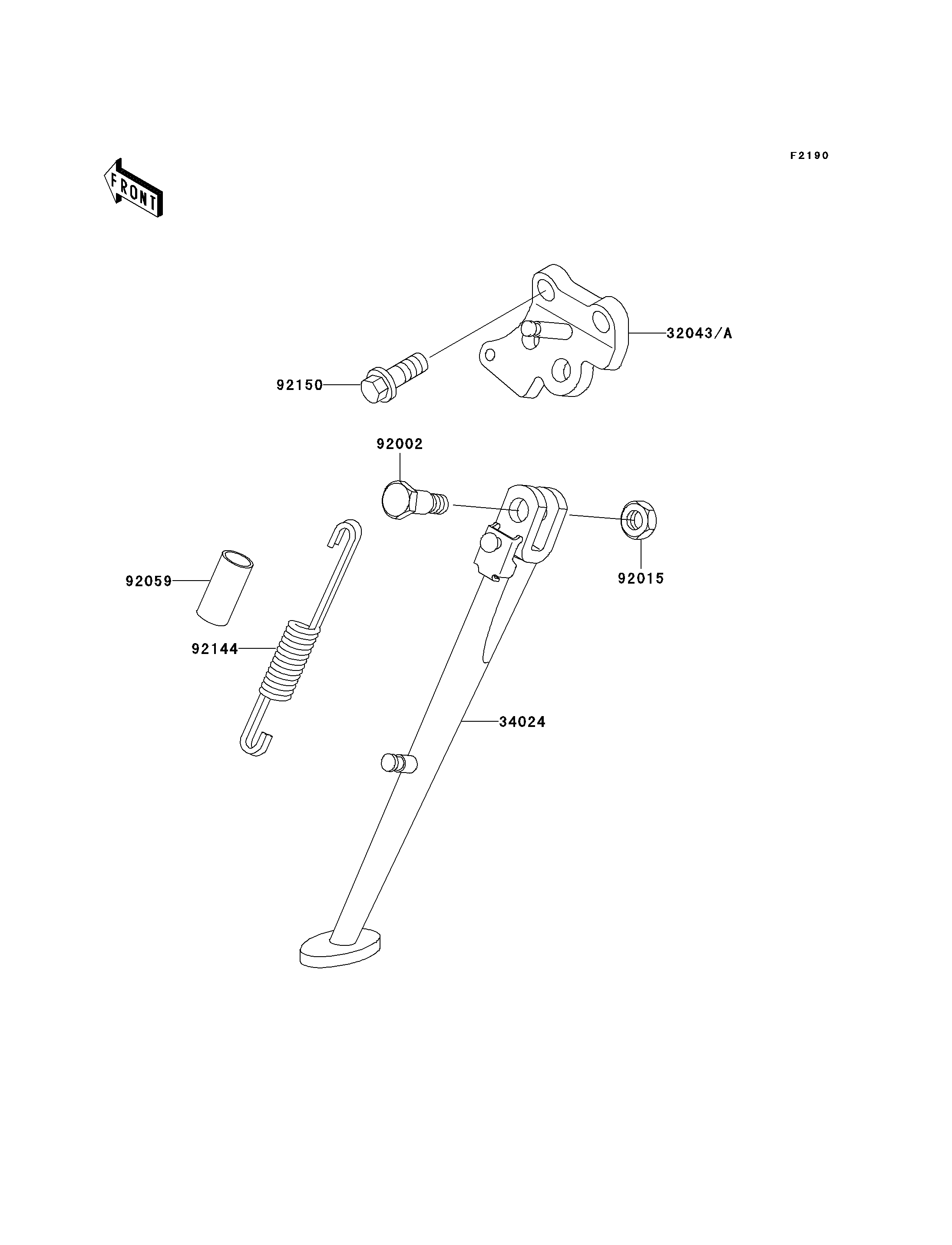

32043A
34024
92002
92015
92059
92144
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,SIDE,BLACK 32043A 32043-1435-10 1
STAND-SIDE 34024 34024-1345 1
BOLT,SIDE STAND 92002 92002-1813 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 1
TUBE,14X17X50 92059 92059-1961 1
SPRING,SIDE STAND 92144 92144-1818 1
BOLT,FLANGED,10X25 92150 92150-1065 2
