16126
16126
41009
41009B
41009C
41009D
41075
41075
41075A
41075A
41075B
41075B

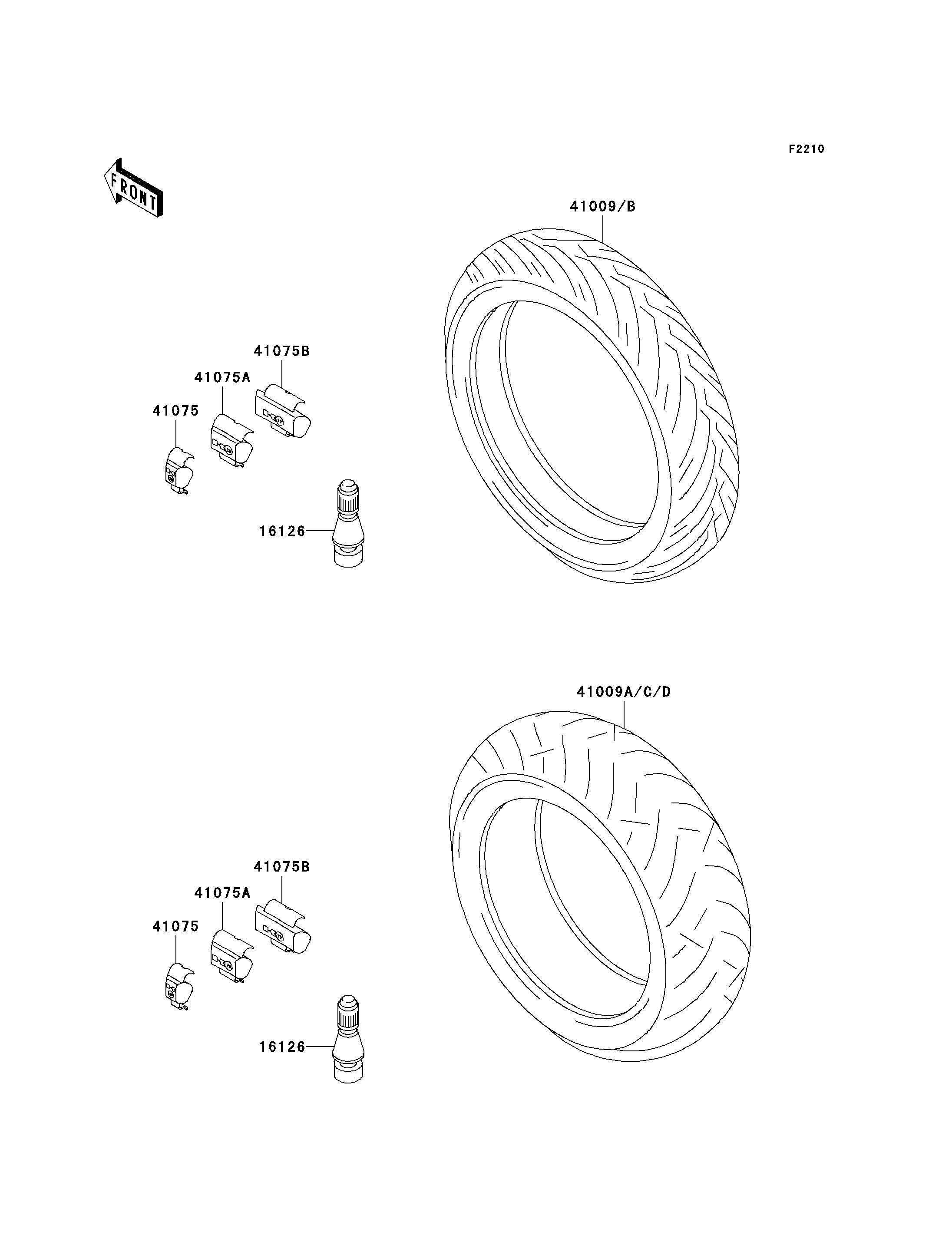

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,TIRE 16126 16126-1140 2
TIRE,FR,120/70ZR17(58W),BT56F 41009 41009-1216 1
TIRE,FR,120/70ZR17(58W),D204FW 41009B 41009-1228 1
TIRE,RR,180/55ZR17(73W),D204T 41009C 41009-1229 1
TIRE,RR,180/55ZR17(73W),BT56R 41009D 41009-1242 1
BALANCER-WHEEL,10G,SILVER 41075 41075-1014 AR
BALANCER-WHEEL,20G,SILVER 41075A 41075-1015 AR
BALANCER-WHEEL,30G,SILVER 41075B 41075-1016 AR
