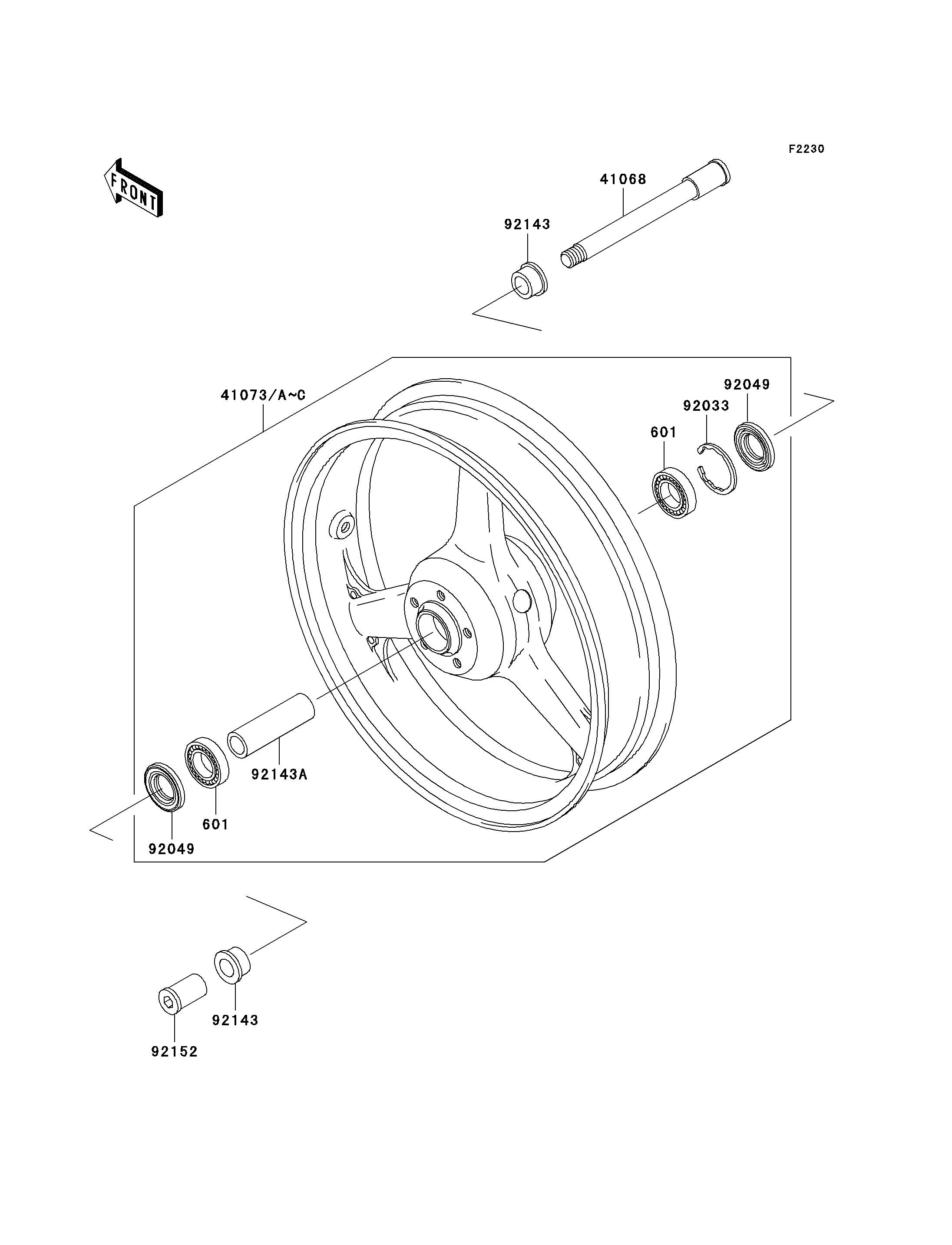

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BEARING-BALL,#6004UUC3 601 601B6004UU 2
AXLE,FR 41068 41068-1394 1
WHEEL-ASSY,FR,L.GREEN 41073 41073-1625-CJ 1
WHEEL-ASSY,FR,L.BLUE 41073B 41073-1625-E7 1
RING-SNAP,42MM 92033 92033-1041 1
SEAL-OIL,BJN30427-C3 92049 92049-1057 2
COLLAR,FR AXLE,L=19 92143 92143-1300 2
COLLAR,FR HUB,L=98 92143A 92143-1974 1
COLLAR,FR AXLE,L=43.5 92152 92152-1076 1
WHEEL-ASSY,FR,F.RED 41073C 41073-1625-X4 1 CN
