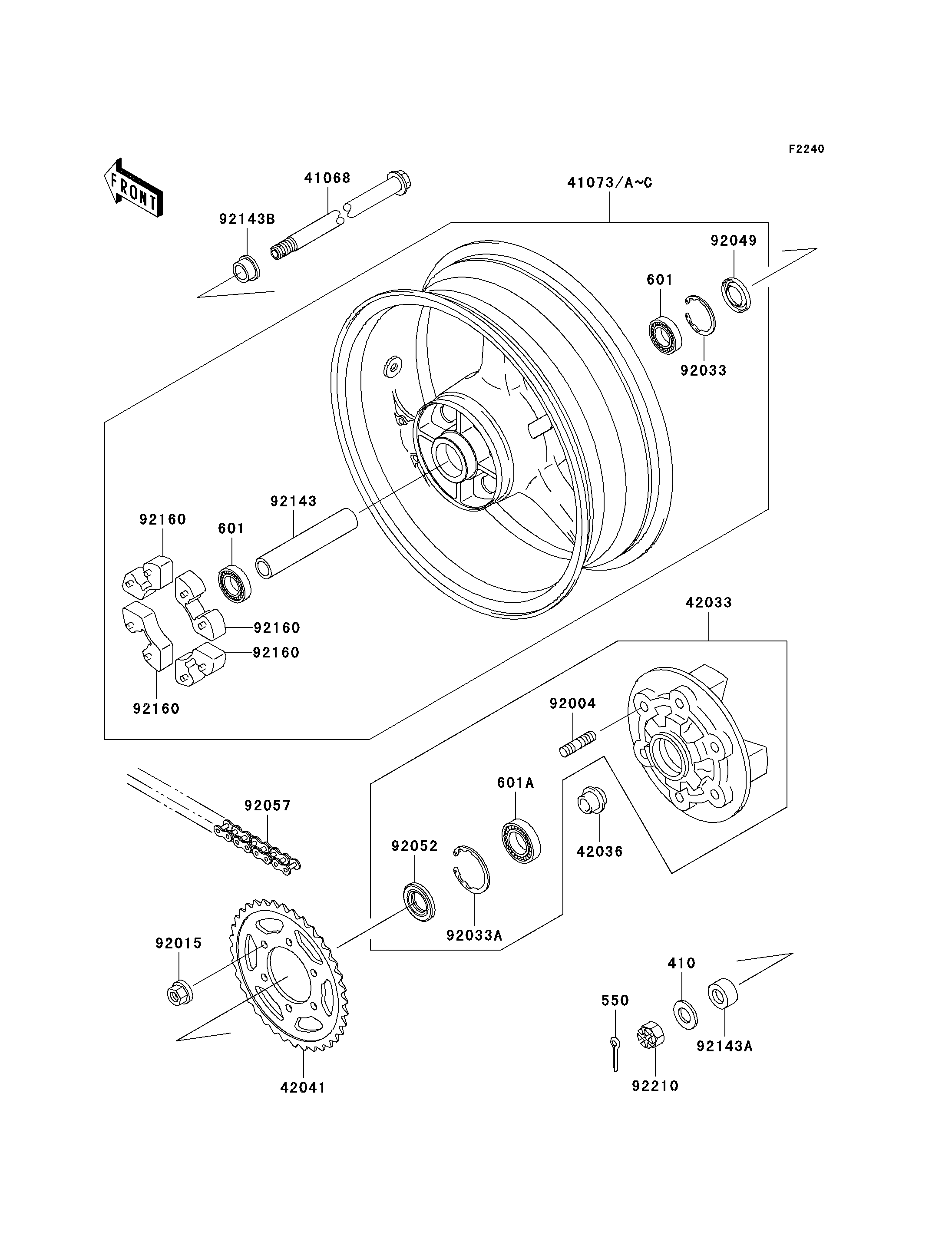

Parts Diagrams |
410
550
601
601
601A
41068
41073
41073B
42033
42036
42041
92004
92015
92033
92033A
92049
92052
92057
92143
92143A
92143B
92160
92160
92160
92160
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
W-PLAN-S,18MM | 410 | 410D1800 | 1 | ||
PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
BEARING-BALL,6204UUC3 | 601 | 601B6204UU | 2 | ||
BEARING-BALL,#6205G | 601A | 601B6205G | 1 | ||
AXLE,RR | 41068 | 41068-1403 | 1 | ||
WHEEL-ASSY,RR,L.GREEN | 41073 | 41073-1626-CJ | 1 | ||
WHEEL-ASSY,RR,L.BLUE | 41073B | 41073-1626-E7 | 1 | ||
COUPLING-ASSY,RR HUB | 42033 | 42033-1146 | 1 | ||
SLEEVE,RR HUB,L=23 | 42036 | 42036-1251 | 1 | ||
SPROCKET-HUB,41T | 42041 | 42041-1499 | 1 | ||
STUD,10X19.5 | 92004 | 92004-1151 | 6 | ||
NUT,10MM | 92015 | 92015-1720 | 6 | ||
RING-SNAP,47MM | 92033 | 92033-1042 | 1 | ||
RING-SNAP,52MM | 92033A | 92033-1043 | 1 | ||
SEAL-OIL,BJN28475 | 92049 | 92049-1056 | 1 | ||
SEAL-OIL,TWC35527 | 92052 | 92052-006 | 1 | ||
CHAIN,DRIVE,EK50UVXLX110L | 92057 | 92057-1455 | 1 | ||
COLLAR,RR HUB,L=157 | 92143 | 92143-1976 | 1 | ||
COLLAR,RR AXLE,LH,L=18 | 92143A | 92143-1977 | 1 | ||
COLLAR,RR AXLE,RH,L=17 | 92143B | 92143-1978 | 1 | ||
DAMPER,SHOCK,RR HUB | 92160 | 92160-1485 | 4 | ||
NUT,CASTLE,18MM | 92210 | 92210-1134 | 1 | ||
WHEEL-ASSY,RR,F.RED | 41073C | 41073-1626-X4 | 1 | CN |
W-PLAN-S,18MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-COTTER,4.0X35 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,6204UUC3 | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6205G | |
REF # | 601A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
AXLE,RR | |
REF # | 41068 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WHEEL-ASSY,RR,L.GREEN | |
REF # | 41073 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WHEEL-ASSY,RR,L.BLUE | |
REF # | 41073B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COUPLING-ASSY,RR HUB | |
REF # | 42033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,RR HUB,L=23 | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-HUB,41T | |
REF # | 42041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STUD,10X19.5 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
RING-SNAP,47MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,52MM | |
REF # | 92033A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,BJN28475 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TWC35527 | |
REF # | 92052 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CHAIN,DRIVE,EK50UVXLX110L | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,RR HUB,L=157 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,RR AXLE,LH,L=18 | |
REF # | 92143A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,RR AXLE,RH,L=17 | |
REF # | 92143B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,SHOCK,RR HUB | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,CASTLE,18MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WHEEL-ASSY,RR,F.RED | |
REF # | 41073C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
