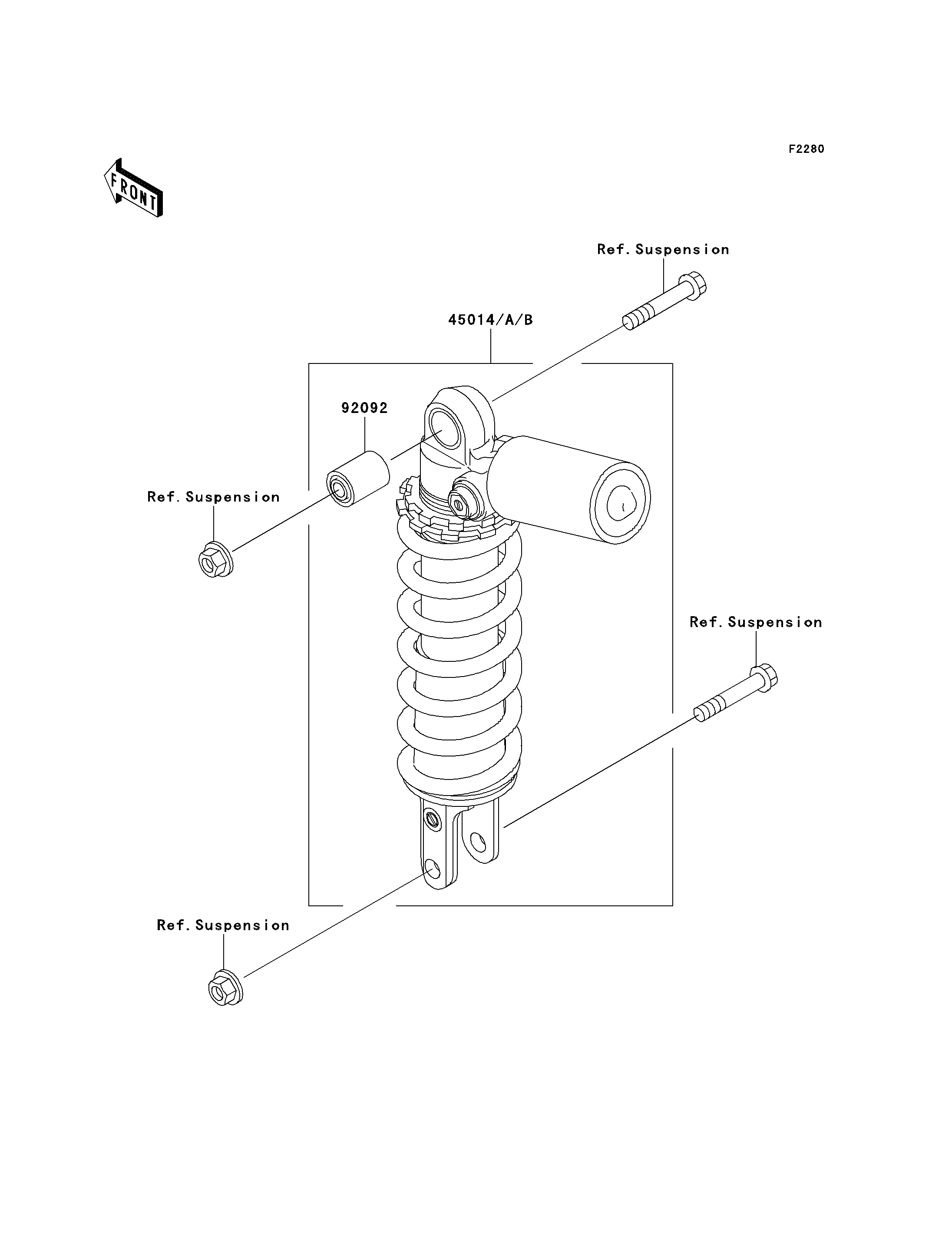

45014A
45014B
92092
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHOCKABSORBER 45014A 45014-1711 1 ( - JKAZX2C1 XA031068)
SHOCKABSORBER 45014B 45014-1726 1 (JKAZX2C1 XA031069 - )
BUSHING-RUBBER 92092 92092-1058 1
