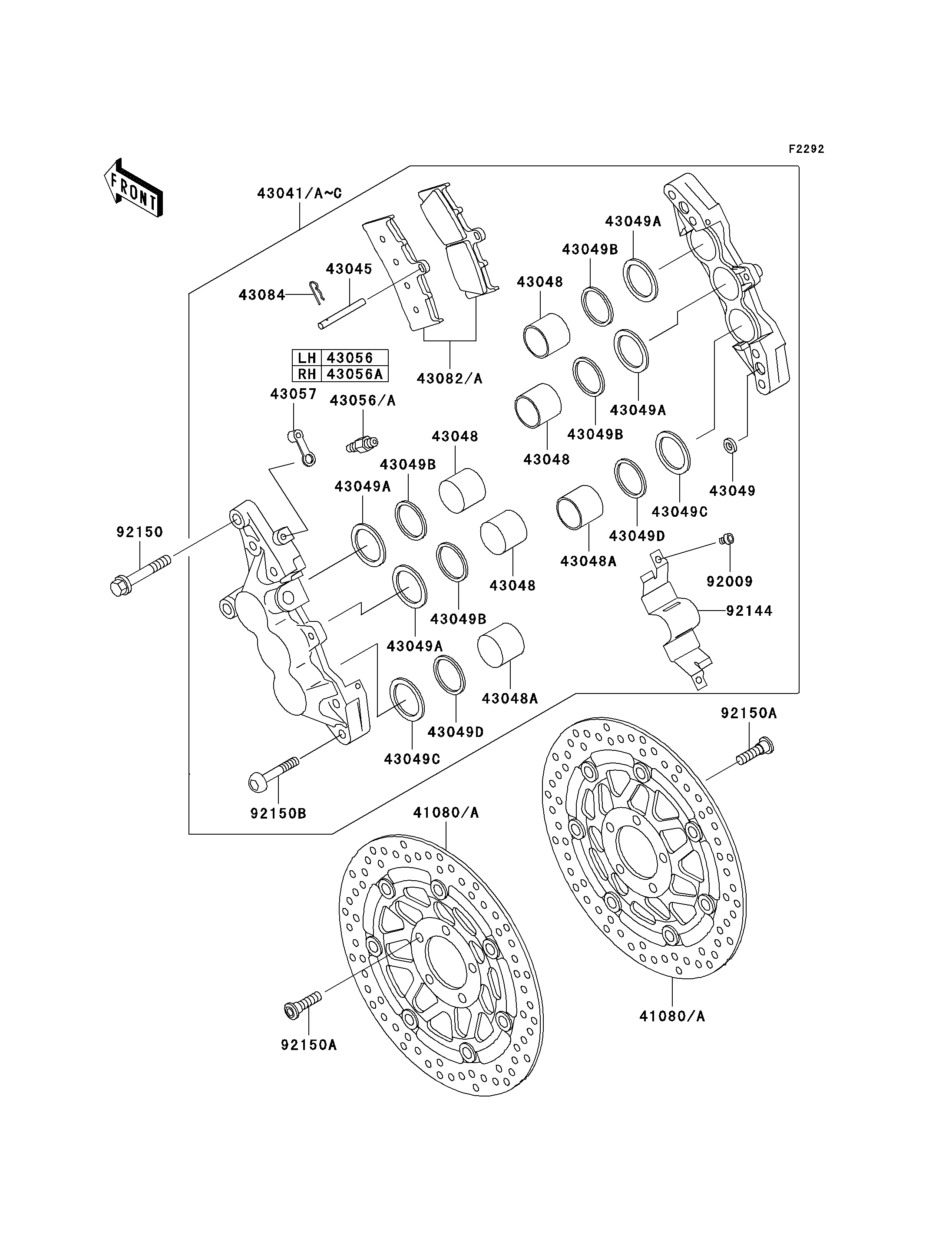

Parts Diagrams |
41080A
41080A
43041B
43041C
43045
43048
43048
43048
43048
43048A
43048A
43049
43049A
43049A
43049A
43049A
43049B
43049B
43049B
43049B
43049C
43049C
43049D
43049D
43056
43056A
43057
43082A
43084
92009
92144
92150
92150A
92150A
92150B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DISC,FR,GOLD+SILVER | 41080A | 41080-1463-A4 | 2 | ||
CALIPER-ASSY,FR,LH,BLACK | 43041B | 43041-1690 | 1 | ||
CALIPER-ASSY,FR,RH,BLACK | 43041C | 43041-1691 | 1 | ||
SHAFT-CALIPER | 43045 | 43045-007 | 2 | ||
PISTON-CALIPER | 43048 | 43048-1078 | 8 | ||
PISTON-CALIPER | 43048A | 43048-1079 | 4 | ||
PACKING,SEAL,6.5X11.5X2.2 | 43049 | 43049-1004 | 4 | ||
PACKING,PISTON SEAL | 43049A | 43049-1054 | 8 | ||
PACKING,PISTON | 43049B | 43049-1055 | 8 | ||
PACKING,PISTON | 43049C | 43049-1058 | 4 | ||
PACKING,PISTON | 43049D | 43049-1059 | 4 | ||
BREATHER | 43056 | 43056-003 | 1 | ||
BREATHER-BRAKE | 43056A | 43056-1056 | 1 | ||
CAP-BREATHER | 43057 | 43057-003 | 2 | ||
PAD-ASSY-BRAKE | 43082A | 43082-1230 | 2 | ||
CLAMP,PAD | 43084 | 43084-003 | 2 | ||
BOLT,SOCKET,4X6 | 92009 | 92009-1758 | 4 | ||
SPRING | 92144 | 92144-1903 | 2 | ||
BOLT,FLANGED,10X38 | 92150 | 92150-1297 | 4 | ||
BOLT,SOCKET,8X30 | 92150A | 92150-1771 | 10 | ||
BOLT,SOCKET,8X40 | 92150B | 92150-1973 | 8 |
DISC,FR,GOLD+SILVER | |
REF # | 41080A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CALIPER-ASSY,FR,LH,BLACK | |
REF # | 43041B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CALIPER-ASSY,FR,RH,BLACK | |
REF # | 43041C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-CALIPER | |
REF # | 43045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PISTON-CALIPER | |
REF # | 43048 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PISTON-CALIPER | |
REF # | 43048A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PACKING,SEAL,6.5X11.5X2.2 | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PACKING,PISTON SEAL | |
REF # | 43049A |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PACKING,PISTON | |
REF # | 43049B |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PACKING,PISTON | |
REF # | 43049C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PACKING,PISTON | |
REF # | 43049D |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BREATHER | |
REF # | 43056 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BREATHER-BRAKE | |
REF # | 43056A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BREATHER | |
REF # | 43057 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PAD-ASSY-BRAKE | |
REF # | 43082A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,PAD | |
REF # | 43084 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,4X6 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X38 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X30 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X40 | |
REF # | 92150B |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
