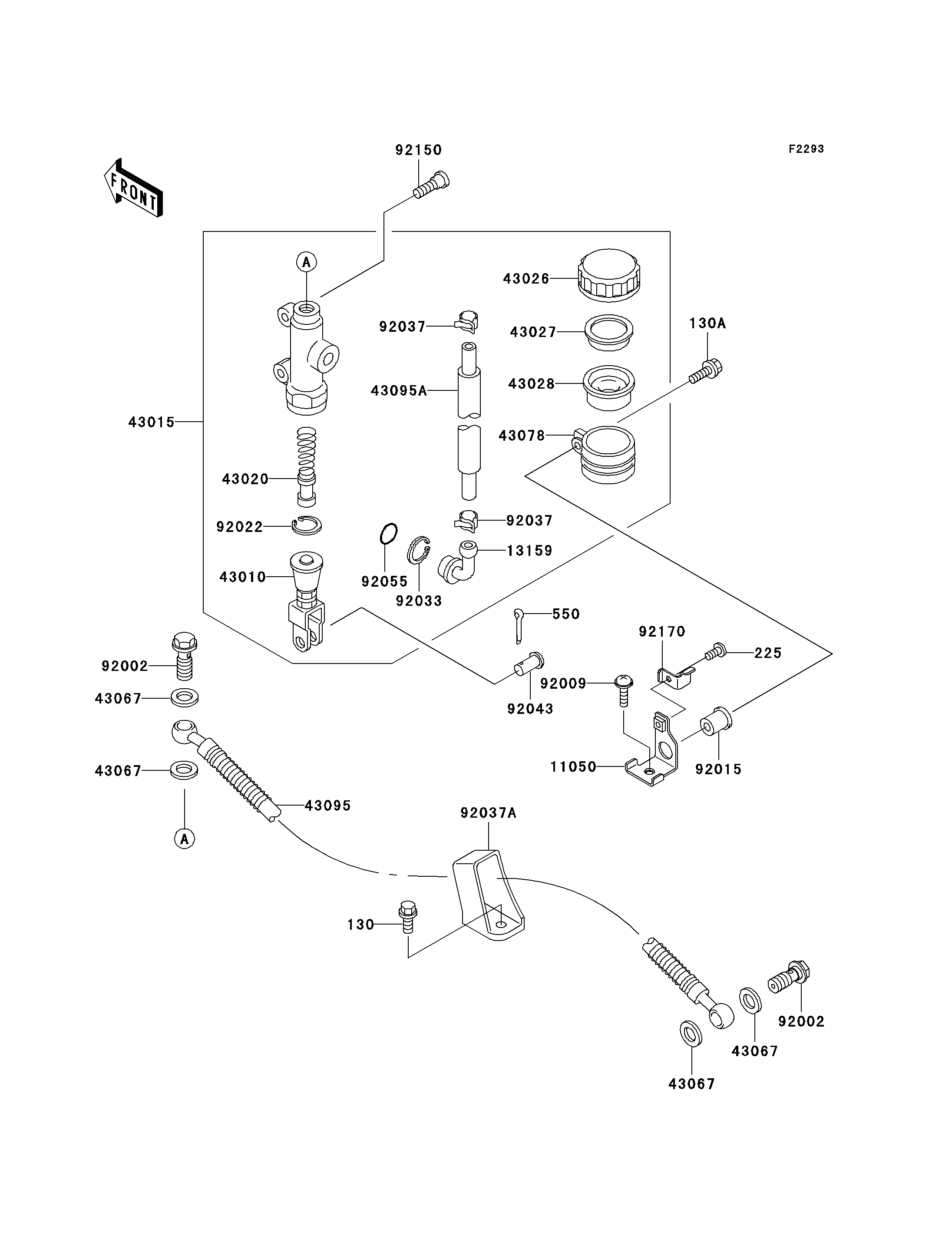

1999 Ninja® ZX™-9R - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
130A
225
550
11050
13159
43010
43015
43020
43026
43027
43028
43067
43067
43067
43067
43078
43095
43095A
92002
92002
92009
92015
92022
92033
92037
92037
92037A
92043
92055
92150
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0610 1
BOLT-FLANGED,6X25 130A 130J0625 1
SCREW-PAN-WSP-CROS 225 225C0412 1
PIN-COTTER,2.0X15 550 550D2015 1
BRACKET,RESERVE TANK 11050 11050-1768 1
CONNECTOR,RR MASTER CYLINDER 13159 13159-1052 1
ROD-ASSY-BRAKE 43010 43010-1062 1
CYLINDER-ASSY-MASTER,RR 43015 43015-1610 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR,RR MASTER CYLINDER 43078 43078-1082 1
HOSE-BRAKE,RR 43095 43095-1109 1
HOSE-BRAKE,RR MASTER CYLINDER 43095A 43095-1115 1
BOLT,OIL,L=23 92002 92002-1888 2
SCREW,6X14 92009 92009-1288 1
NUT 92015 92015-1700 1
WASHER,CIRCRIP 92022 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP,BRAKE HOSE 92037 92037-1547 2
CLAMP,HOSE 92037A 92037-1896 1
PIN,8MM 92043 92043-1303 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,SOCKET,8X30 92150 92150-1843 2
CLAMP,RESERVE TANK CAP 92170 92170-1879 1
