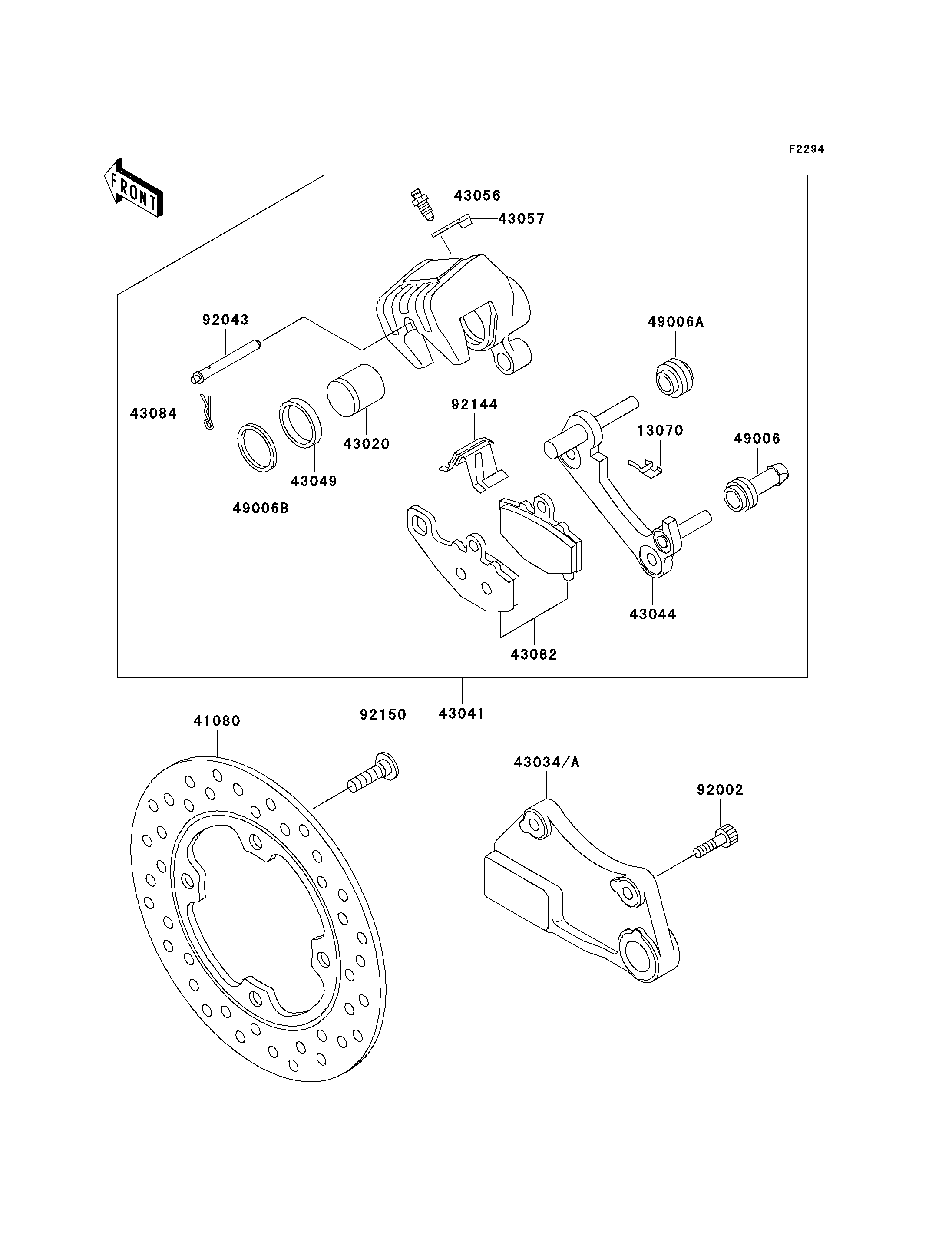

1999 Ninja® ZX™-9R - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
13070
41080
43020
43034A
43041
43044
43049
43056
43057
43082
43084
49006
49006A
49006B
92002
92043
92144
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE 13070 13070-1273 1
DISC,RR,GOLD 41080 41080-1443-CL 1
PISTON-COMP-BRAKE 43020 43020-1119 1
HOLDER-BRAKE,REAR CALIPER 43034A 43034-1149 1
CALIPER-ASSY,RR 43041 43041-1662 1
HOLDER-COMP-CALIPER,RR 43044 43044-1110 1
PACKING,PISTON SEAL 43049 43049-001 1
BREATHER-BRAKE 43056 43056-1054 1
CAP-BREATHER 43057 43057-003 1
PAD-ASSY-BRAKE 43082 43082-1213 1
CLAMP,PAD 43084 43084-003 1
BOOT,CALIPER 49006 49006-1054 1
BOOT,CALIPER 49006A 49006-1095 1
BOOT,PISTON SEAL 49006B 49006-1212 1
BOLT,SOCKET,8X20 92002 92002-1178 2
PIN,PAD 92043 92043-1489 1
SPRING,PAD 92144 92144-1719 1
BOLT,SOCKET,8X30 92150 92150-1771 4
