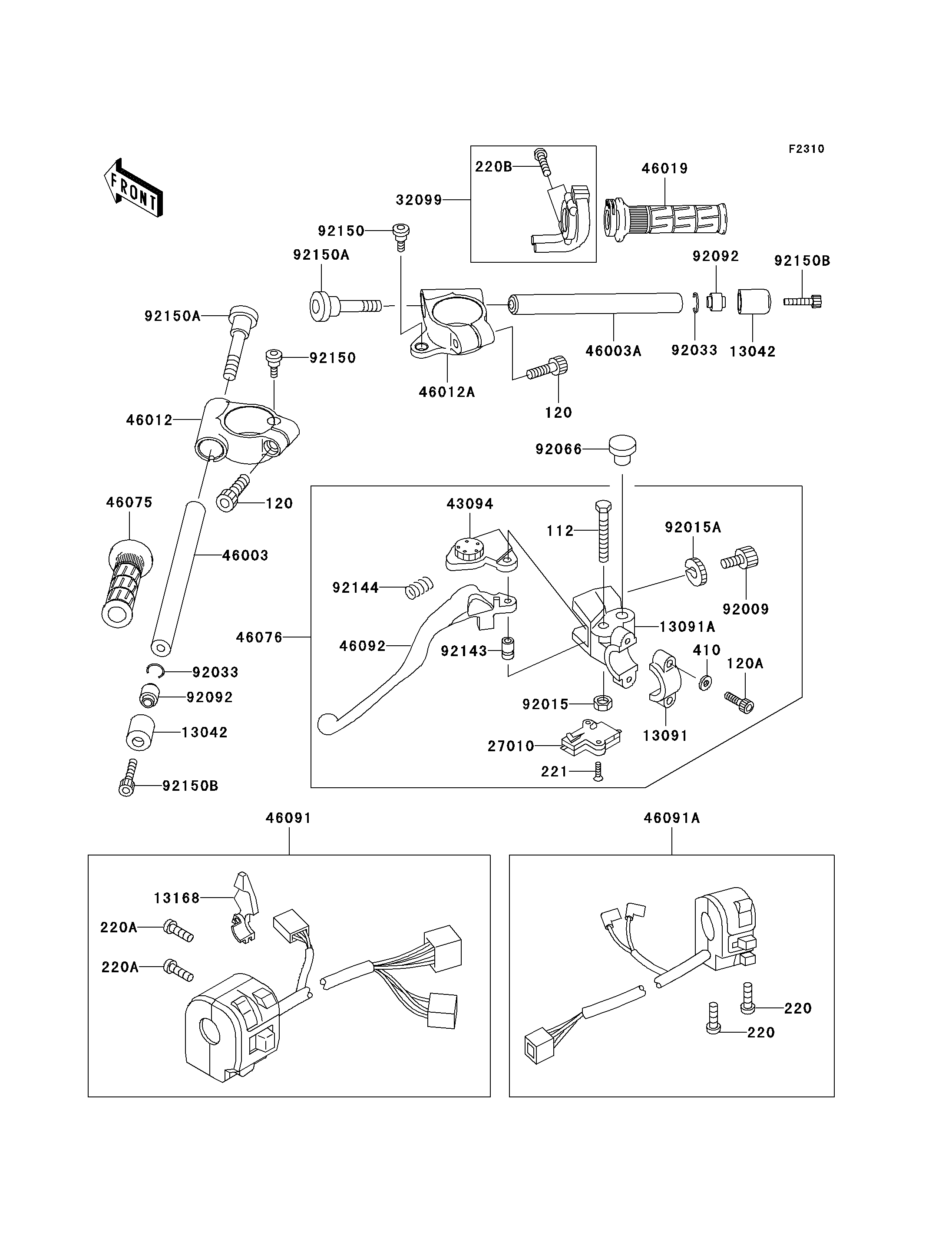

1999 Ninja® ZX™-9R - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
112
120
120
120A
220
220
220A
220A
220B
221
410
13042
13042
13091
13091A
13168
27010
32099
43094
46003
46003A
46012
46012A
46019
46075
46076
46091
46091A
46092
92009
92015
92015A
92033
92033
92066
92092
92092
92143
92144
92150
92150
92150A
92150A
92150B
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112C0640 1
BOLT-SOCKET,8X30 120 120P0830 2
BOLT-SOCKET,6X20 120A 120S0620 2
SCREW-PAN-CROS 220 220C0522 2
SCREW-PAN-CROS 220A 220C0525 2
SCREW-PAN-CROS 220B 220C0535 2
SCREW-CSK-CROS 221 221C0316 2
WASHER-PLAIN-SMALL,6MM,BLACK 410 410F0600 2
WEIGHT,HANDLE 13042 13042-1133 2
HOLDER,CLUTCH LEVER 13091 13091-1624 1
HOLDER,CLUTCH LEVER 13091A 13091-1652 1
LEVER,CHOKE 13168 13168-1516 1
SWITCH,CLUTCH,BLACK 27010 27010-1094 1
CASE,THROTTLE CABLE 32099 32099-1193 1
ADJUSTER,CLUTCH LEVER 43094 43094-1053 1
HANDLE,LH 46003 46003-1388 1
HANDLE,RH 46003A 46003-1499 1
HOLDER-HANDLE,LH 46012 46012-1278 1
HOLDER-HANDLE,RH 46012A 46012-1279 1
GRIP-ASSY,THROTTLE 46019 46019-1095 1
GRIP,LH 46075 46075-1144 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-1180 1
HOUSING-ASSY-CONTROL,LH 46091 46091-1716 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-1728 1
LEVER-GRIP,CLUTCH 46092 46092-1162 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015A 92015-1197 1
RING-SNAP,OD=22.2 92033 92033-1102 2
PLUG,9.5X8,POLYETHYLENE 92066 92066-1077 1
BUSHING-RUBBER,HANDLE 92092 92092-1075 2
COLLAR 92143 92143-1379 1
SPRING 92144 92144-1467 1
BOLT,6MM 92150 92150-1090 2
BOLT,SOCKET,10X37 92150A 92150-1469 2
BOLT,SOCKET,8X30 92150B 92150-1604 2
