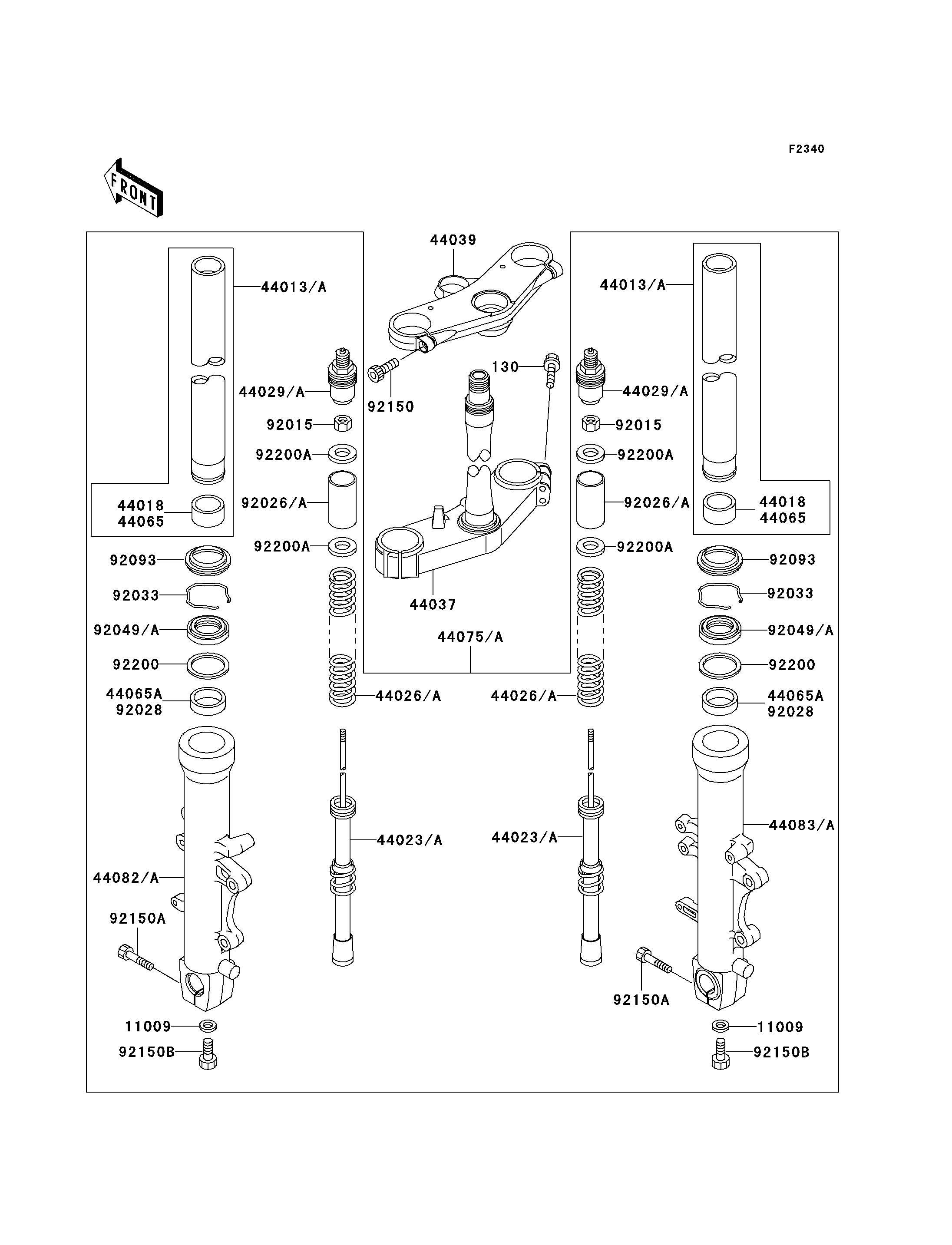

1999 Ninja® ZX™-9R - Front Fork(-JKAZX2C1 XA031068)
130
11009
11009
44013A
44013A
44023A
44023A
44026A
44026A
44029A
44029A
44037
44039
44065
44065
44065A
44065A
44075A
44082A
44083A
92015
92015
92026A
92026A
92033
92033
92049A
92049A
92093
92093
92150
92150A
92150A
92150B
92150B
92200
92200
92200A
92200A
92200A
92200A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,8X40 | 130 | 130J0840 | 4 | ||
GASKET,FORK CYLINDER BOLT | 11009 | 11009-1127 | 2 | ||
PIPE-FORK INNER | 44013A | 44013-1463 | 2 | ||
CYLINDER-SET-FORK | 44023A | 44023-1134 | 2 | ||
SPRING-FRONT FORK | 44026A | 44026-1694 | 2 | ||
SEAT-FORK SPRING | 44029A | 44029-1165 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-1365 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-1277 | 1 | ||
BUSHING-FRONT FORK | 44065 | 44065-1129 | 2 | ||
BUSHING-FRONT FORK | 44065A | 44065-1130 | 2 | ||
DAMPER-SET-FORK | 44075A | 44075-1098 | 1 | ||
PIPE-COMP-LEFT FORK OUT | 44082A | 44082-1058 | 1 | ||
PIPE-COMP-RIGHT FORK OUT | 44083A | 44083-1057 | 1 | ||
NUT | 92015 | 92015-1905 | 2 | ||
SPACER,FORK,L=120 | 92026A | 92026-1519 | 2 | ||
RING-SNAP | 92033 | 92033-1264 | 2 | ||
SEAL-OIL | 92049A | 92049-1508 | 2 | ||
SEAL,FORK OUTER TUBE | 92093 | 92093-1473 | 2 | ||
BOLT,SOCKET,8X25 | 92150 | 92150-1172 | 2 | ||
BOLT,SOCKET,8X40 | 92150A | 92150-1194 | 4 | ||
BOLT,12X22 | 92150B | 92150-1398 | 2 | ||
WASHER | 92200 | 92200-1006 | 2 | ||
WASHER | 92200A | 92200-1420 | 4 |
