130
32046
32046A
53001
53001A
53003
53003A

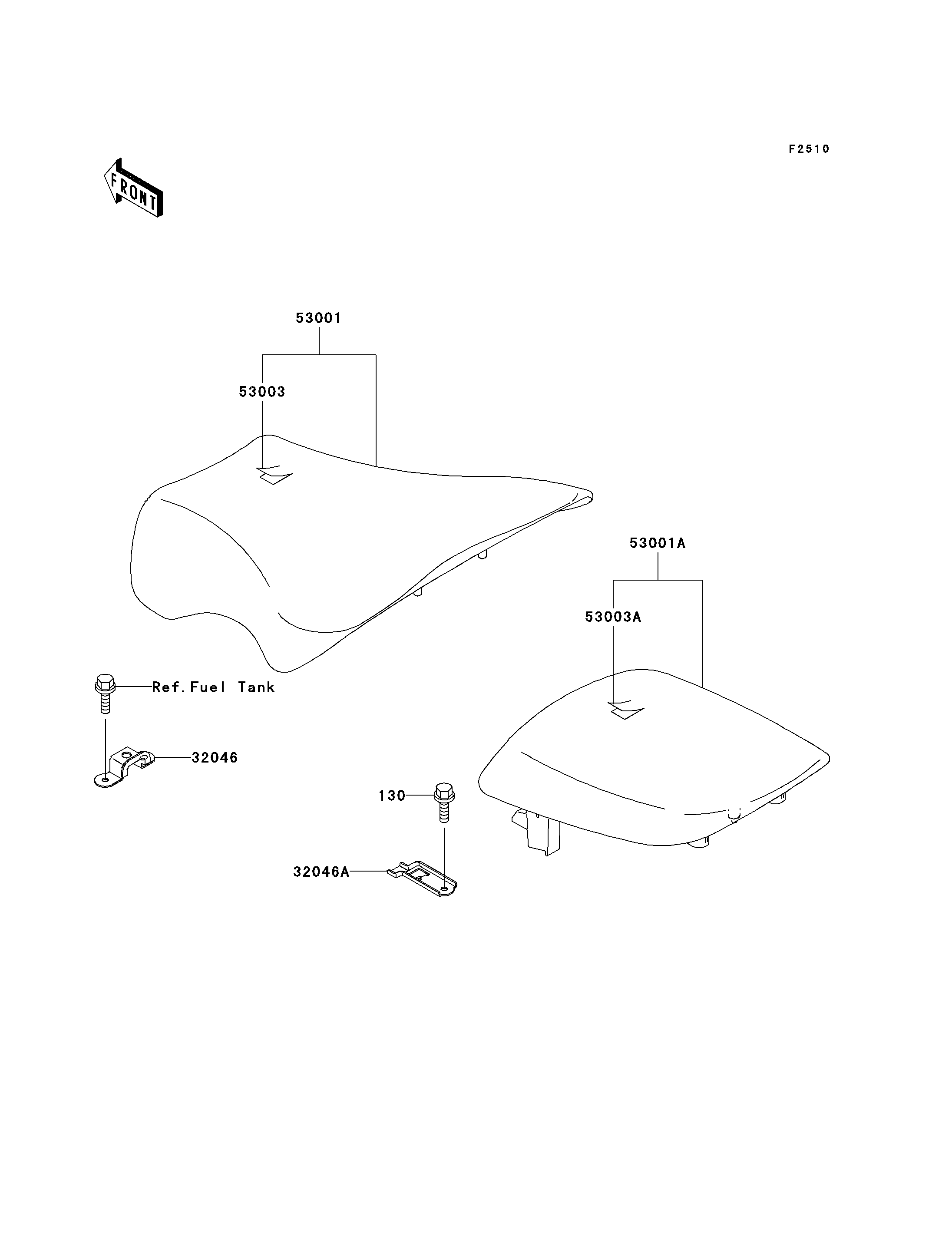

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0610 1
BRACKET-SEAT,FR 32046 32046-1436 1
BRACKET-SEAT,RR 32046A 32046-1437 1
SEAT-ASSY,FR,BLACK 53001 53001-1852-MA 1
SEAT-ASSY,RR,BLACK 53001A 53001-1853-MA 1
LEATHER,FRONT SEAT,BLACK 53003 53003-1400-MA 1
LEATHER,REAR SEAT,BLACK 53003A 53003-1401-MA 1
