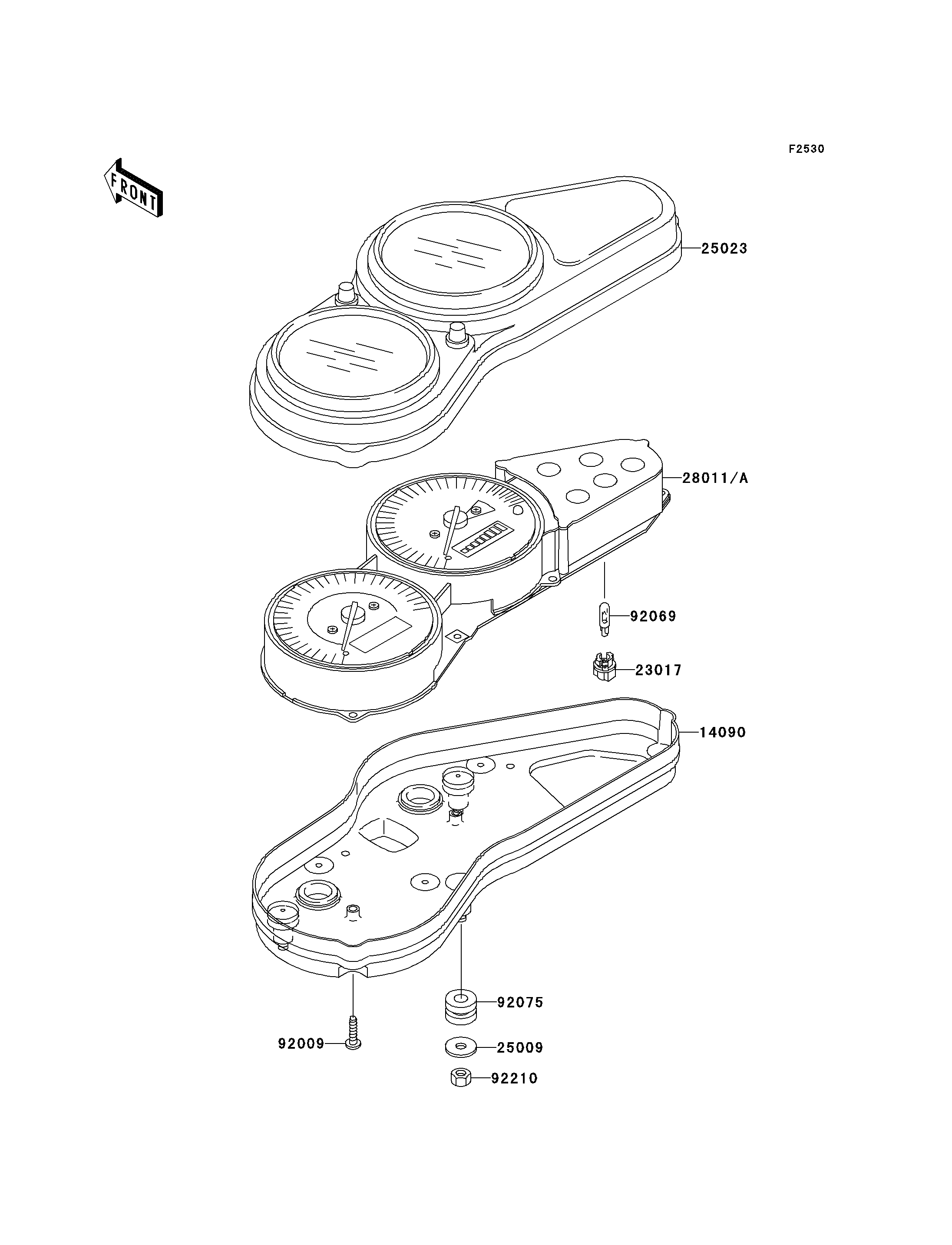

14090
23017
25009
25023
92009
92069
92075
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,METER HOUSING 14090 14090-1872 1
SOCKET,WEDGE BASE,T-5 23017 23017-1063 7
WASHER,5.2X16X1.2 25009 25009-004 3
COVER-METER CASE,UPP 25023 25023-1233 1
SCREW,4X16,BLACK 92009 92009-1158 6
BULB,T-5.12V 2W 92069 92069-1105 7
DAMPER,METER BRACKET 92075 92075-1435 3
NUT,5MM 92210 92210-1124 3
METER,SPEED&TACHO,MPH 28011 28011-1169 1 CAUS
METER,SPEED&TACHO,KPH 28011A 28011-1170 1 CN
